Parts Location [06/2012 - ]: Illustration

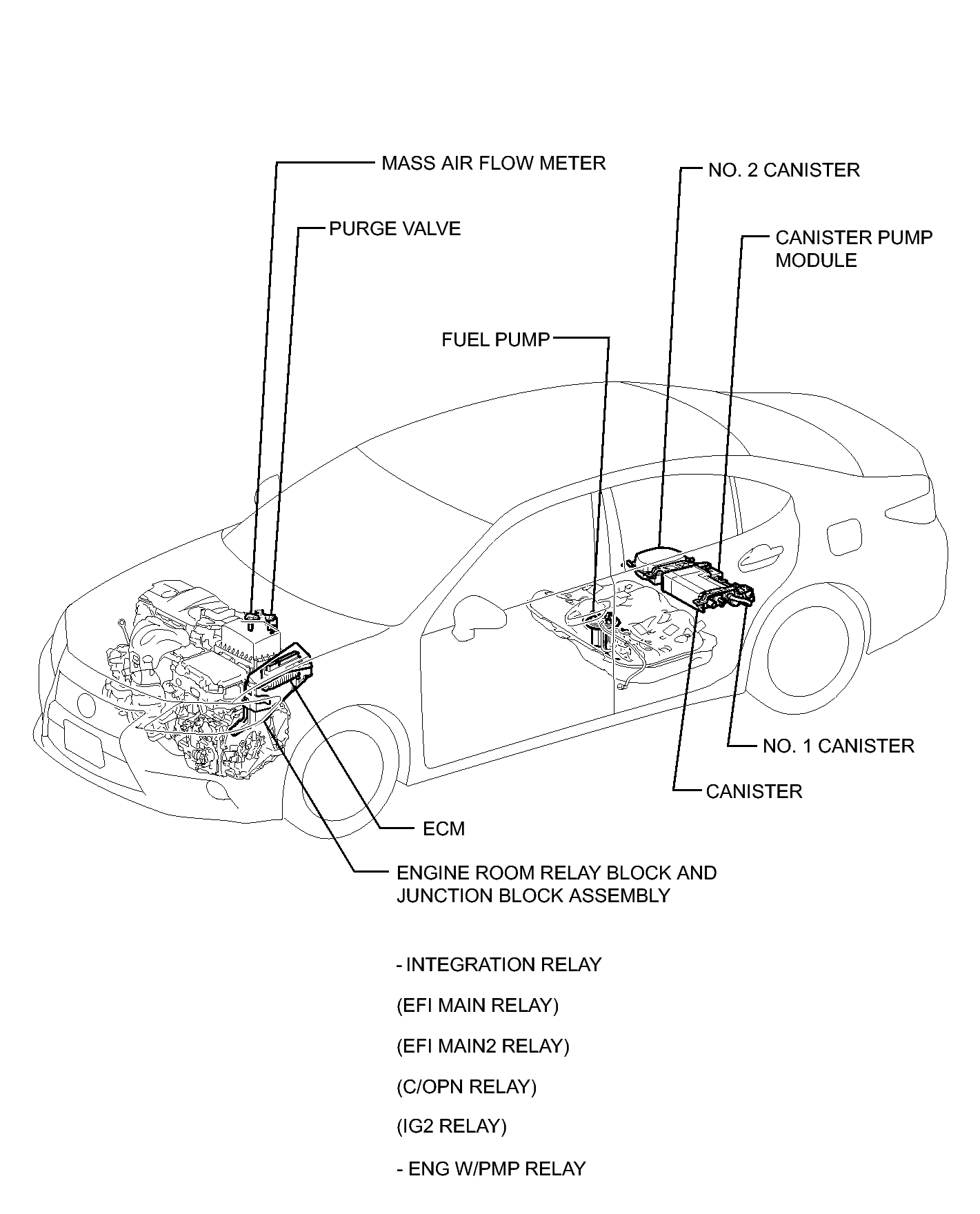

Fig 1: Identifying SFI System Components Location (1 Of 4)
GTY408153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

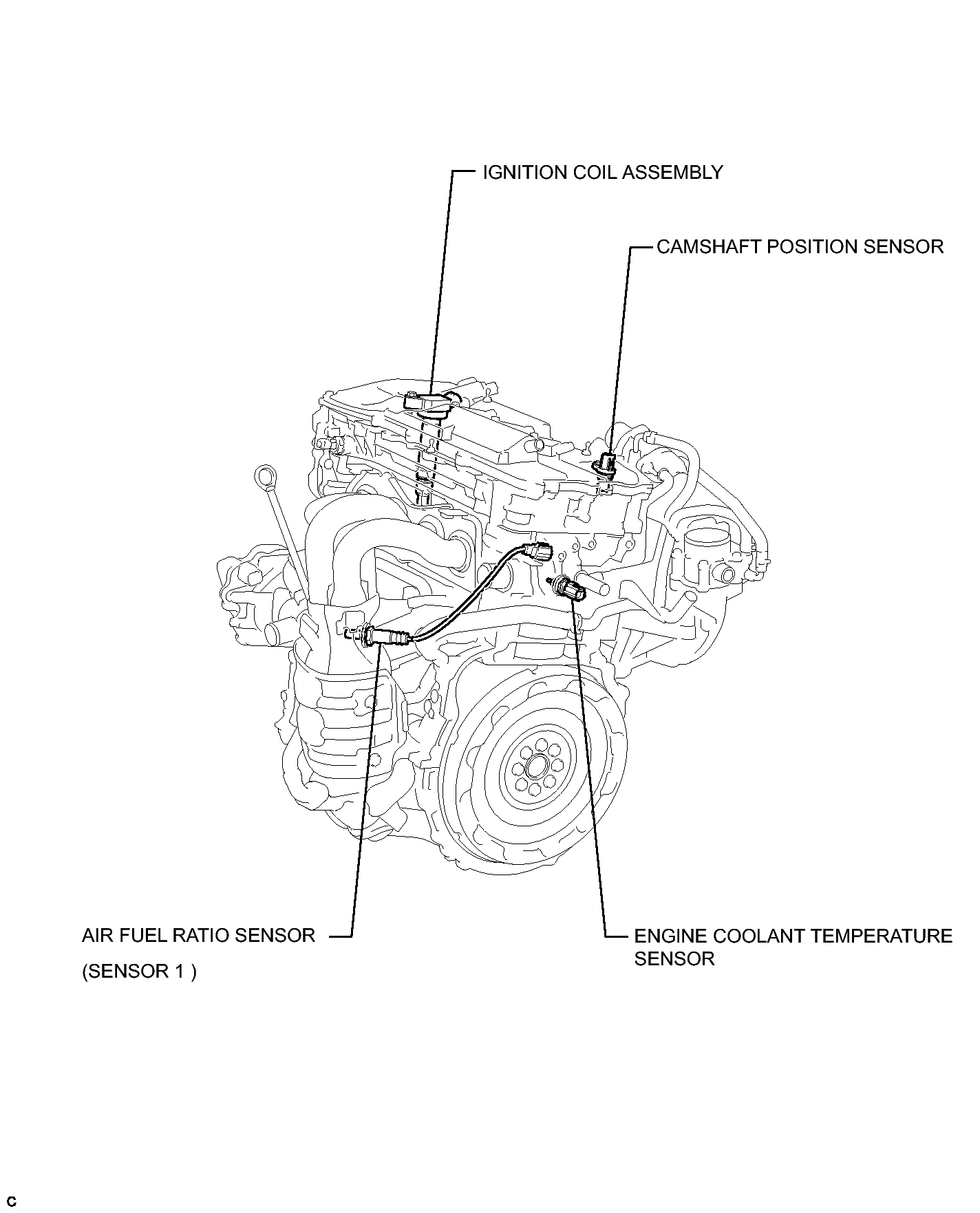

Fig 1: Identifying SFI System Components Location (2 Of 4)
GTY322705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

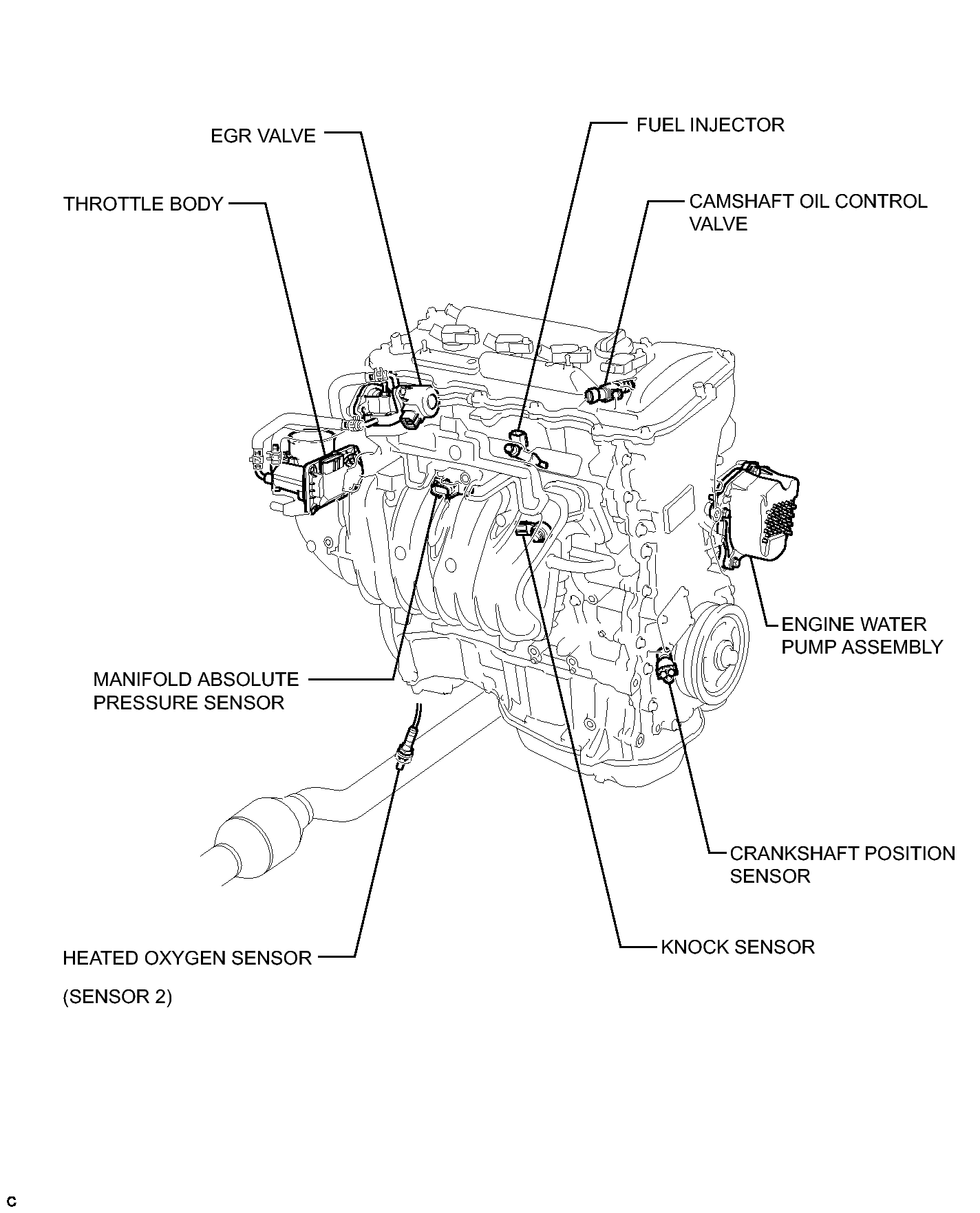

Fig 1: Identifying SFI System Components Location (3 Of 4)
GTY322894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

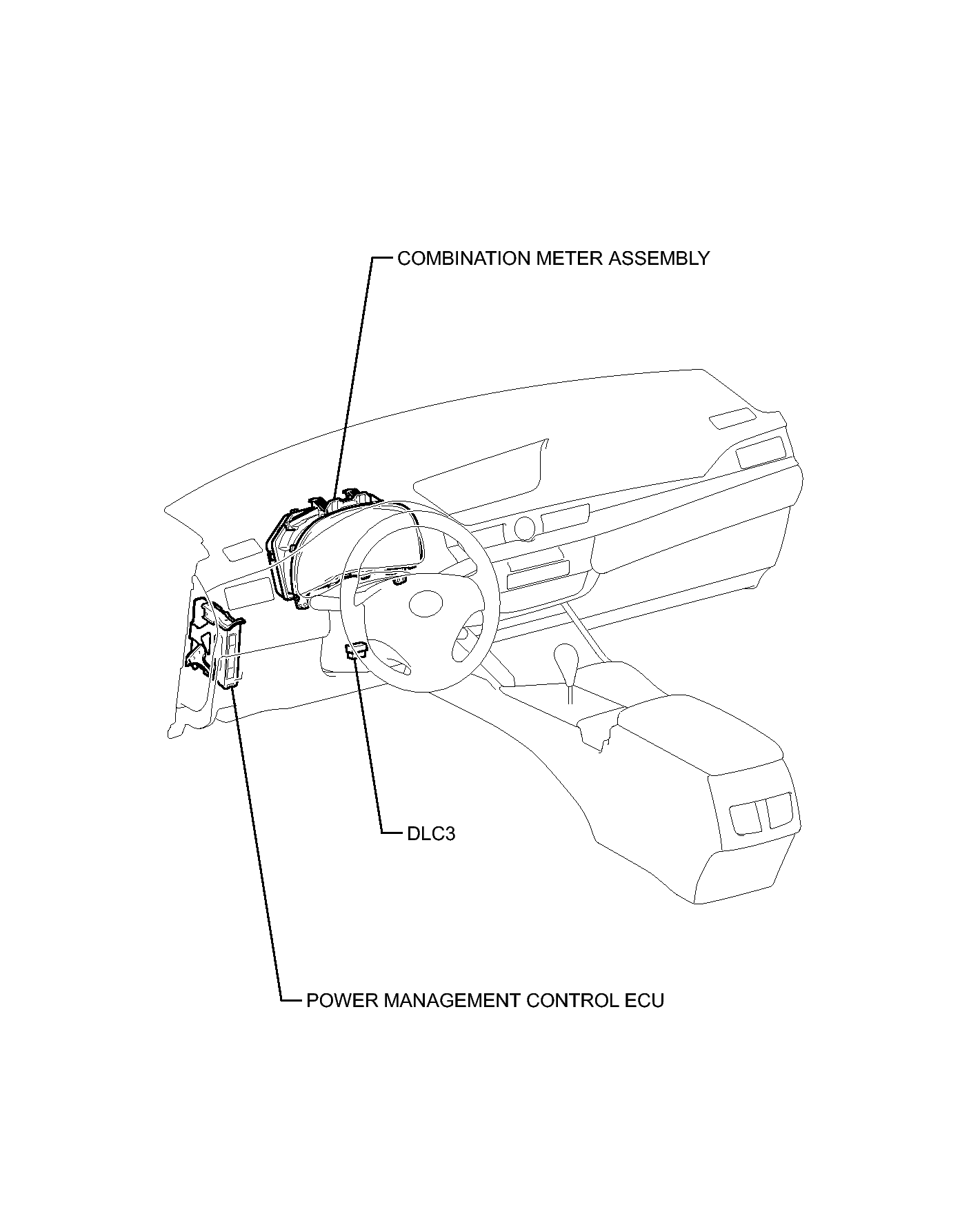

Fig 1: Identifying SFI System Components Location (4 Of 4)
GTY417974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
