Components [08/2012 - ]: Illustration

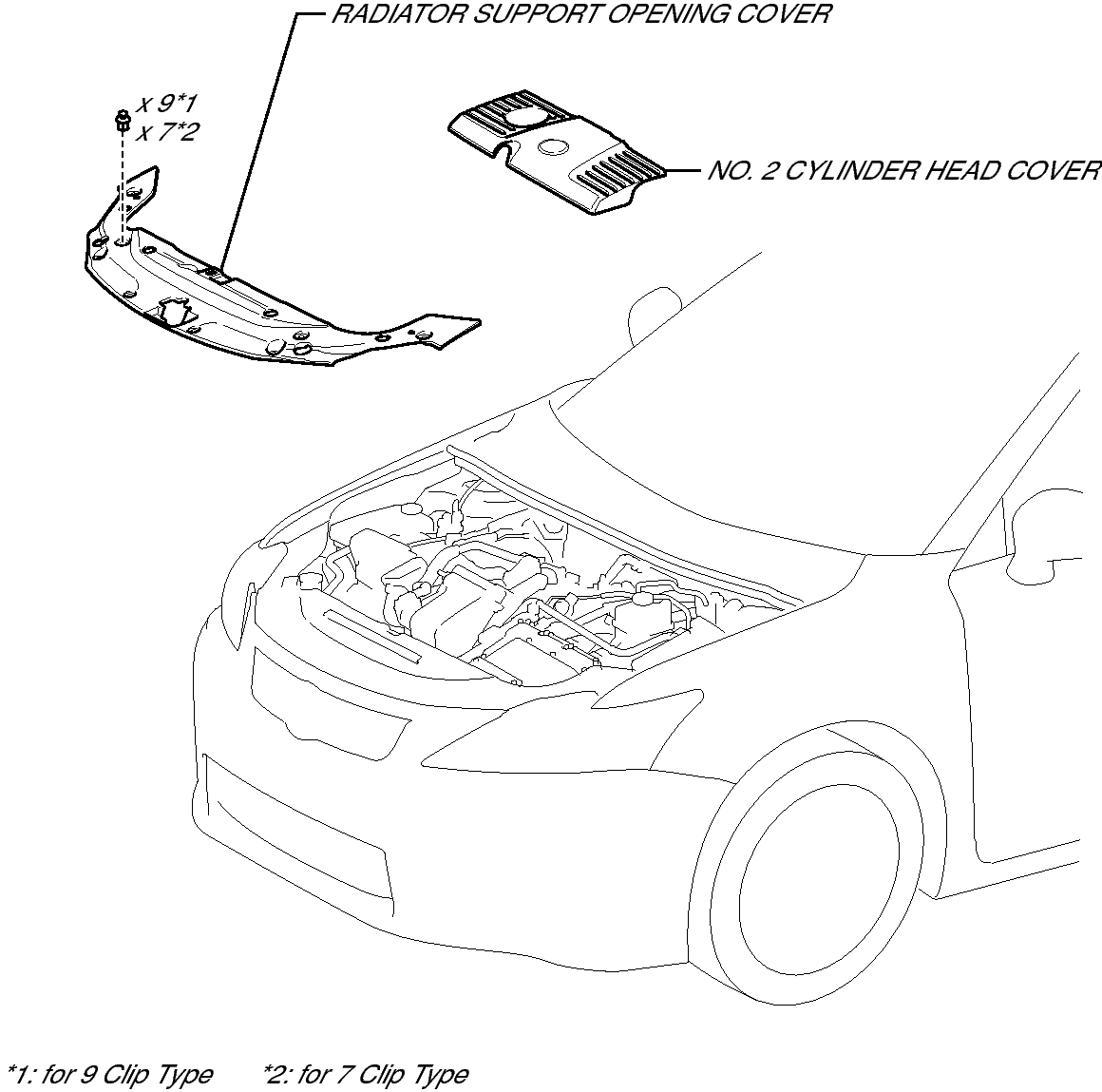

Fig 1: Identifying Throttle Body Replacement Components (1 Of 3)
GTY396633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


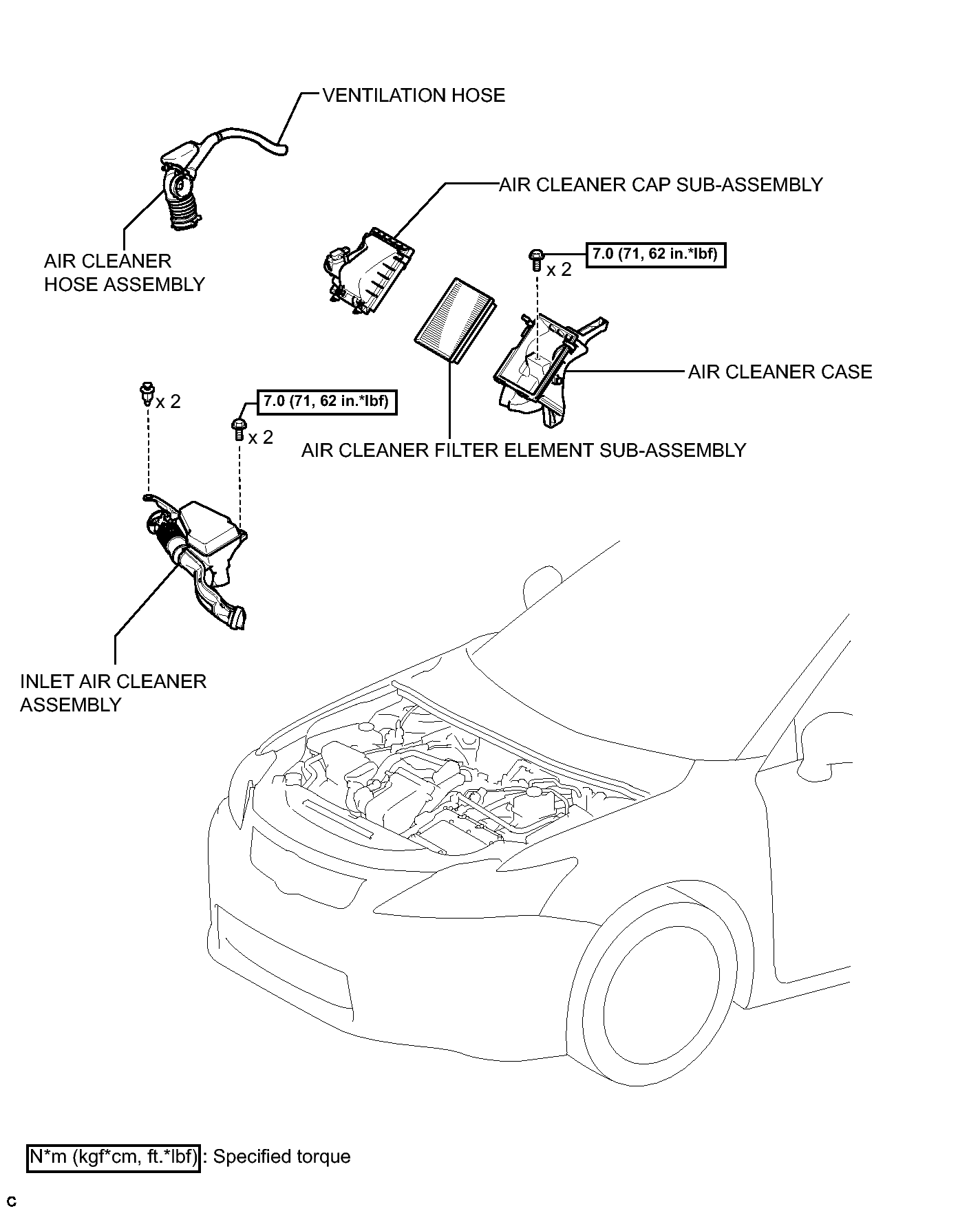

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (2 Of 3)
GTY406575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (3 Of 3)
GTY375457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
