Front Wiper and Washer (w/o Auto Wiper System): Notes

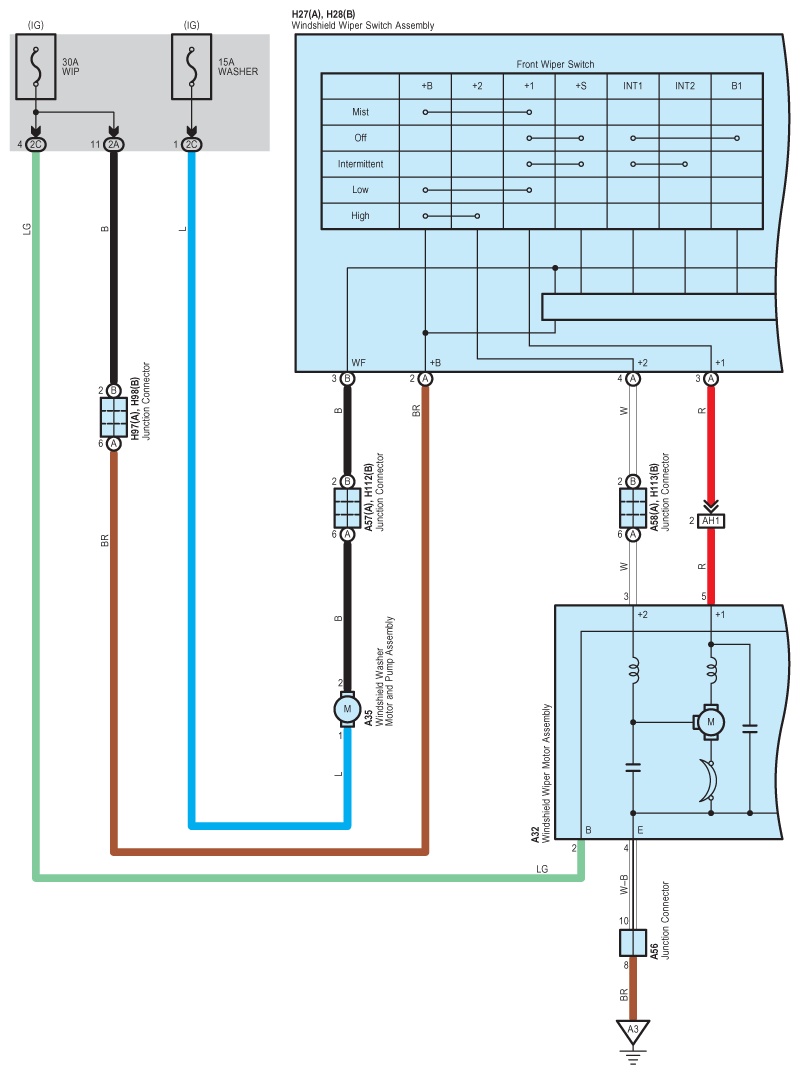

Fig 1: Front Wiper And Washer W/O Auto Wiper System Wiring Diagram (1 Of 2)
G09113737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

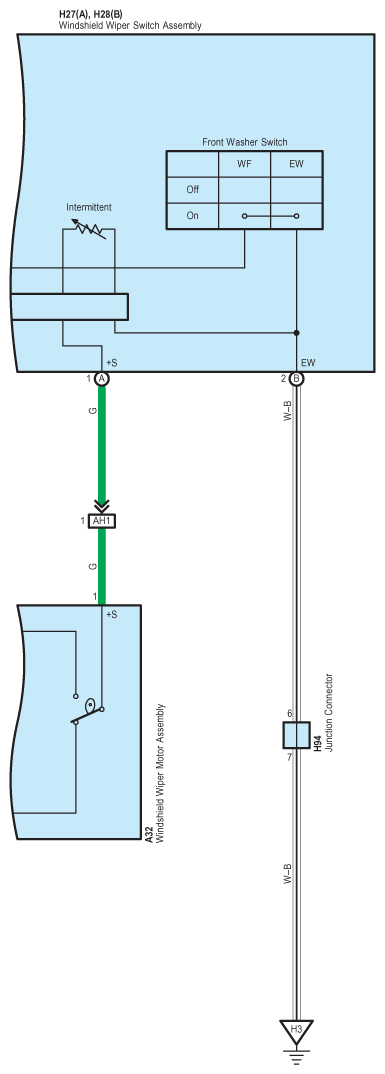

Fig 2: Front Wiper And Washer W/O Auto Wiper System Wiring Diagram (2 Of 2)
G09113738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
