Front Wiper and Washer (w/Auto Wiper System): Notes

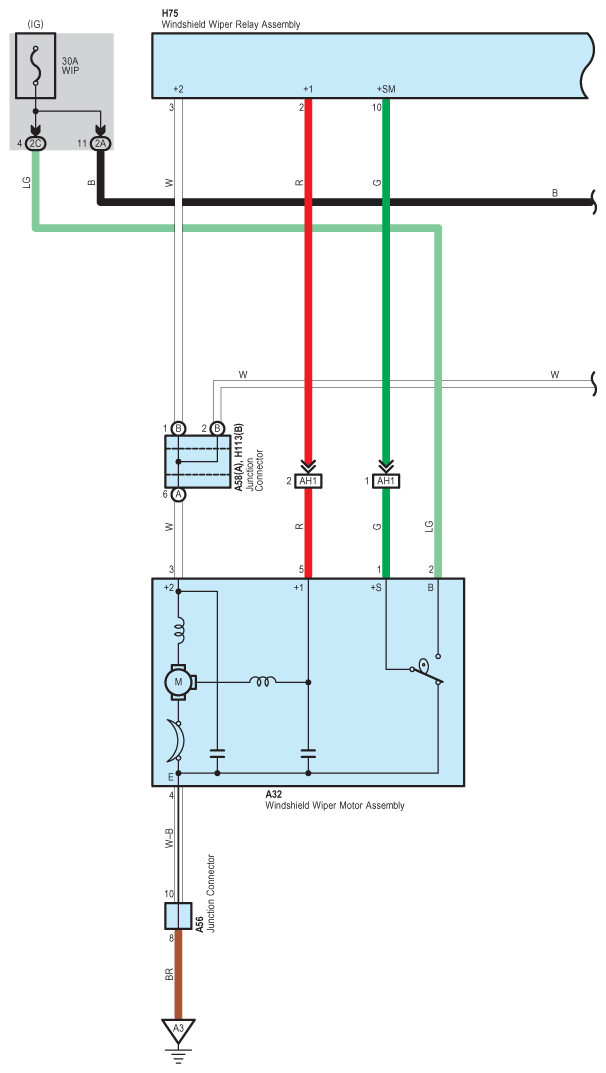

Fig 1: Front Wiper And Washer W/Auto Wiper System Wiring Diagram (1 Of 4)
G09113733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

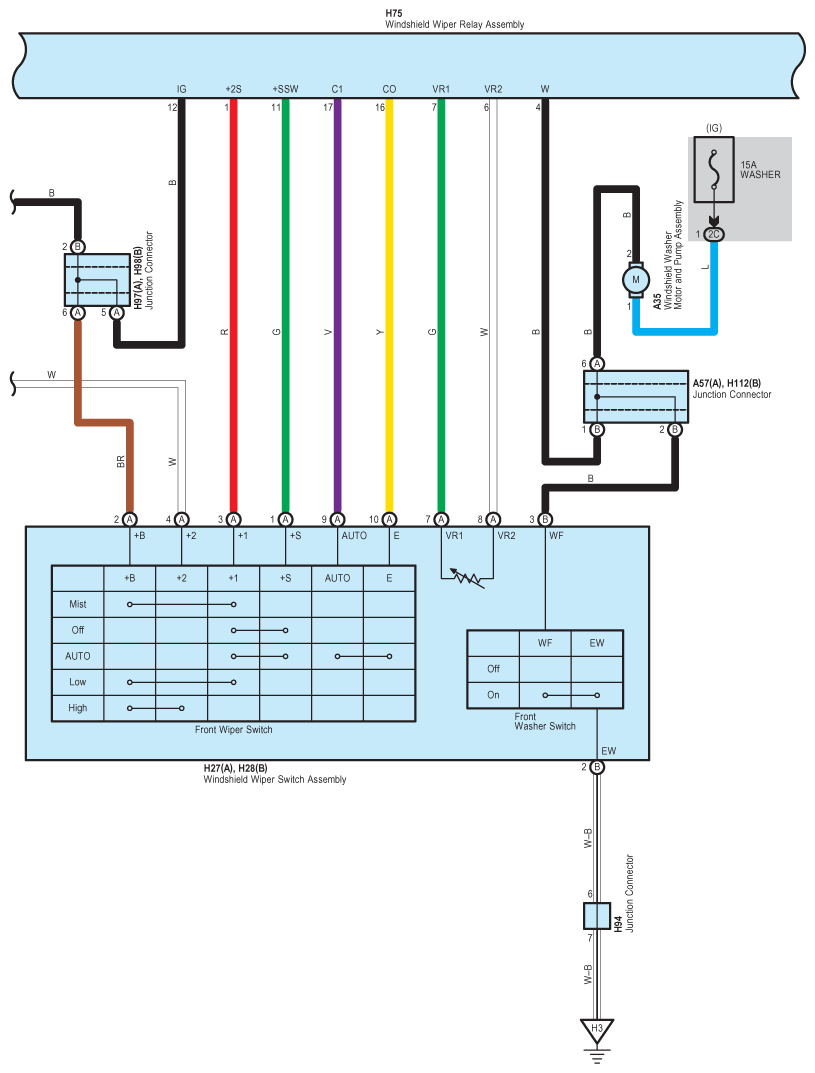

Fig 2: Front Wiper And Washer W/Auto Wiper System Wiring Diagram (2 Of 4)
G09113734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

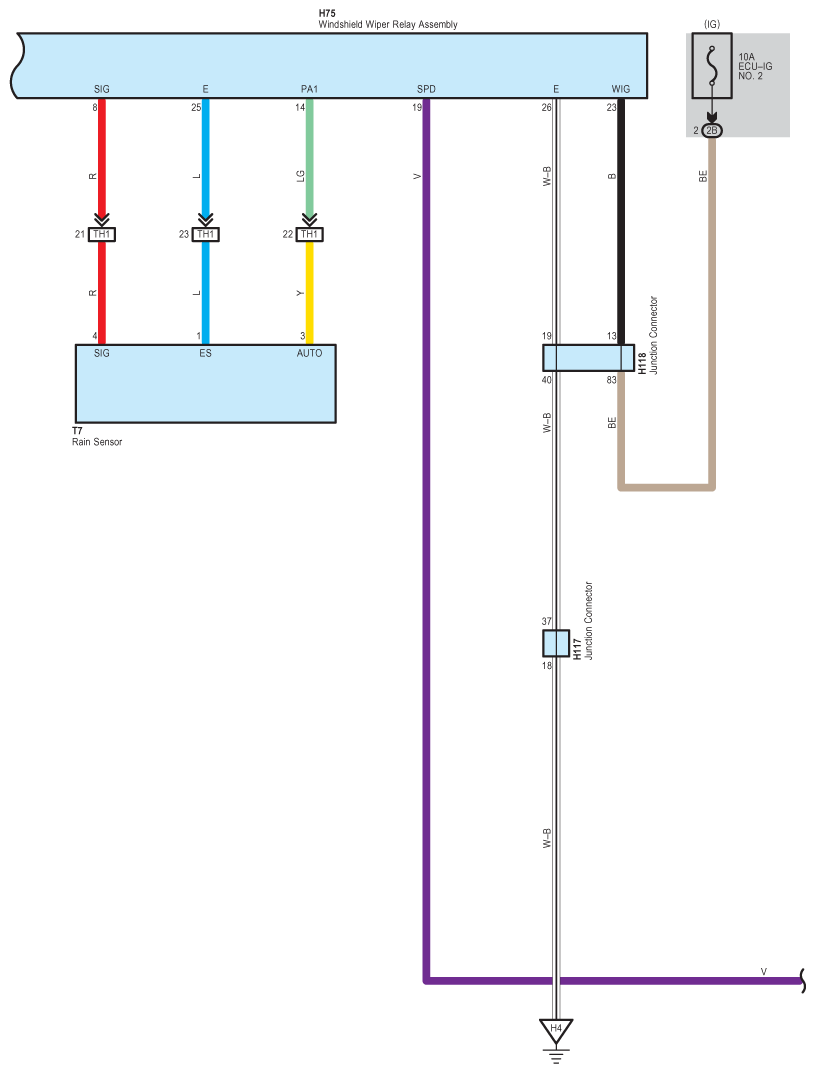

Fig 3: Front Wiper And Washer W/Auto Wiper System Wiring Diagram (3 Of 4)
G09113735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

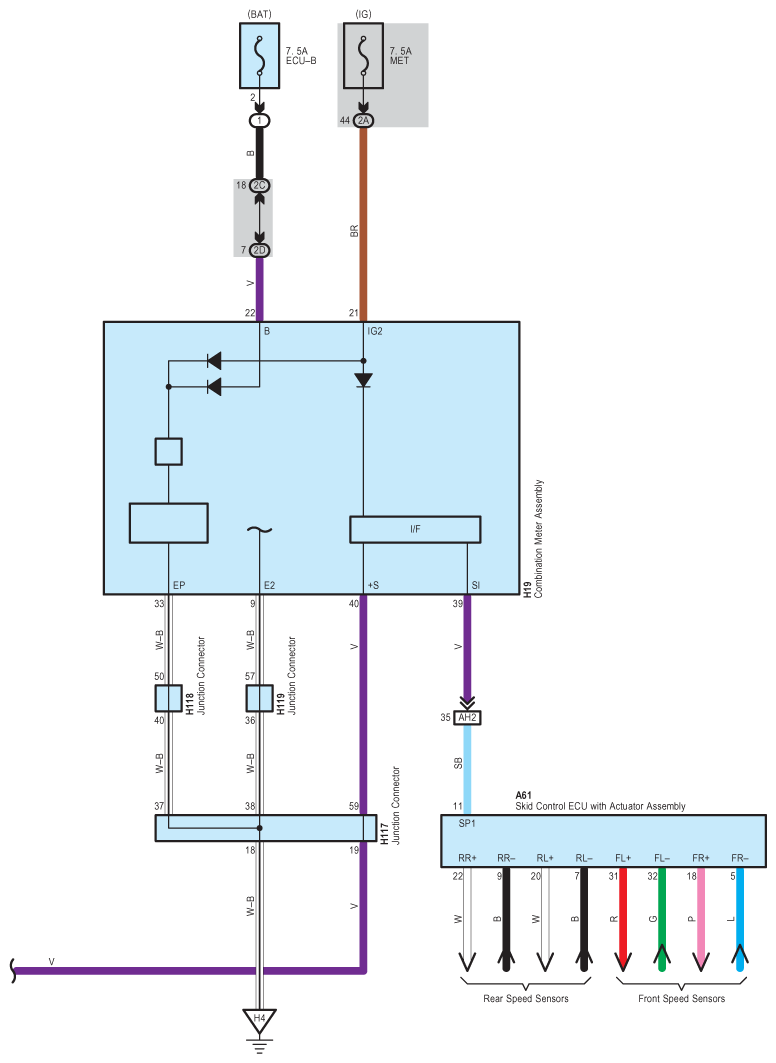

Fig 4: Front Wiper And Washer W/Auto Wiper System Wiring Diagram (4 Of 4)
G09113736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
