Front Passenger Side Power Window Switch: Inspection: Inspection
- INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY
- Check the switch function.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

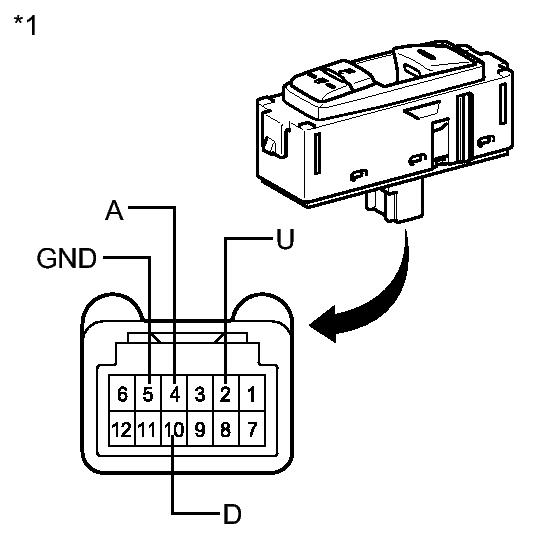

Tester Connection Switch Condition Specified Condition 2 (U) - 5 (GND) Auto up or up position Below 1 Ω 4 (A) - 5 (GND) Auto up or auto down position Below 1 Ω 10 (D) - 5 (GND) Auto down or down position Below 1 Ω 2 (U) - 5 (GND) Free 10 kΩ or higher 4 (A) - 5 (GND) Free 10 kΩ or higher 10 (D) - 5 (GND) Free 10 kΩ or higher TEXT IN ILLUSTRATION*1 Component without harness connected
(to Power Window Regulator Switch Assembly (for Front Passenger Side))If the result is not as specified, replace the power window regulator switch assembly (for front passenger side).
- Measure the resistance according to the value(s) in the table below.
- Check that the LED illuminates.
- Apply battery voltage to the power window regulator switch assembly and check that the LED illuminates.
OK

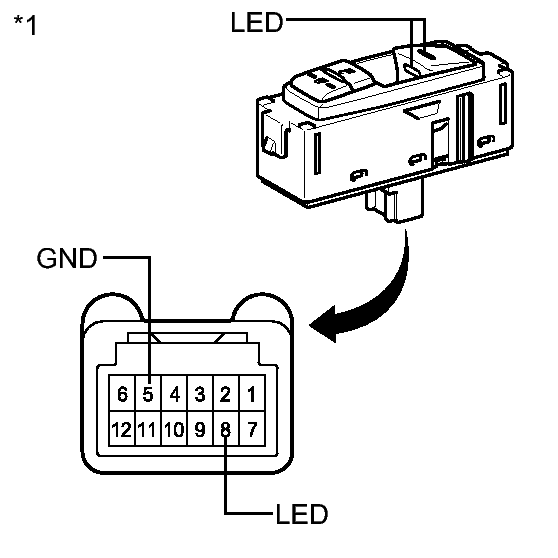

Measurement Condition Specified Condition Battery positive (+) → 8 (LED)
Battery negative (-) → 5 (GND)LED illuminates TEXT IN ILLUSTRATION*1 Component without harness connected
(to Power Window Regulator Switch Assembly (for Front Passenger Side))If the result is not as specified, replace the power window regulator switch assembly (for front passenger side).
- Apply battery voltage to the power window regulator switch assembly and check that the LED illuminates.
- Check the switch function.
