System Diagram

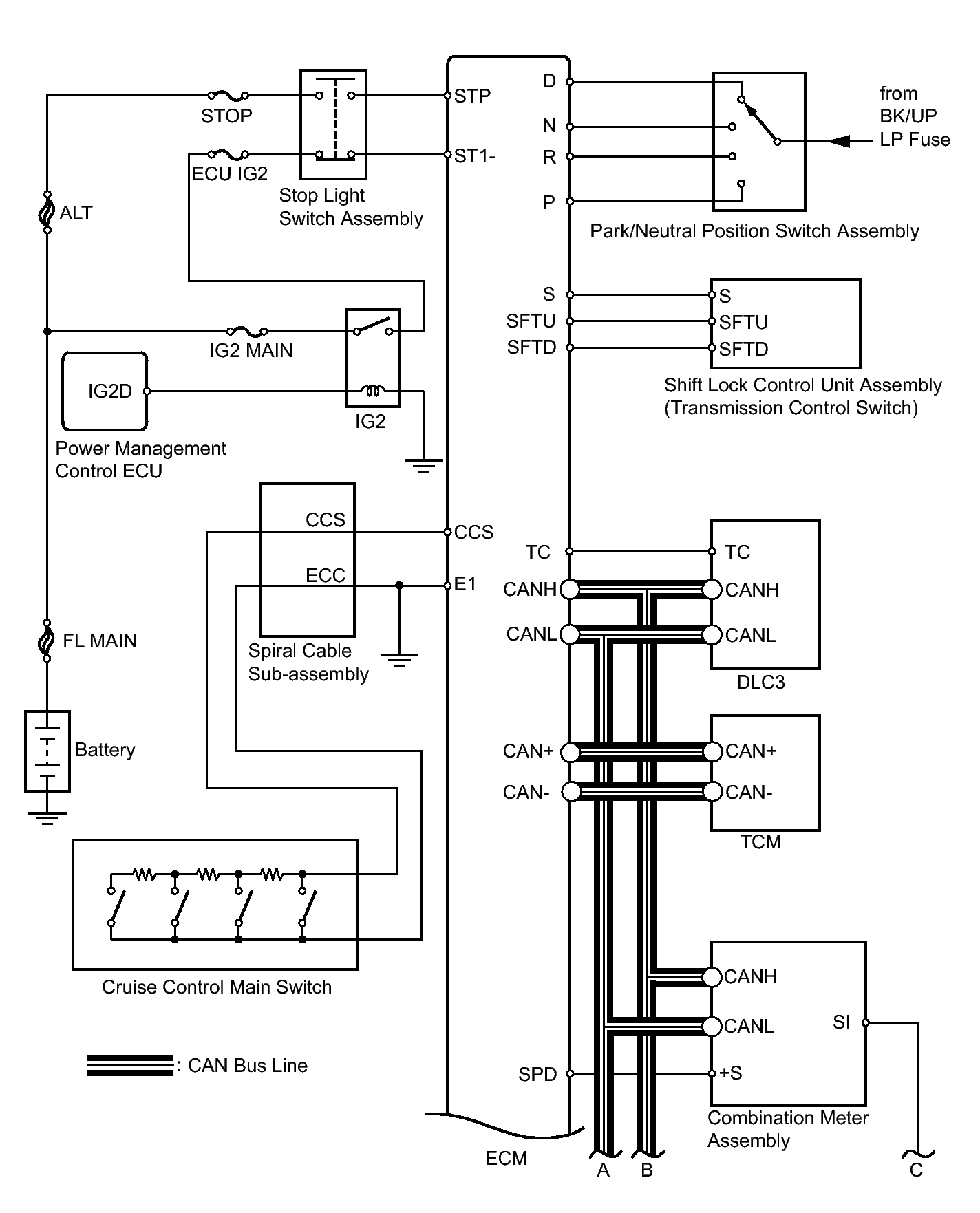

Fig 1: Identifying Cruise Control System Diagram (1 Of 2)
GTY394444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

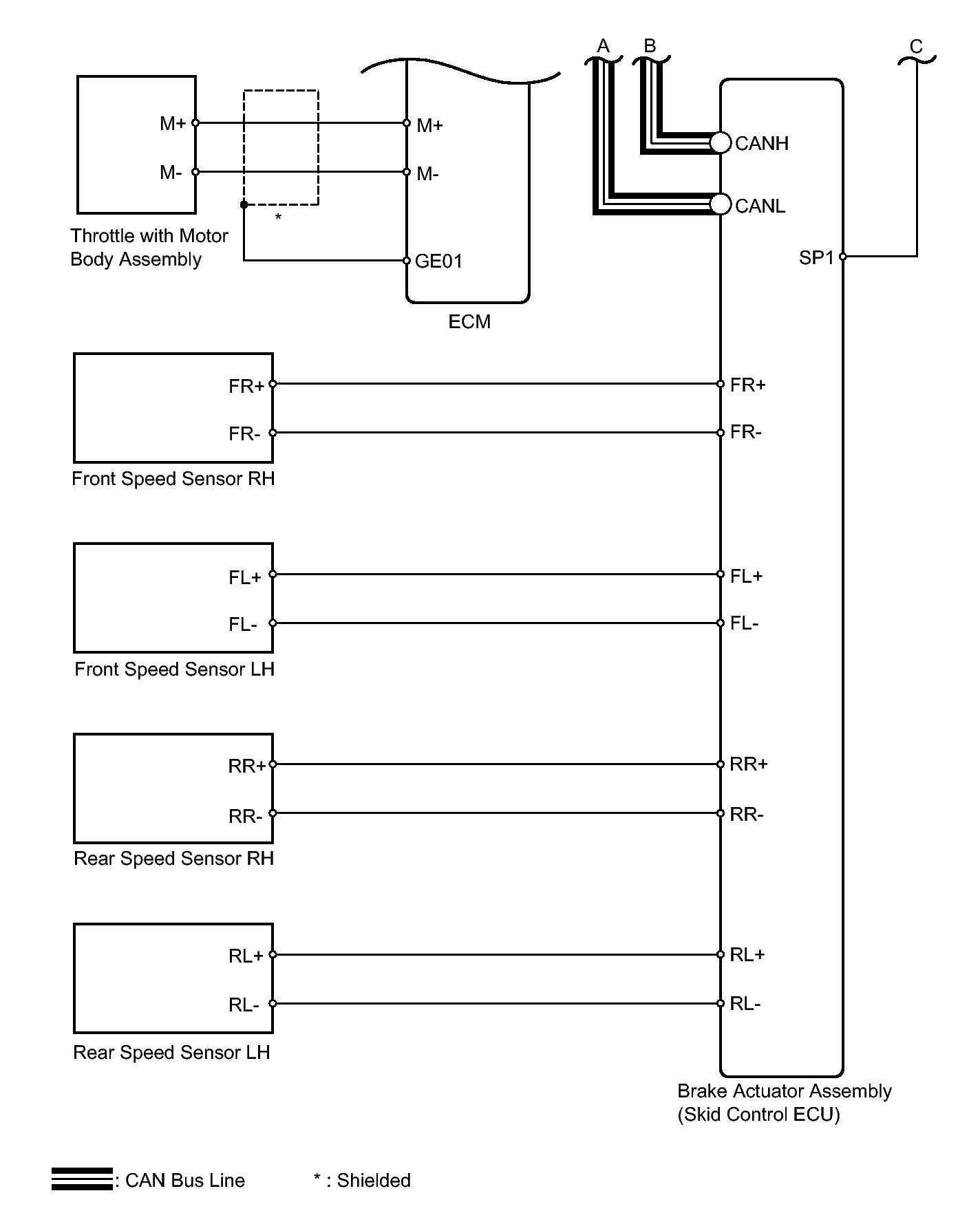

Fig 2: Identifying Cruise Control System Diagram (2 Of 2)
GTY393472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
ECM Combination Meter ECU
(Cruise Main Indicator Light)
("SET" Indicator)		 Cruise main indicator and SET indicator operation signal CAN
ECM TCM Shift up/down request signal CAN
TCM ECM Shift up/down response CAN
