Front Seat Inner Belt Assembly: Installation: Installation

INSTALL FRONT SEAT INNER BELT ASSEMBLY
1. Install the front seat inner belt assembly with the nut.

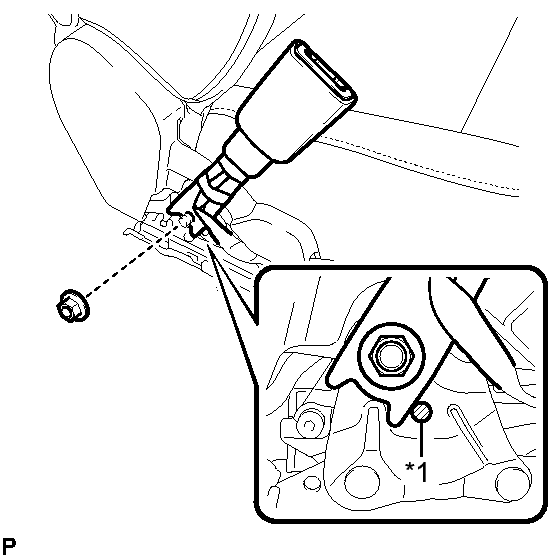

  Fig 1: Front Seat Inner Belt Assembly With The Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Protruding Part

  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE:
  Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the front seat adjuster.
2. Connect each connector and clamp.
INSTALL FRONT SEAT ASSEMBLY
1. Install the front seat assembly. Refer to INSTALLATION .
