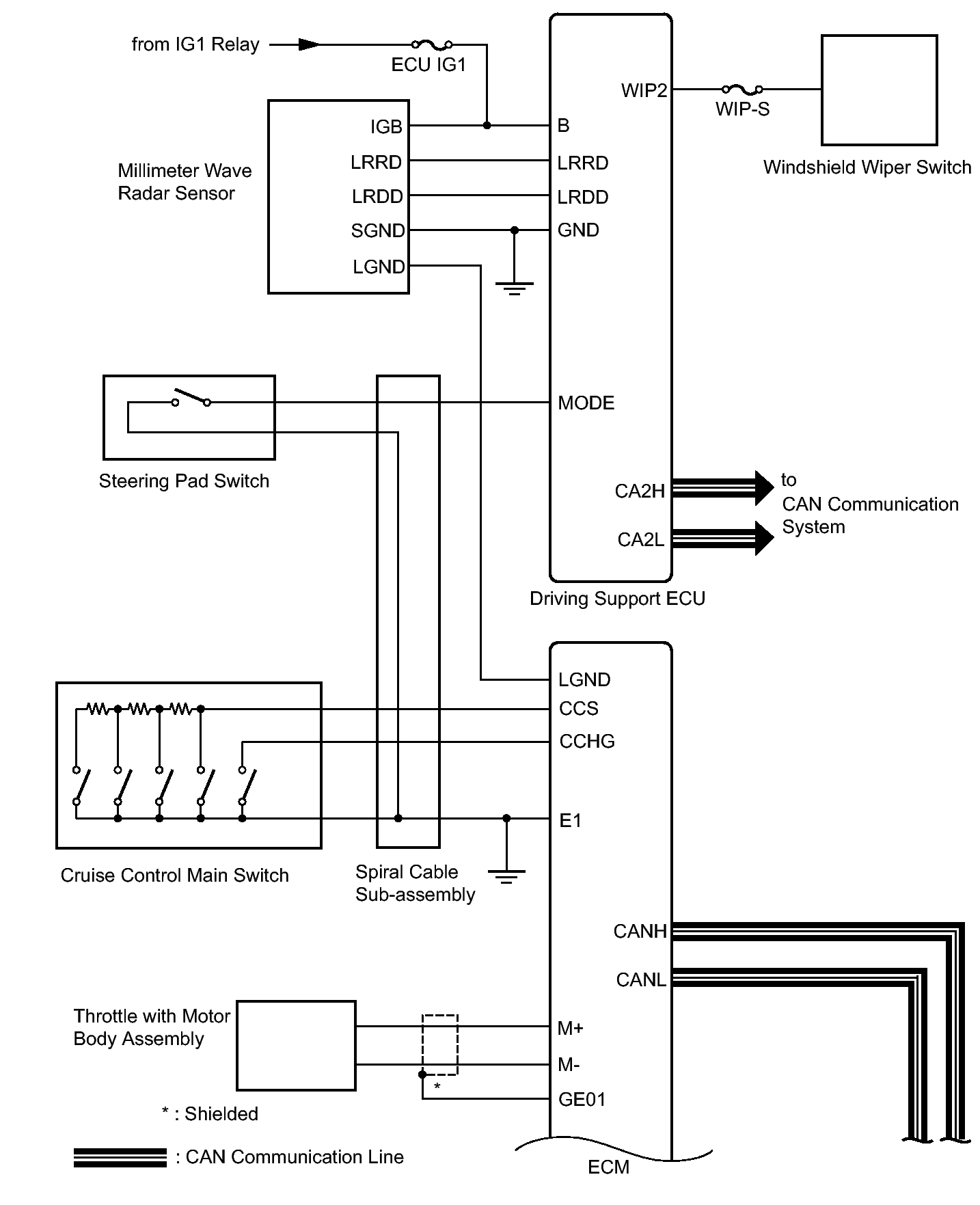

| ECM |
Driving Support ECU |
- A/T signal
- Cruise control operation signal
- Accelerator pedal idle signal
- Set vehicle distance signal
- Brake demand response signal
- Stored vehicle speed signal
- Current vehicle speed signal
- Cruise control switch signal
- Brake control operation signal
- Dynamic radar cruise designation signal
- Brake control interrupting signal
- Cruise control demand opening angle signal
|
CAN |
| Driving Support ECU |
ECM |
- Millimeter wave radar sensor beam axis deviation signal
- Millimeter wave radar sensor malfunction signal
- Dirt present on millimeter wave radar sensor signal
- Bad weather detection signal
- Communication error signal (from driving support ECU to millimeter wave radar sensor)
- Communication error signal (from ECM to driving support ECU)
- Communication error signal (from skid control ECU to driving support ECU)
- Yaw rate communication error signal
- Steering angle sensor communication error signal
- Driving support ECU voltage signal
- Dynamic radar cruise designation response signal
- Estimated vehicle speed signal
- Vehicle-to-vehicle distance signal
- Vehicle-to-vehicle distance control signal
- Brake control demand signal
- Throttle fully closed demand signal
- Approach warning signal (skid control buzzer demand signal)
- Cruise target deceleration gradient signal
- Vehicle-to-vehicle distance control acceleration signal
|
CAN |
| ECM |
Skid Control ECU |
- Cruise target deceleration gradient signal
- Cruise target deceleration signal
- Throttle fully closed demand signal
- Brake control demand signal
- Cruise control operation signal
- Approach warning signal (skid control buzzer demand signal)
|
CAN |

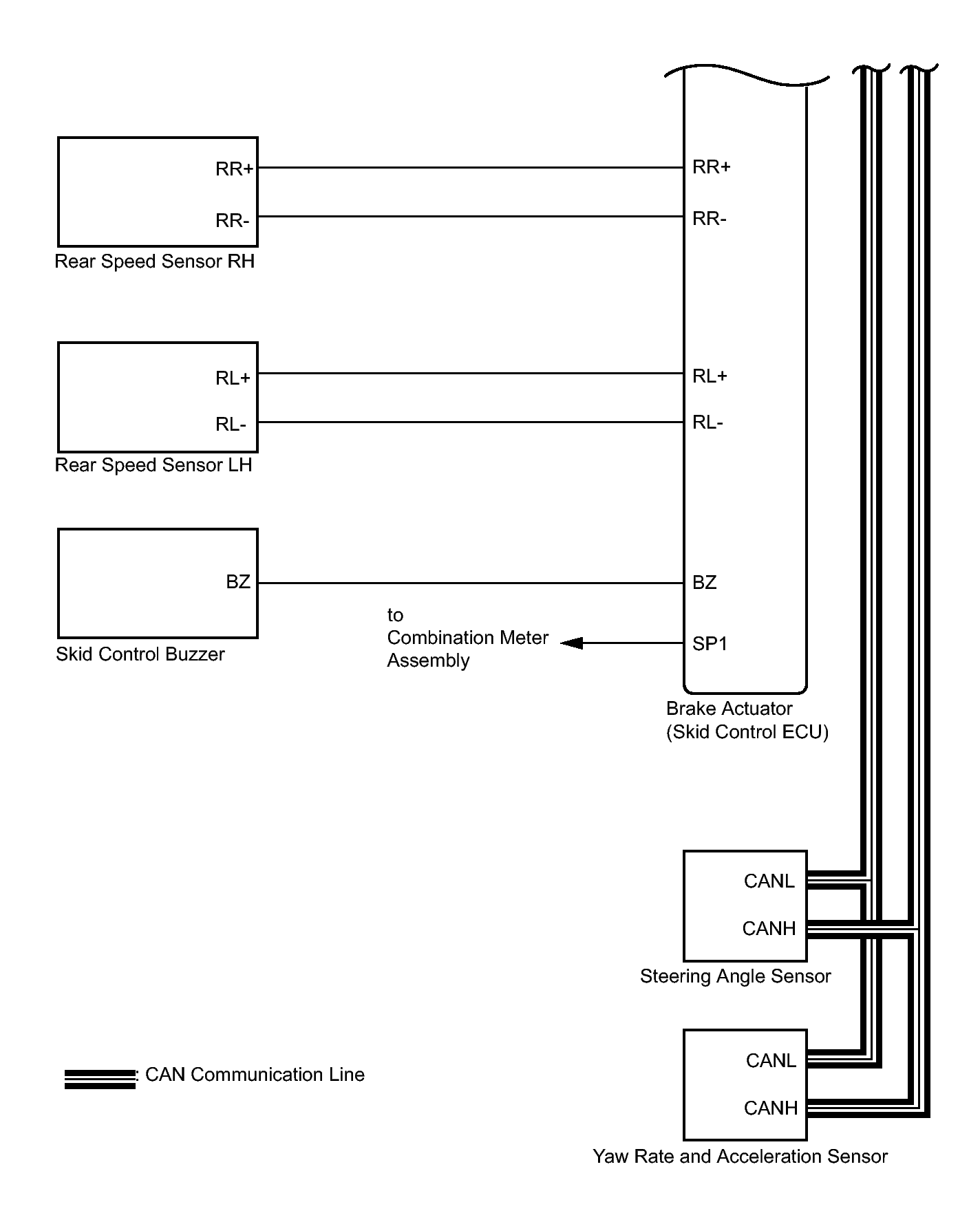

| Skid Control ECU |
Driving Support ECU |
- Wheel speed signal
- Speed sensor power drop signal
- Speed sensor condition signal
- Yaw rate and acceleration sensor signal
- Yaw rate and acceleration sensor zero point error signal
|
CAN |

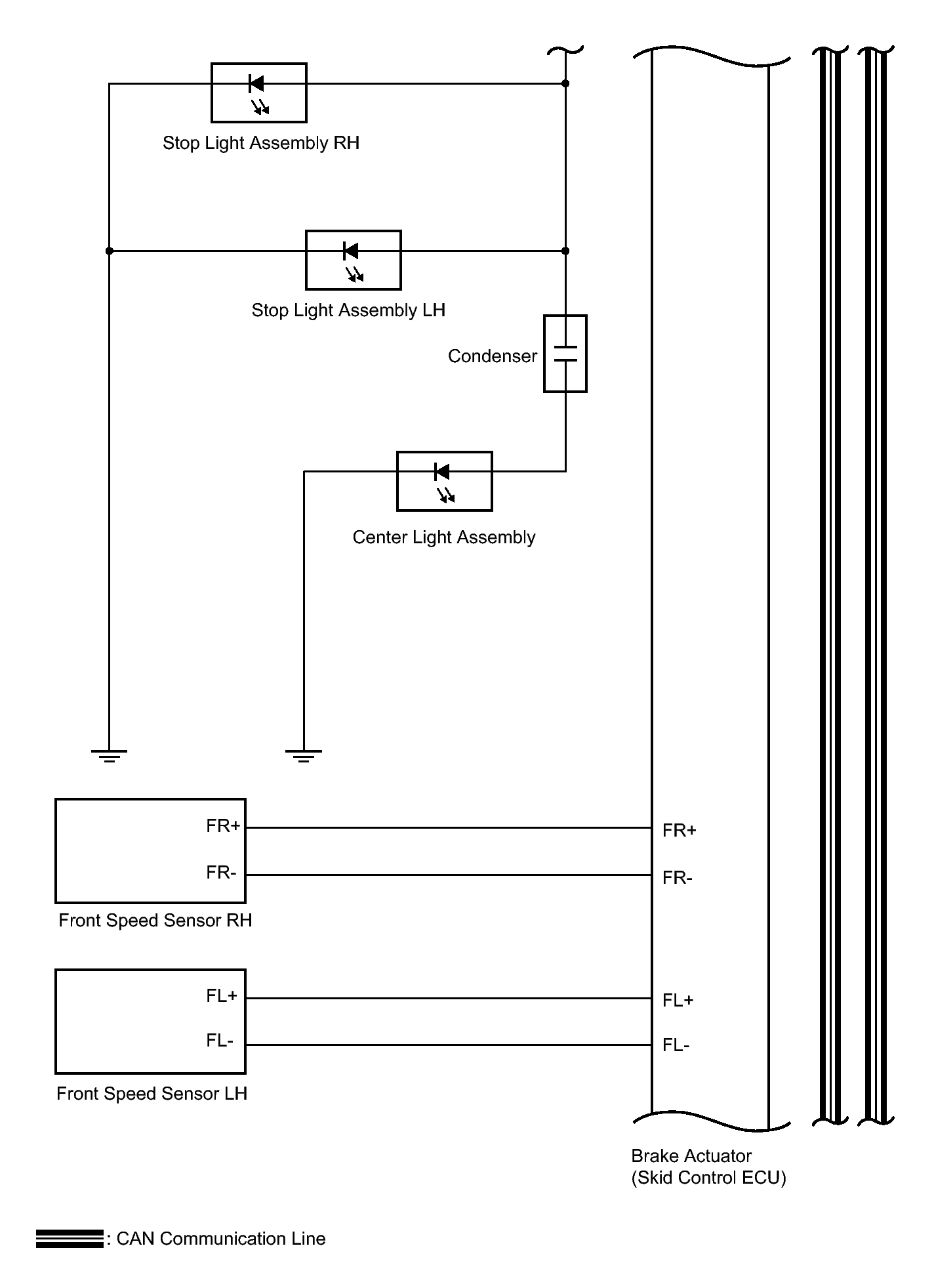

| Skid Control ECU |
ECM |
- Brake component malfunction signal
- Brake control malfunction signal
- Drive wheel slip signal
- Cruise control cancel signal
- Skid control buzzer malfunction signal
- Communication logic error signal (from ECM to skid control ECU)
- Brake demand response signal
- Brake control interrupting signal
- Brake control operation signal
|
CAN |
| Steering Angle Sensor |
Driving Support ECU |
- +B open circuit malfunction signal
- Sensor malfunction signal
- Steering angle signal
- Sensor zero point signal
|
CAN |
| Yaw Rate and Acceleration Sensor |
Driving Support ECU |
- Yaw rate sensor signal
- Yaw rate sensor voltage signal
|
CAN |
| ECM |
Combination Meter
(Meter ECU) |
- Cruise control diagnosis signal (DTC)
- Preceding vehicle detection signal
- Approach warning signal
- Vehicle-to-vehicle distance signal
- Dirt present on millimeter wave radar sensor signal
- Bad weather detection signal
- Vehicle-to-vehicle distance control signal
- Vehicle-to-vehicle distance control check mode signal
- Vehicle-to-vehicle distance control standby condition signal
- Constant speed cruise signal
- CRUISE indicator operation signal
- Cruise control warning signal
- Dynamic radar cruise warning signal
- Cruise control vehicle speed signal
- SET indicator operation signal
|
CAN |
| Driving Support ECU |
Combination Meter
(Meter ECU) |
- Millimeter wave radar sensor beam axis deviation signal
- Vehicle-to-vehicle distance signal
- Preceding vehicle detection signal
|
CAN |
| Cowl Side Junction Block RH ECU |
ECM |
- Pattern select switch (ECT SNOW mode) signal
|
CAN |
| Windshield Wiper Switch Assembly |
Driving Support ECU |
- Turn switch signal
- Windshield wiper switch position signal
|
CAN |

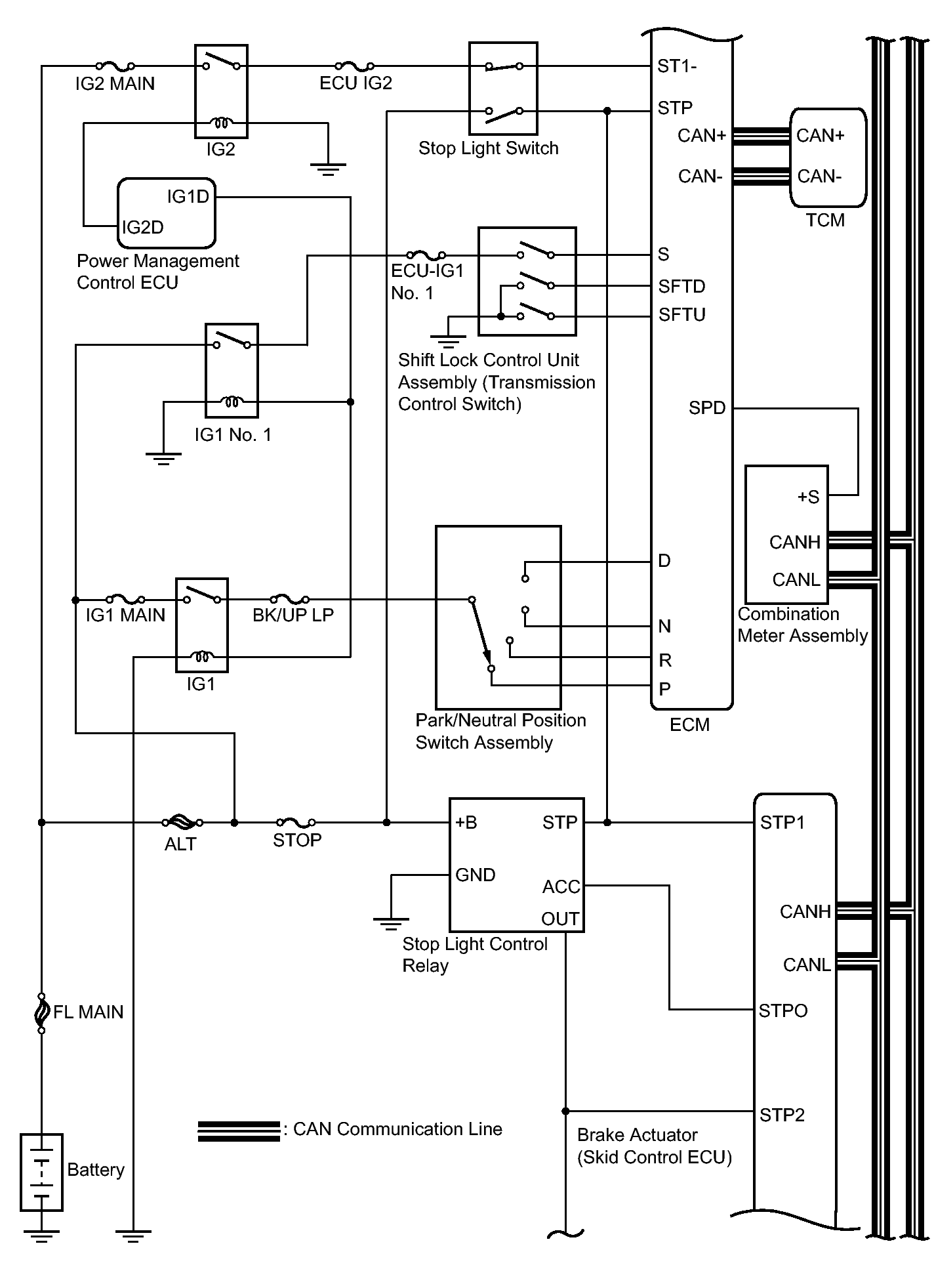

| ECM |
TCM |
- Shift up/down request signal
|
CAN |
| TCM |
ECM |
|
CAN |
