Cigarette Lighter and Power Outlet (12V): Notes

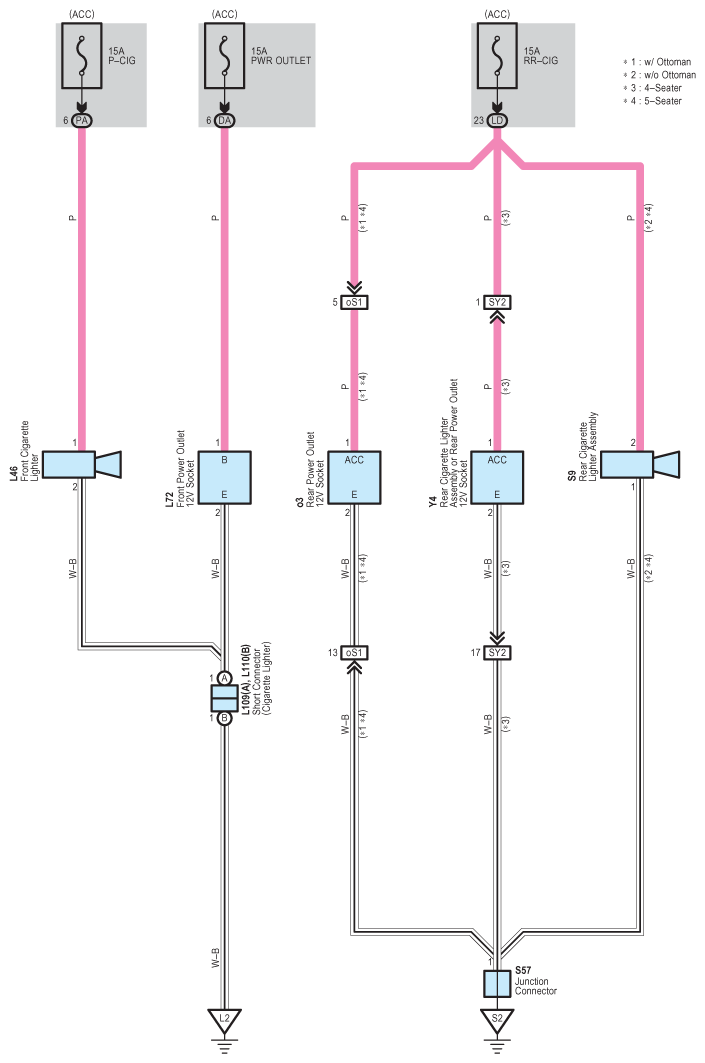

Fig 1: Cigarette Lighter And Power Outlet (12V) - Wiring Diagram

G08937042

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
