DTC B2312: Power Window Switch Malfunction: Wiring Diagram

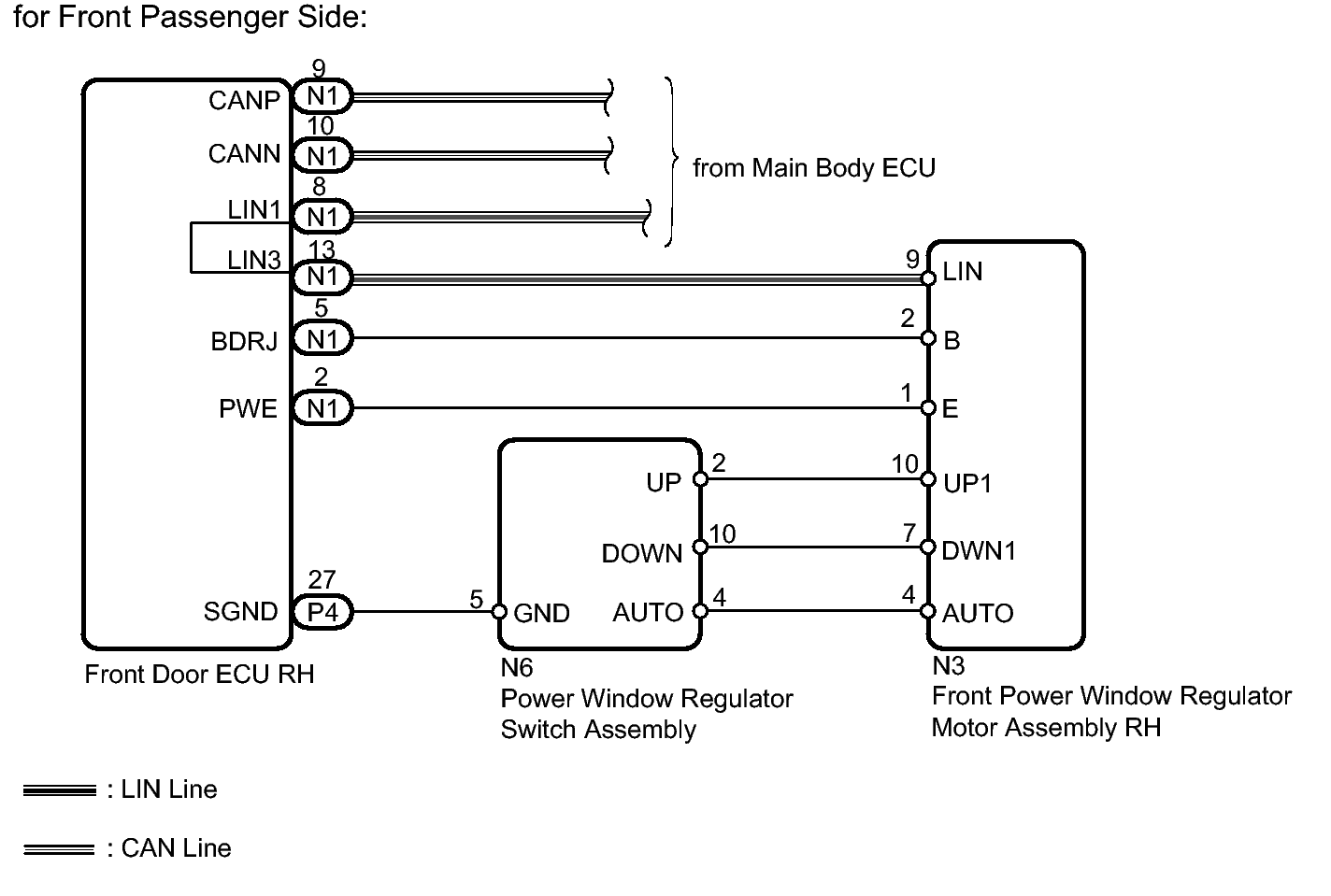

Fig 1: Power Window Switch Wiring Diagram (1 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

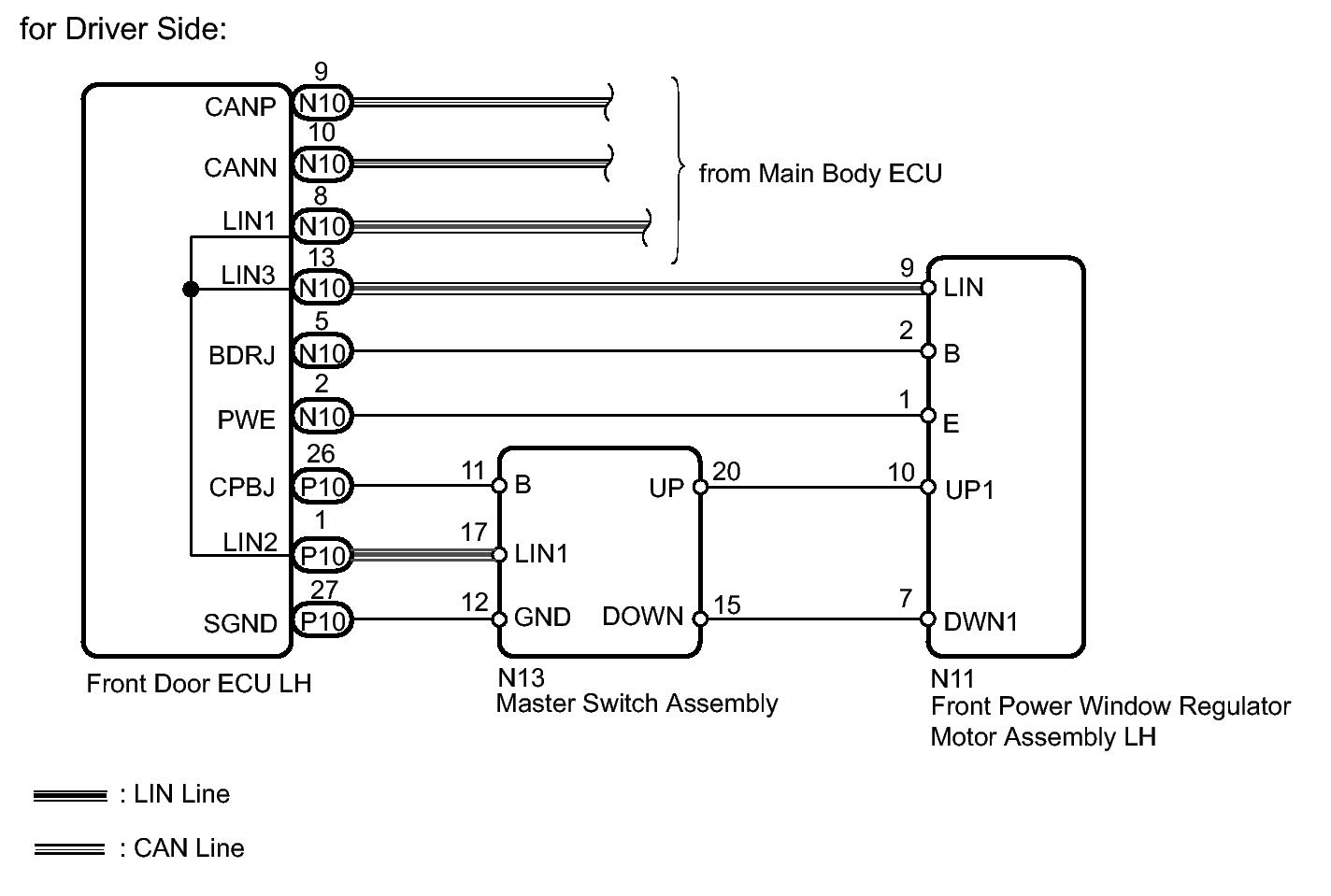

Fig 2: Power Window Switch Wiring Diagram (2 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

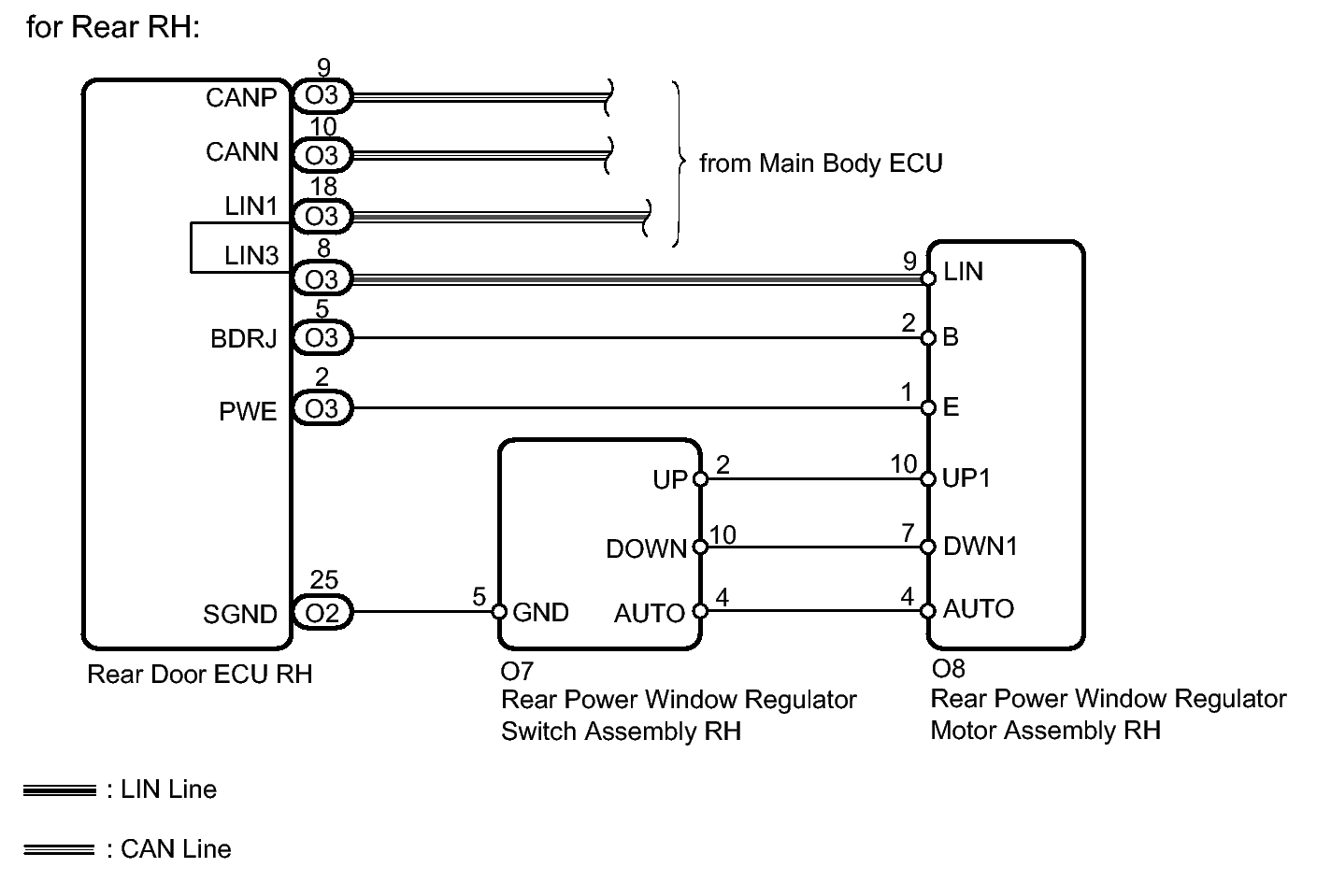

Fig 3: Power Window Switch Wiring Diagram (3 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Power Window Switch Wiring Diagram (4 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
