System Diagram

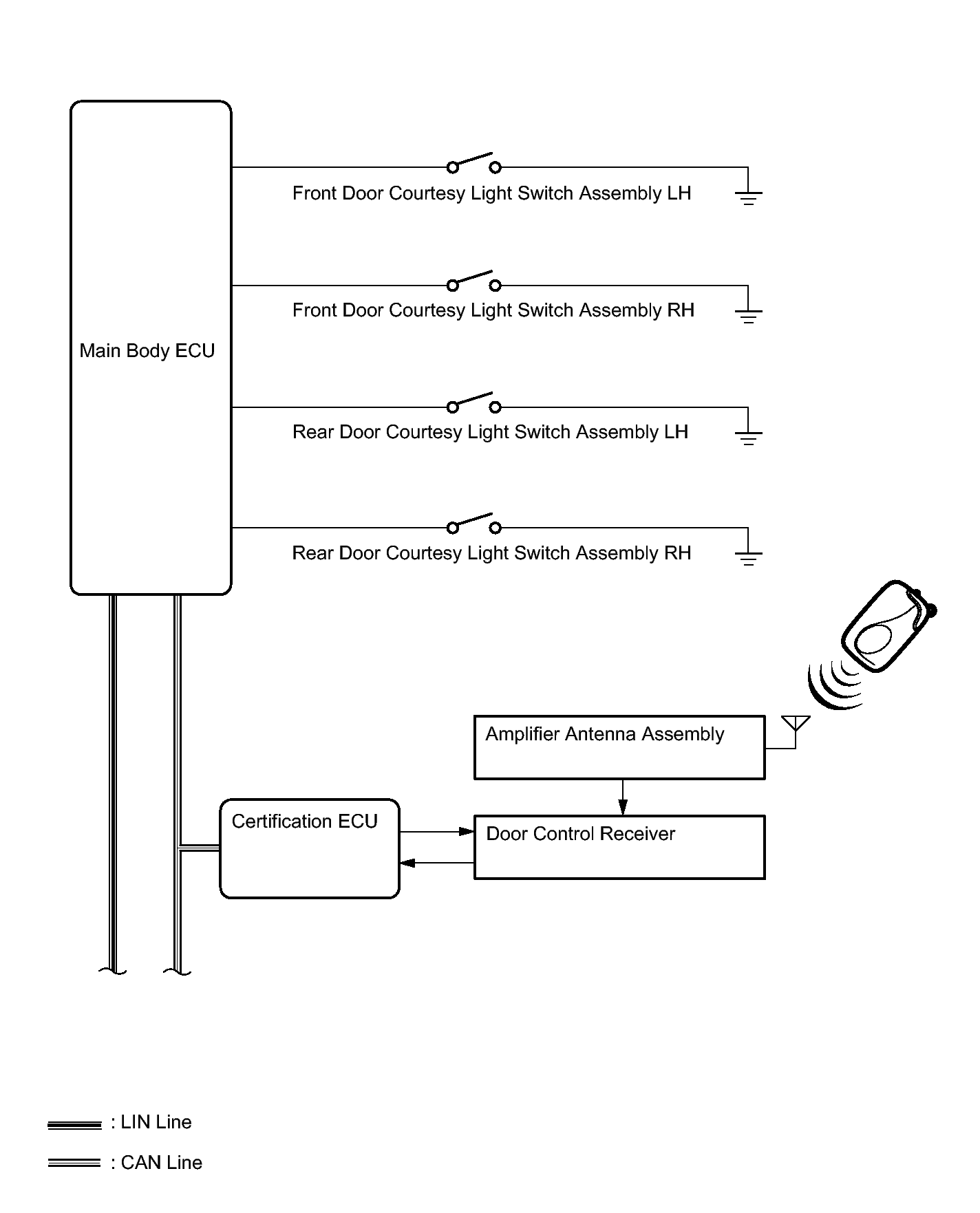

Fig 1: Power Window Control System Wiring Diagram (1 Of 2)
GTY117544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Window Control System Diagram (2 Of 2)
GTY117545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
