Section 3 (Safety Connect System (Diagnostics - Introduction))
>>
Safety Connect System
>>
System Diagram
>>
System Diagram
System Diagram
WARNING:
This page is about a different car, the 2012 Lexus LS 460. However, it is still accessible from the selected car via links, so may be relevant.

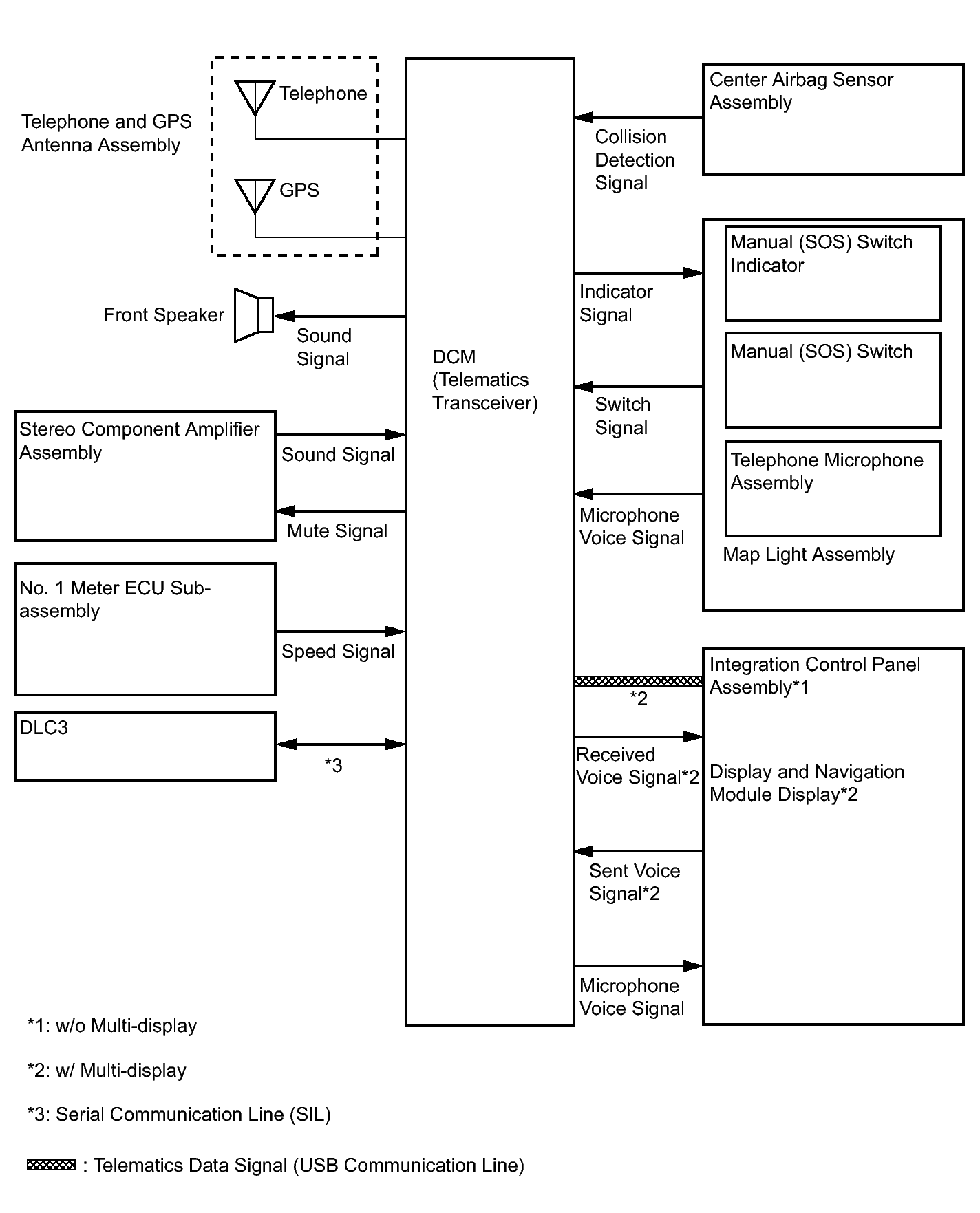

Fig 1: Identifying Safety Connect System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
