Parts Location: Illustration

WARNING: This page is about a different car, the 2012 Lexus LS 460. However, it is still accessible from the selected car via links, so may be relevant.

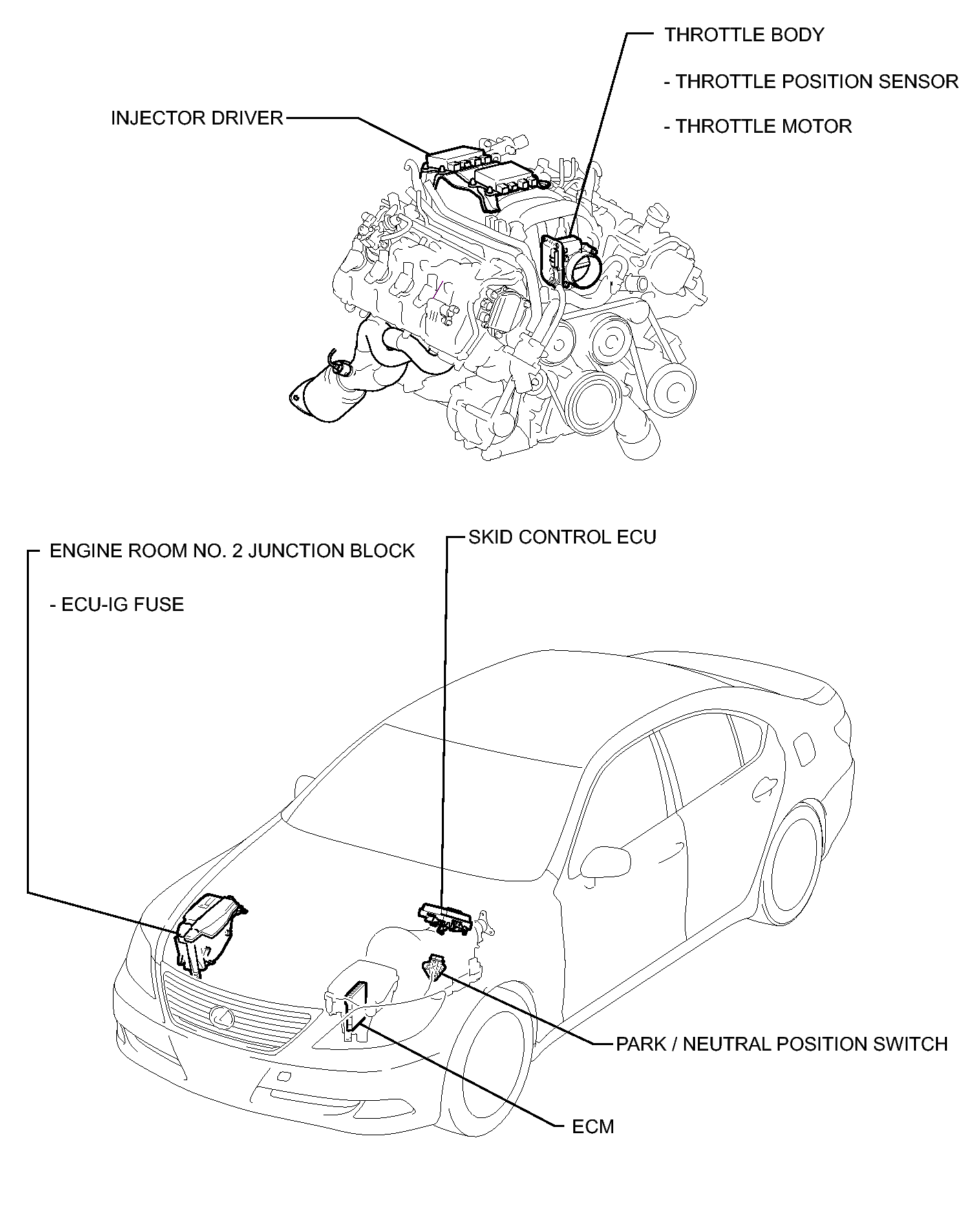

Fig 1: Identifying Cruise Control Components Location (1 Of 2)
GTY275198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

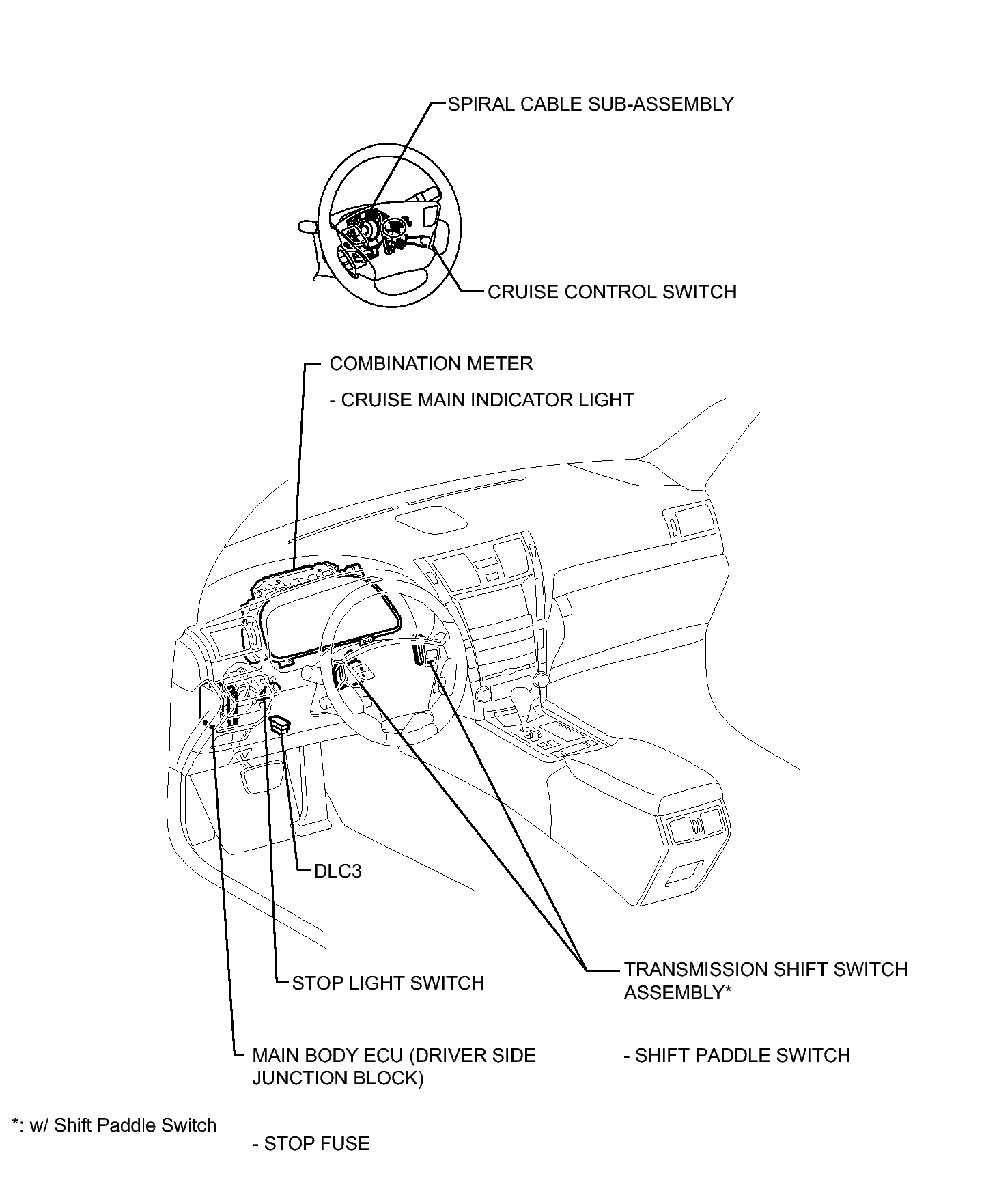

Fig 1: Identifying Cruise Control Components Location (2 Of 2)
GTY266715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
