Parts Location: Illustration

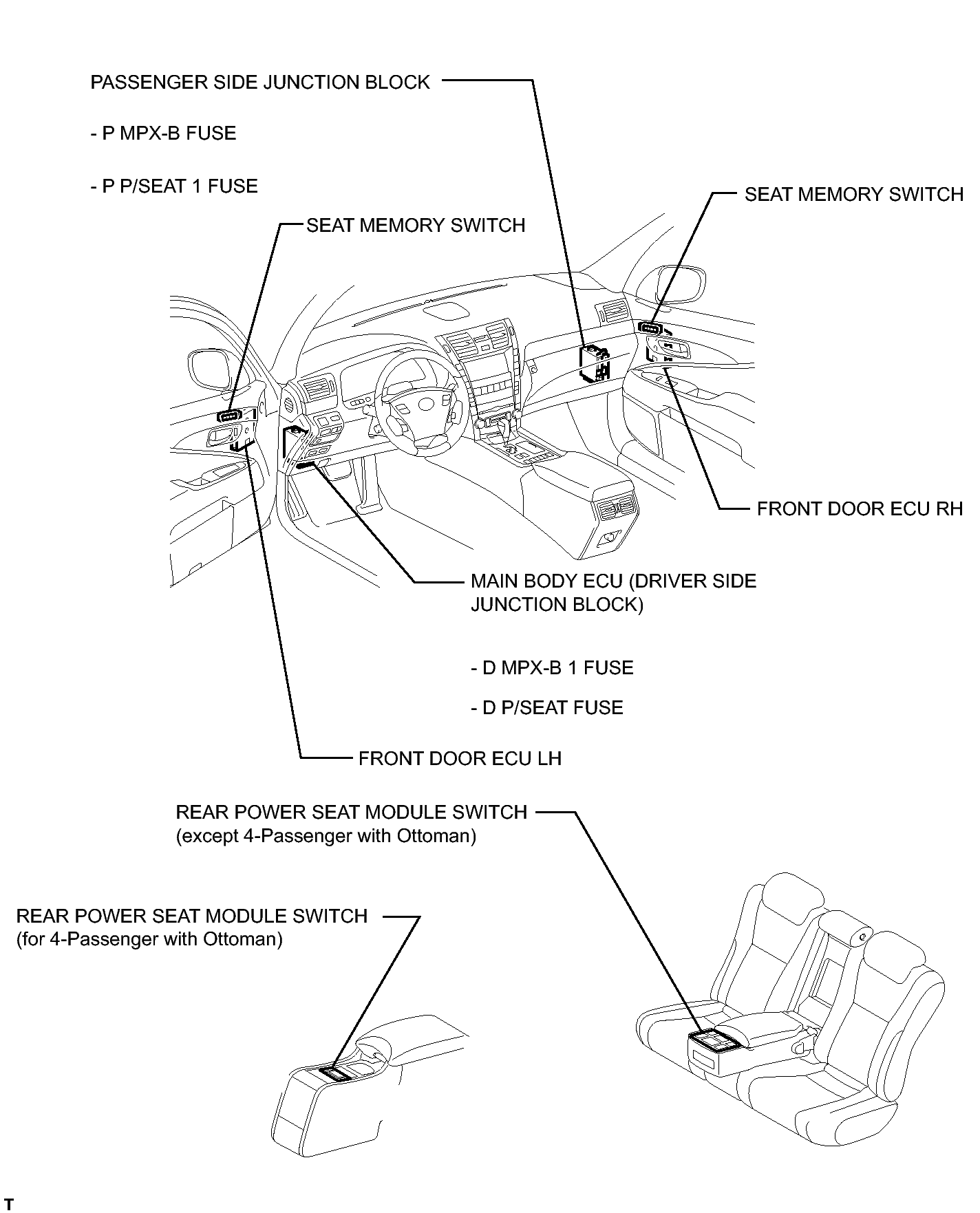

Fig 1: Identifying Front Power Seat Control System Components Location (1 Of 5)
GTY259435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

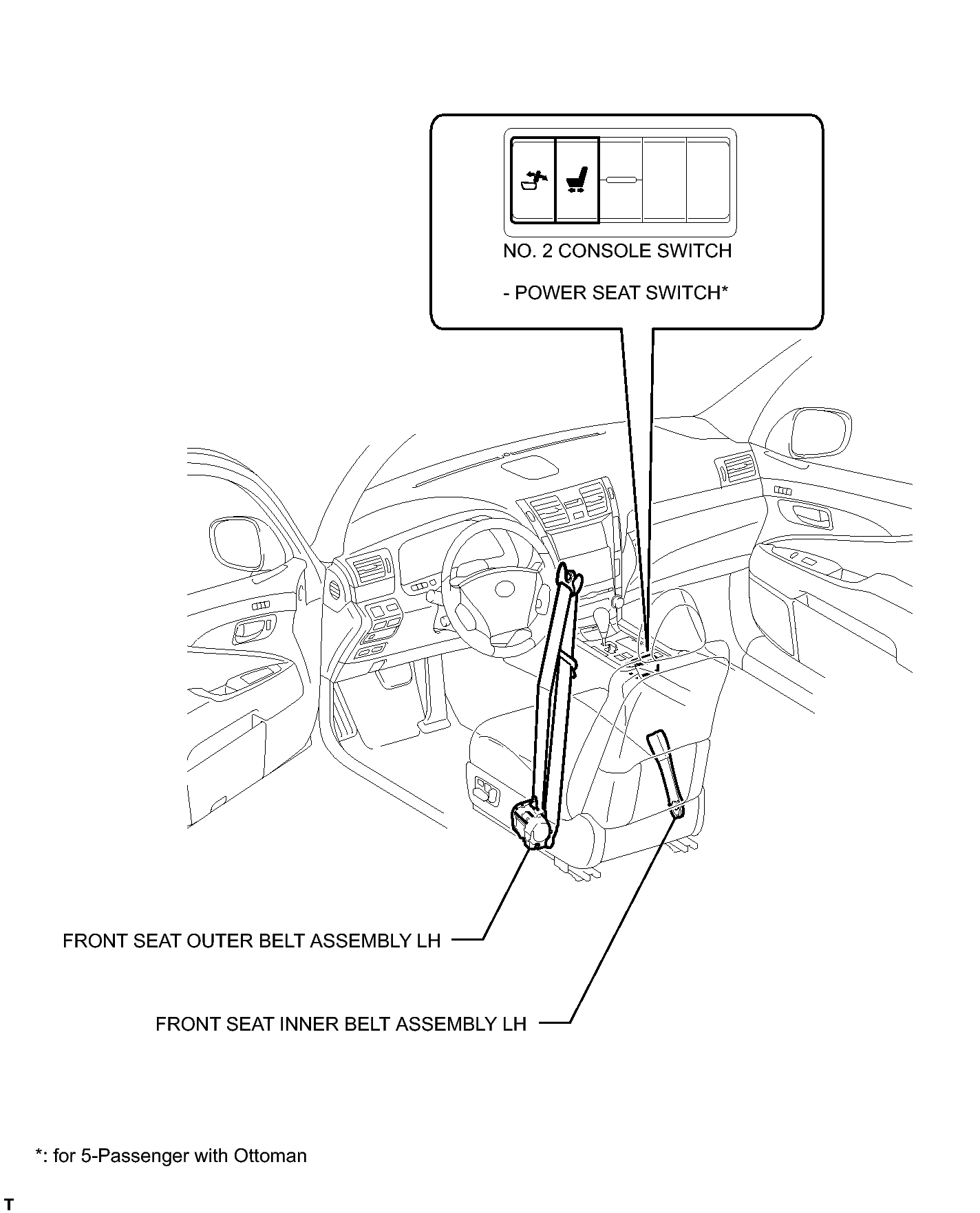

Fig 1: Identifying Front Power Seat Control System Components Location (2 Of 5)
GTY273012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

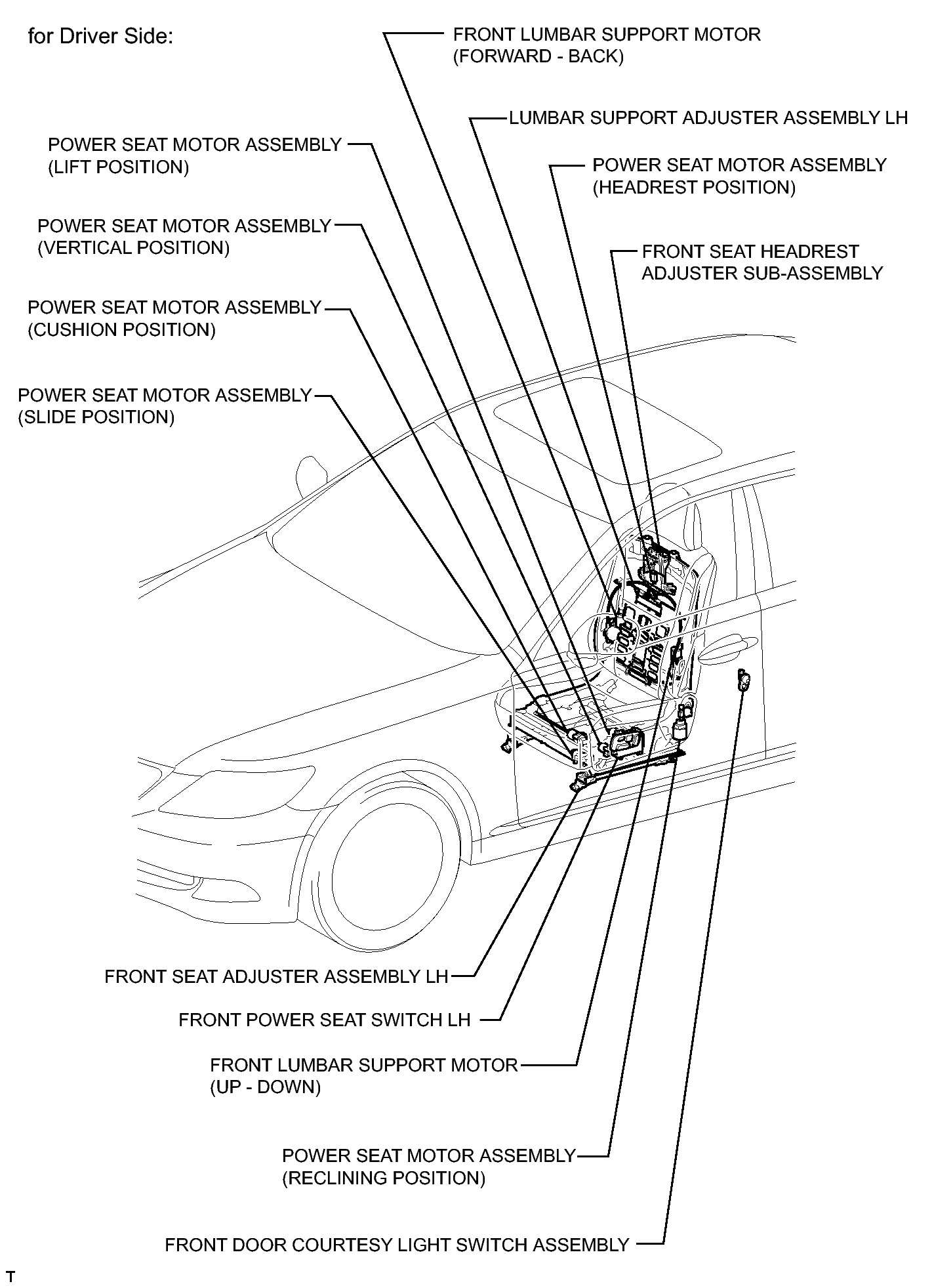

Fig 1: Identifying Front Power Seat Control System Components Location (3 Of 5)
GTY288668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

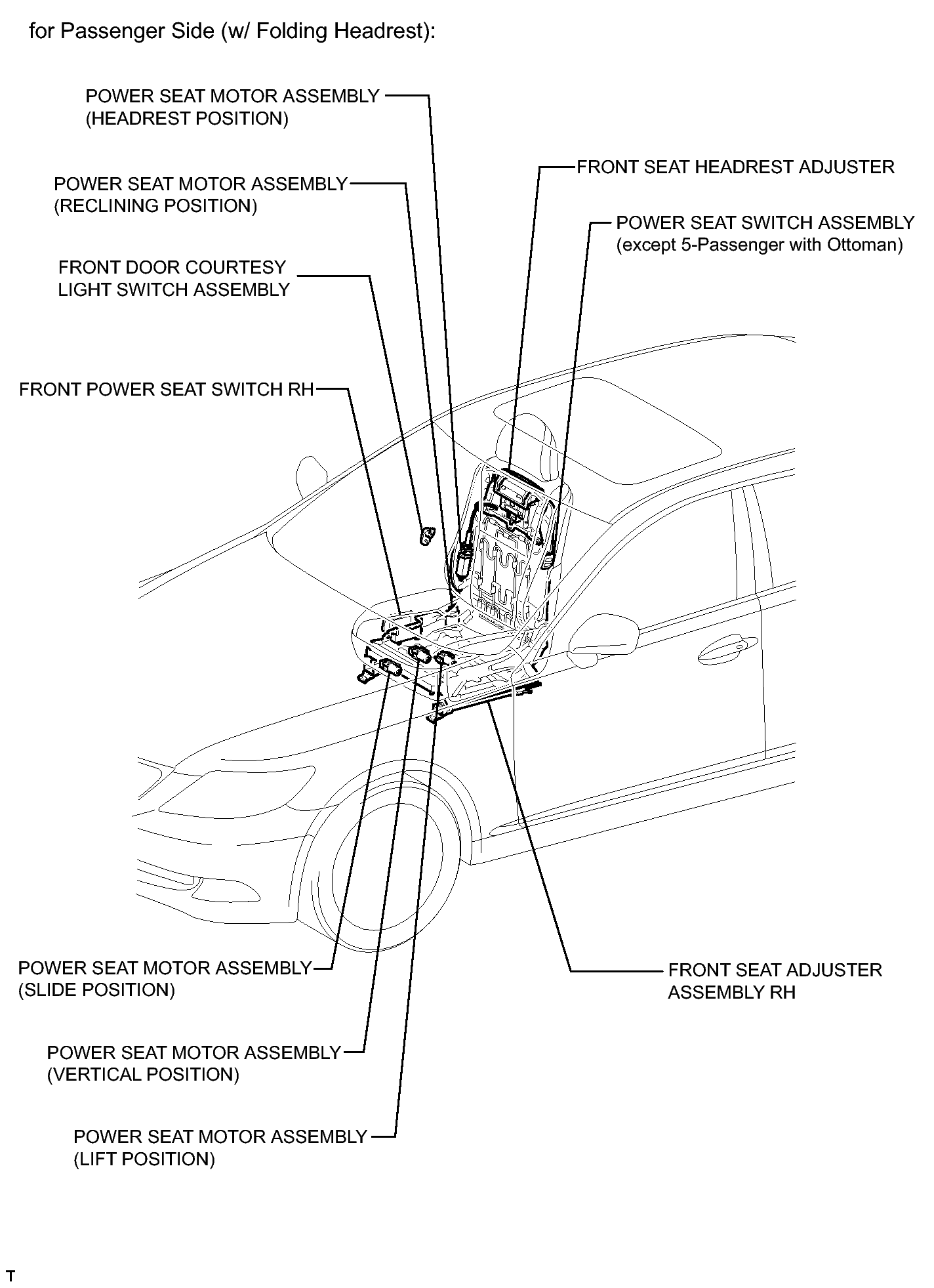

Fig 1: Identifying Front Power Seat Control System Components Location (4 Of 5)
GTY284582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

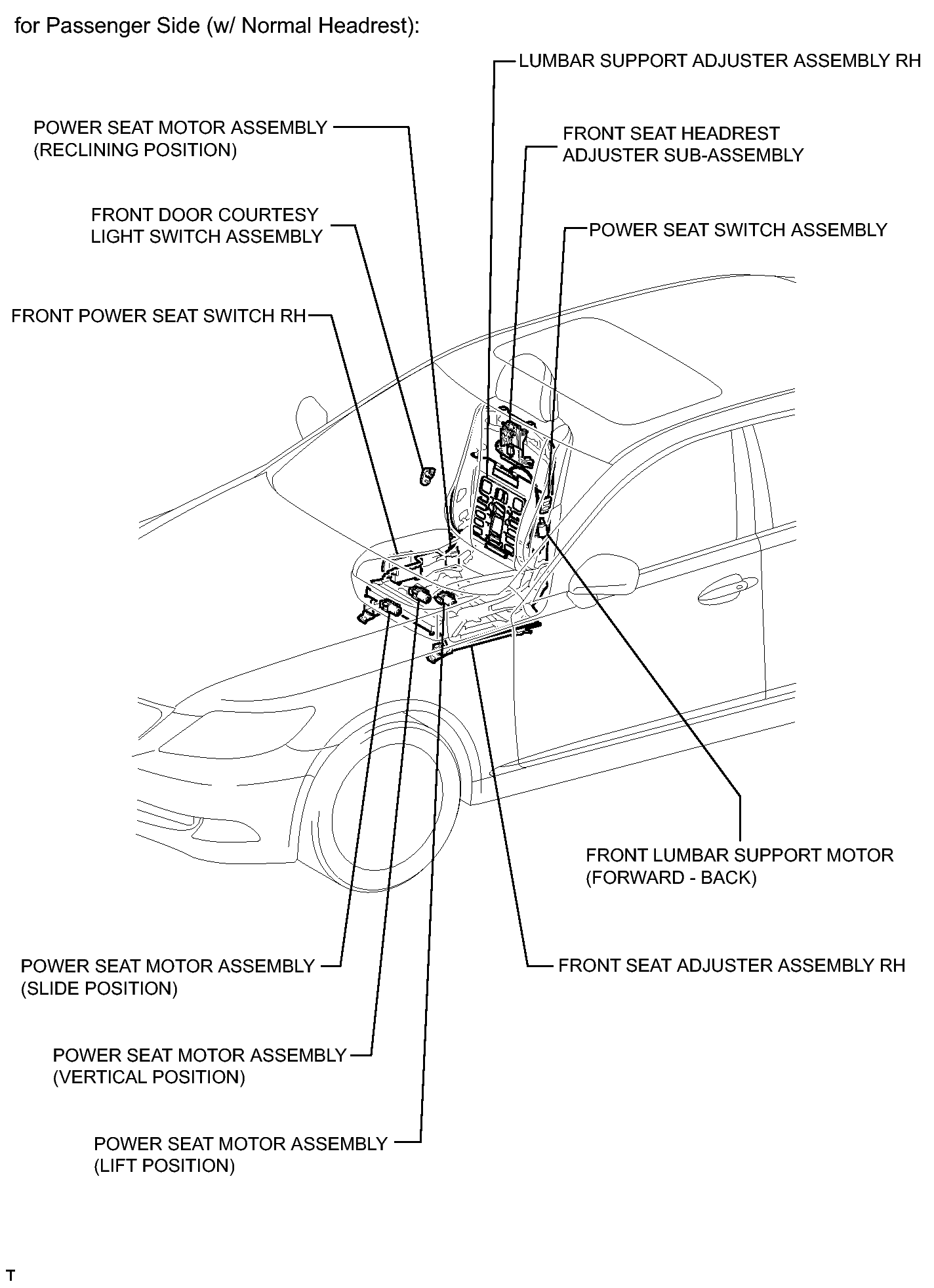

Fig 1: Identifying Front Power Seat Control System Components Location (5 Of 5)
GTY286059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
