Parts Location: Illustration

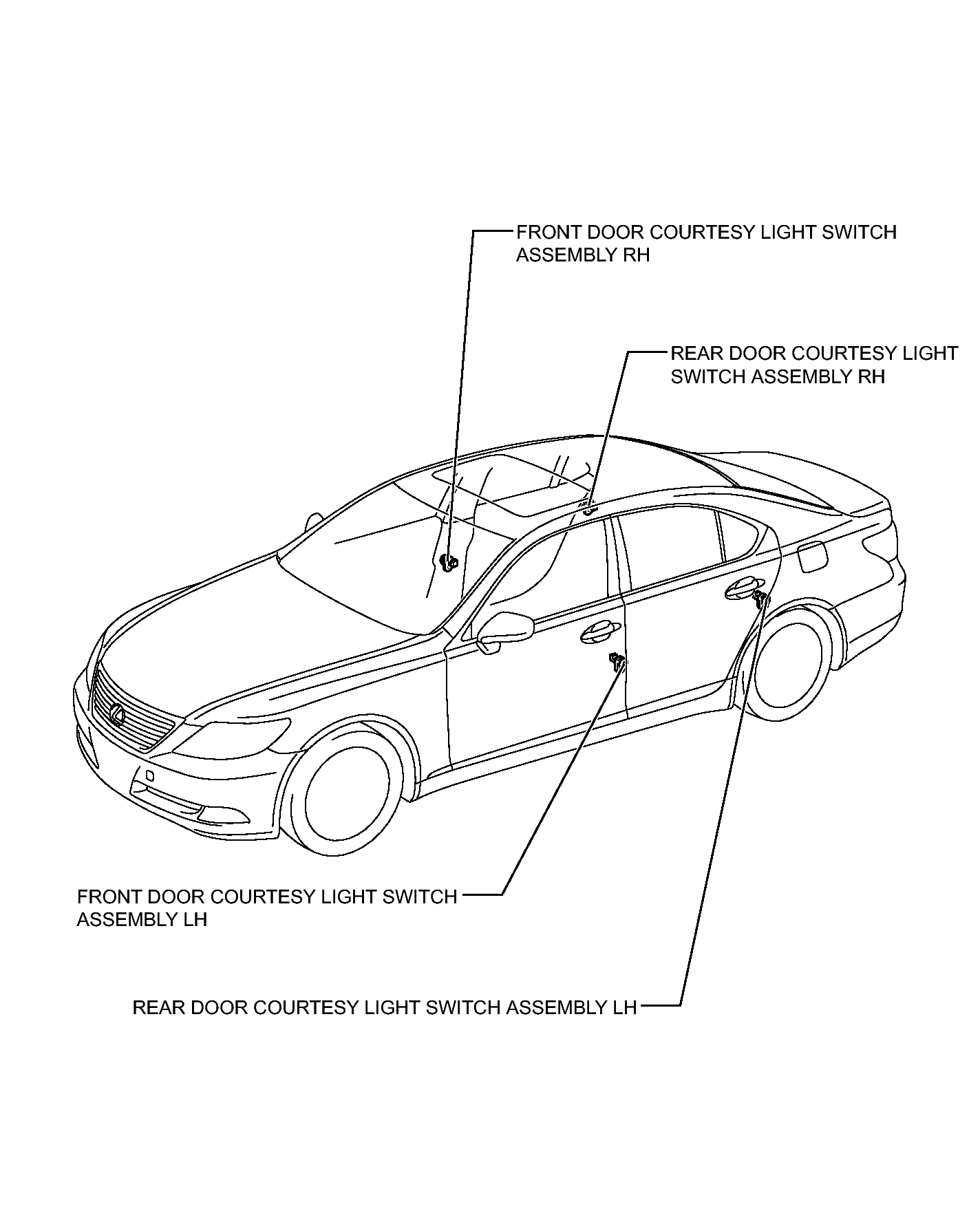

Fig 1: Identifying Power Door Lock Control System Components Location (1 Of 5)
GTY268308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

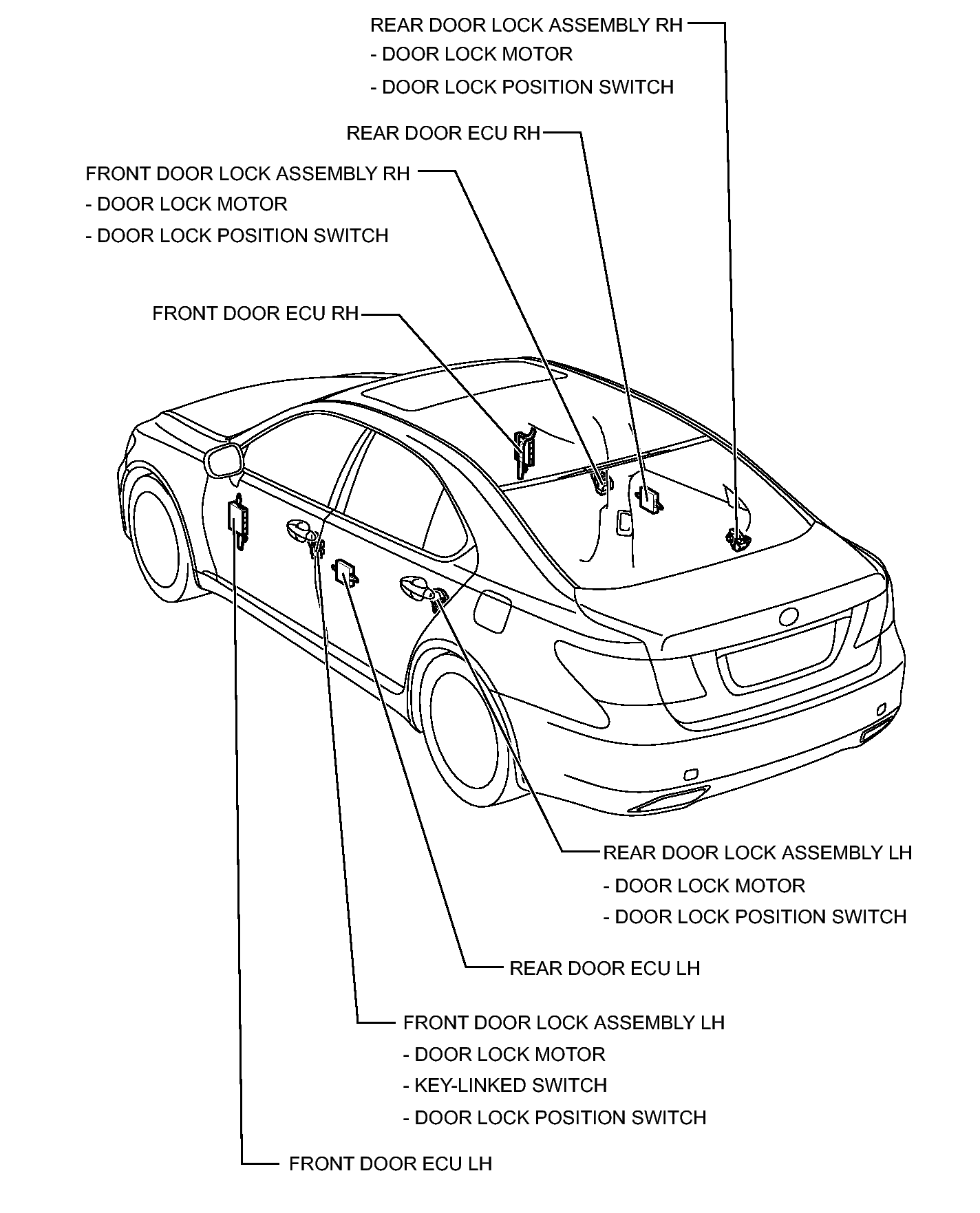

Fig 1: Identifying Power Door Lock Control System Components Location (2 Of 5)
GTY263117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

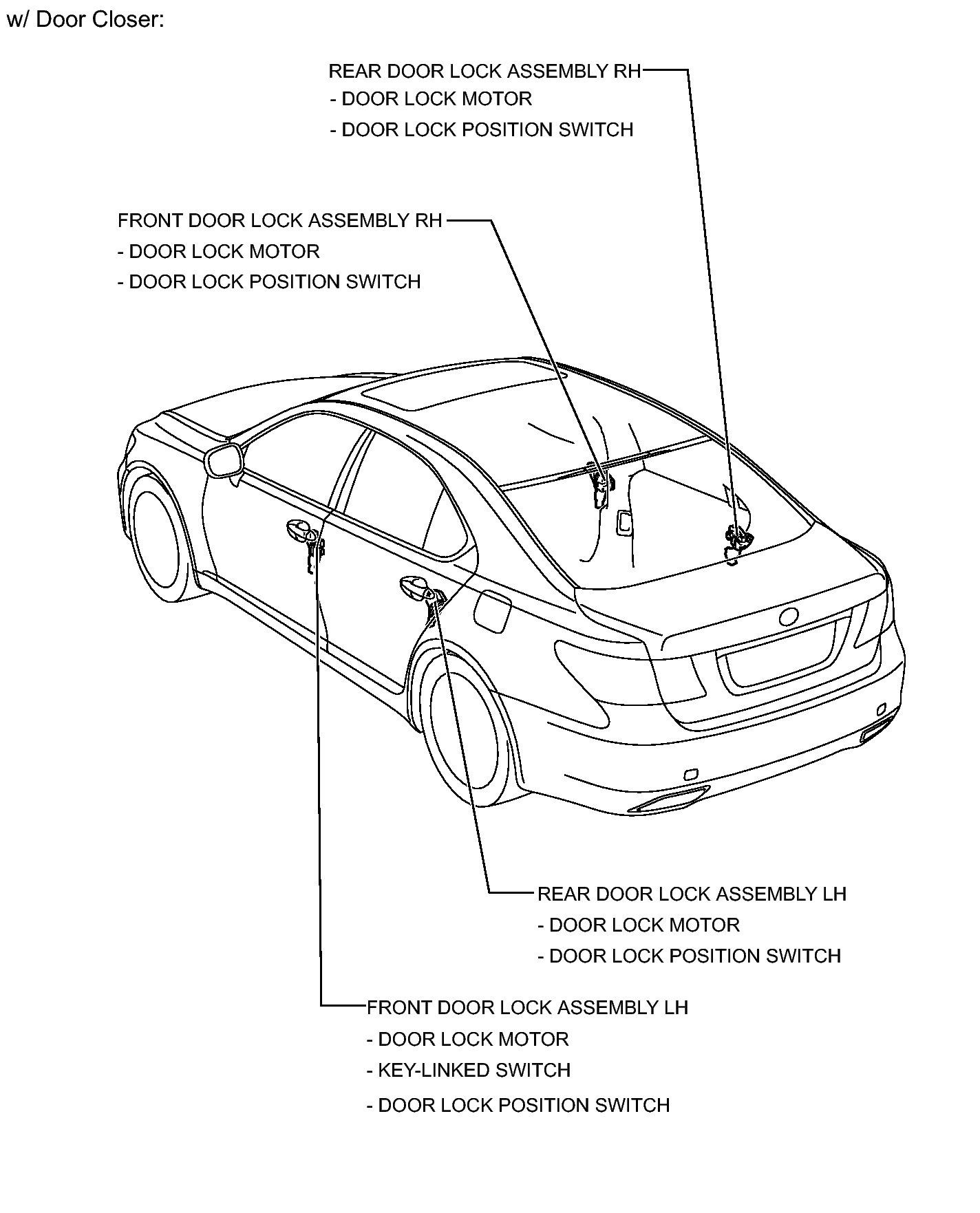

Fig 1: Identifying Power Door Lock Control System Components Location (3 Of 5)
GTY256449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

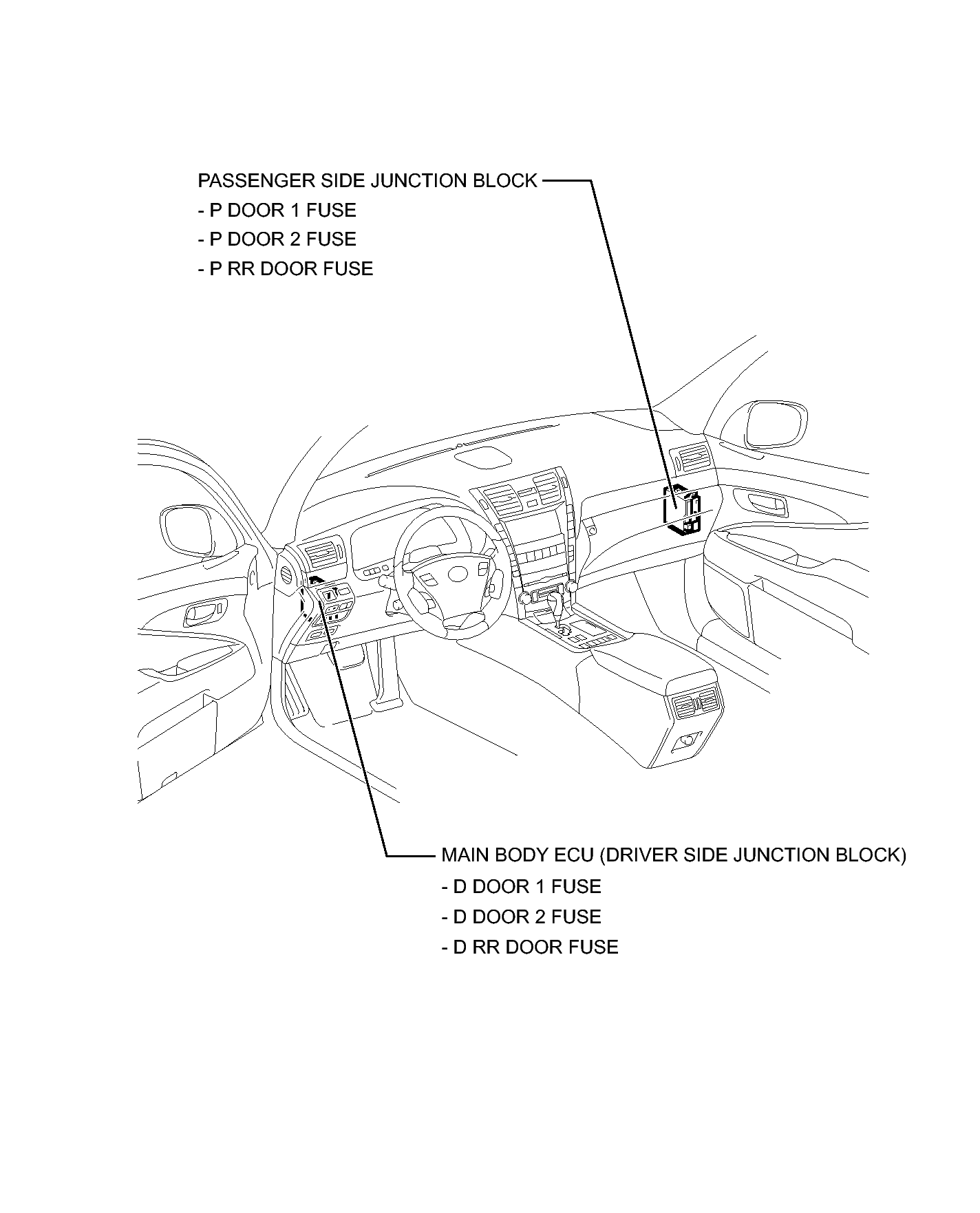

Fig 1: Identifying Power Door Lock Control System Components Location (4 Of 5)
GTY116905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

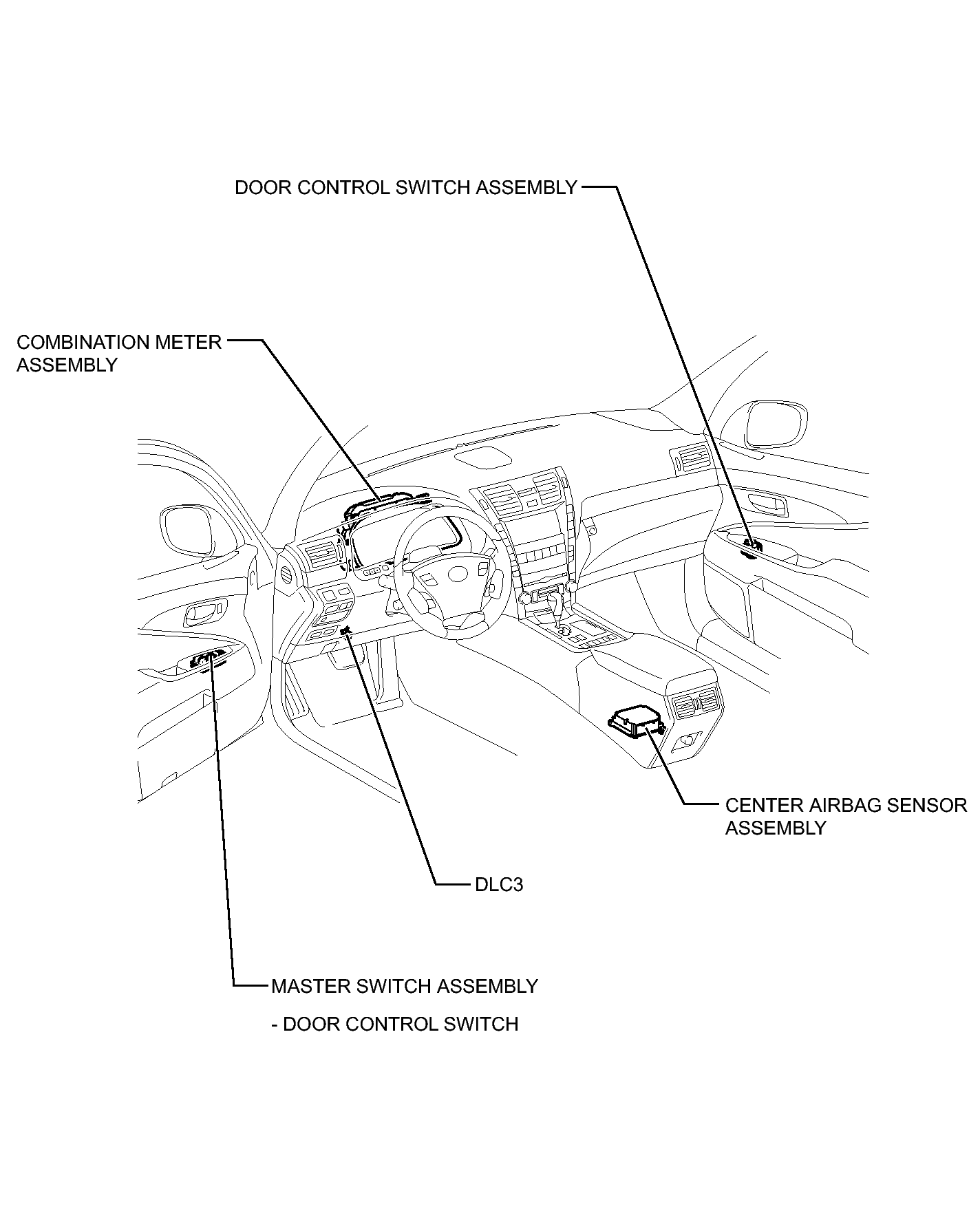

Fig 1: Identifying Power Door Lock Control System Components Location (5 Of 5)
GTY133661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
