Certification Ecu: Installation: Installation

  1. INSTALL CERTIFICATION ECU
    1. Install the ECU with the nut.

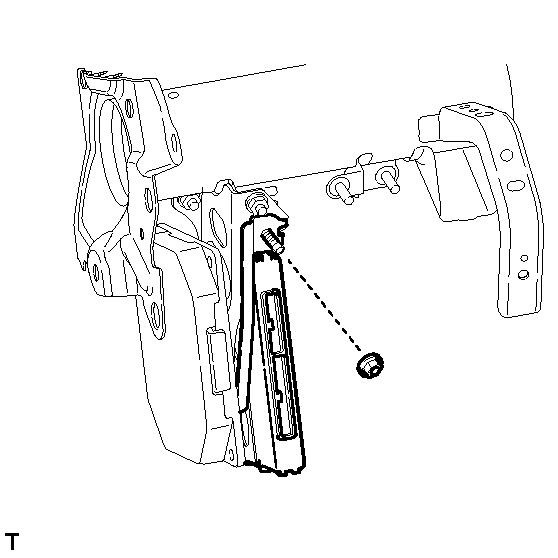

      Fig 1: Identifying Certification ECU Connectors And Nuts
      GTY110078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 connectors.
  2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY  . Refer to INSTALLATION - Step 2
  3. INSTALL NO. 1 INSTRUMENT CLUSTER MOLDING  . Refer to INSTALLATION - Step 27
  4. INSTALL INSTRUMENT SIDE PANEL LH  . Refer to INSTALLATION - Step 28
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
  6. REGISTER ECU CODE
    1. Register the ECU code. Refer to REGISTRATION .
