OIL LEVEL SENSOR (For AWD): Components: Illustration

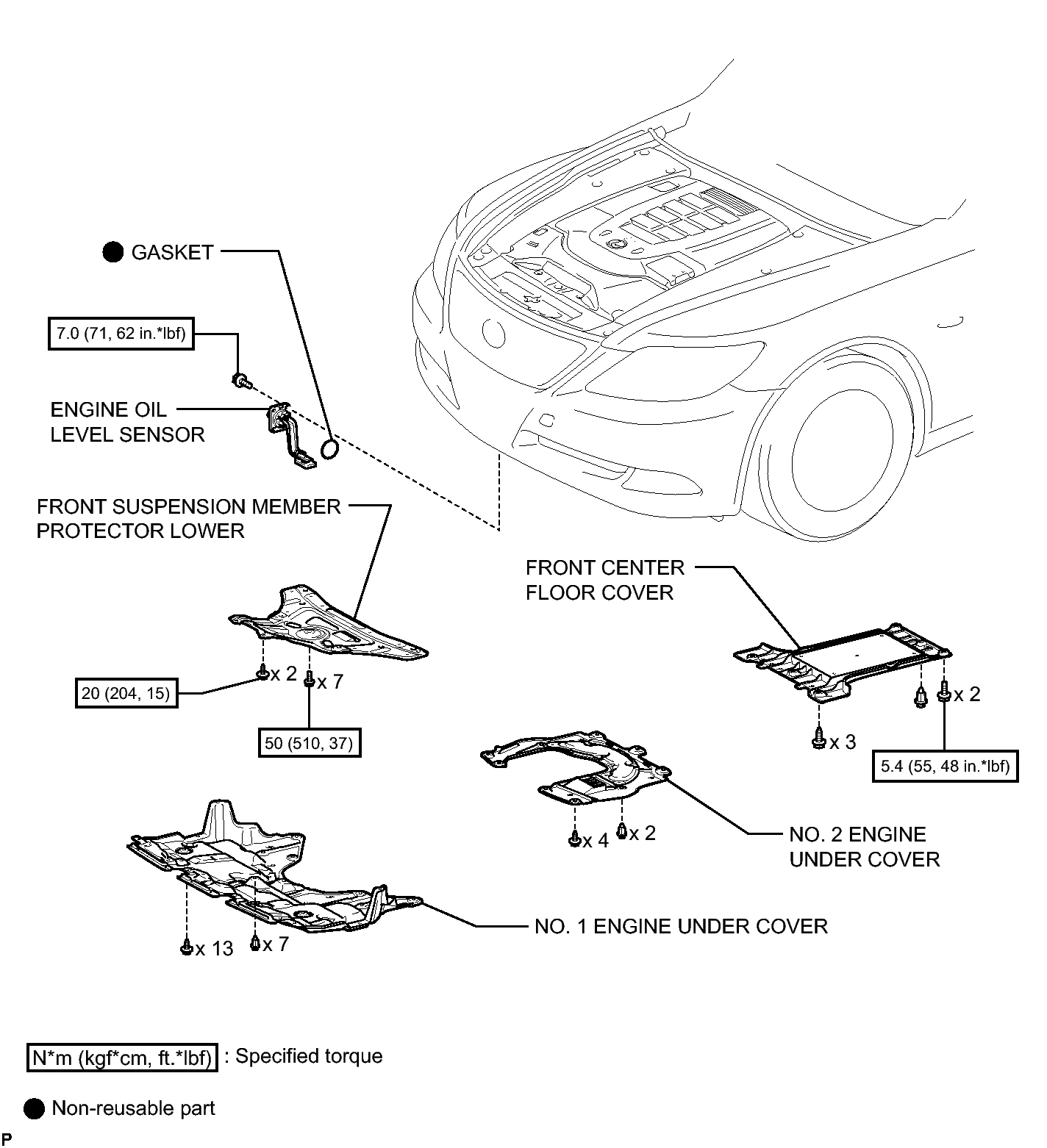

Fig 1: Identifying Oil Level Sensor Replacement Components With Torque Specifications (AWD)

GTY288397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
