Parts Location: Illustration

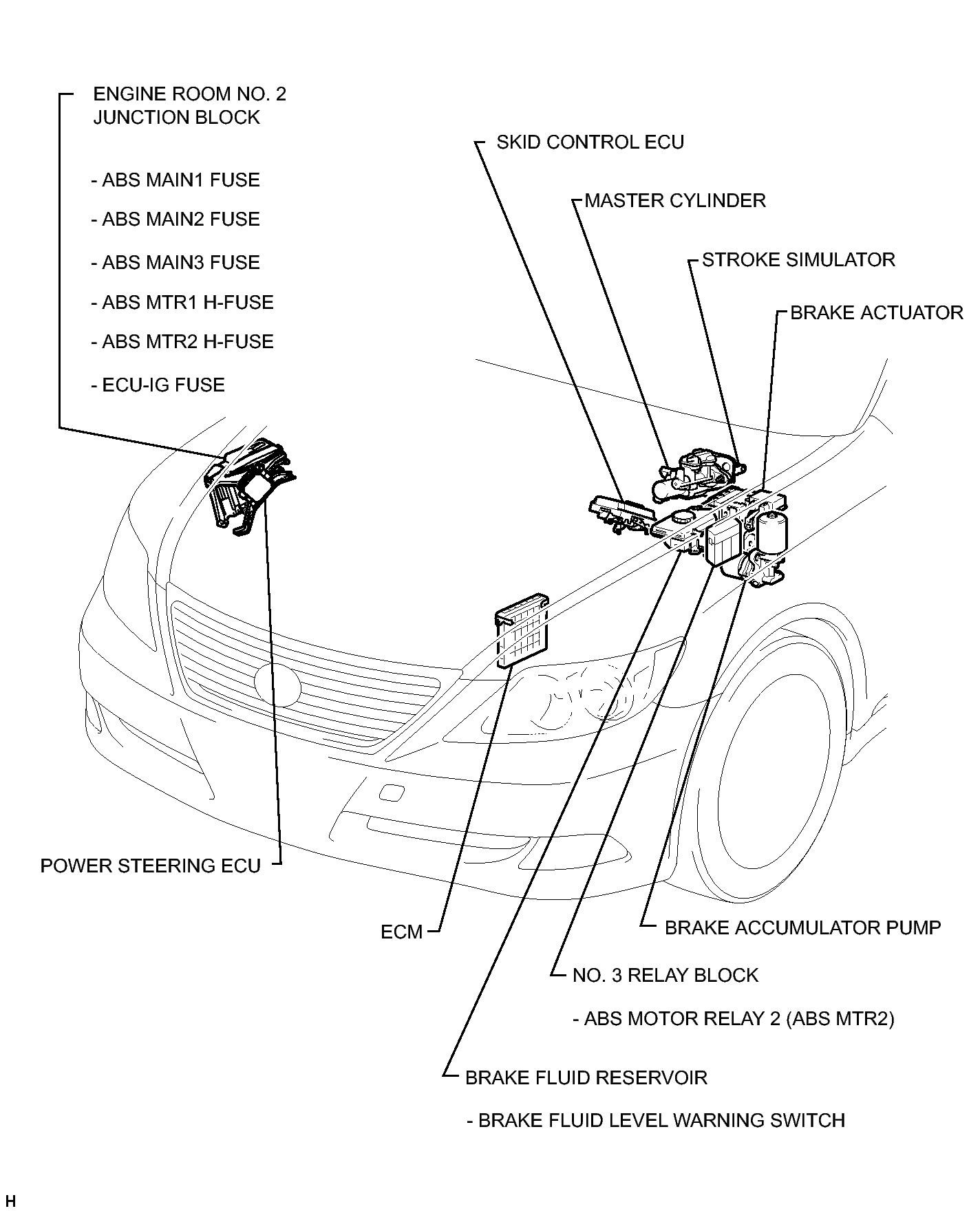

Fig 1: Identifying Electronically Controlled Brake System Components Location (1 Of 4)
GTY358881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

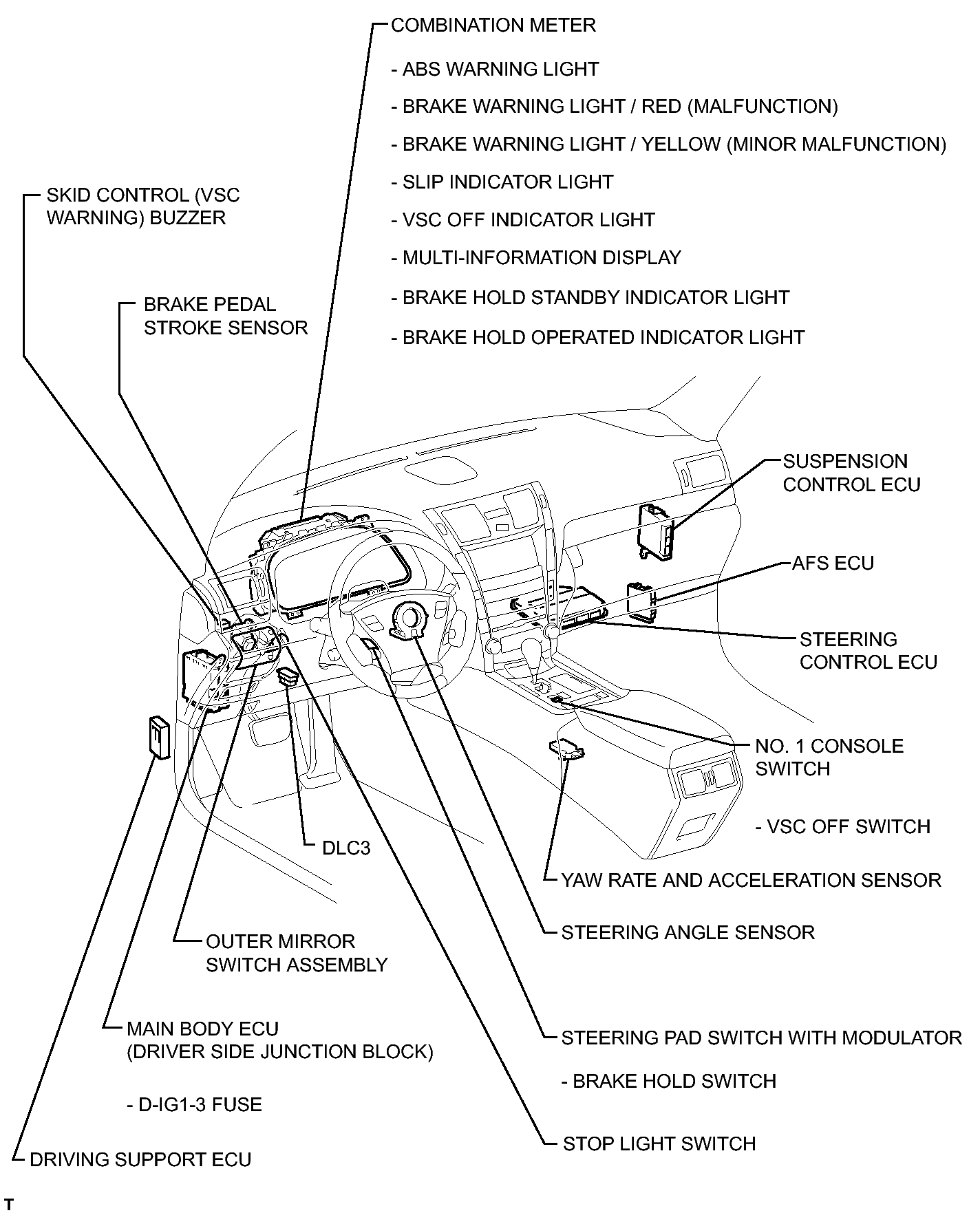

Fig 1: Identifying Electronically Controlled Brake System Components Location (2 Of 4)
GTY257124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

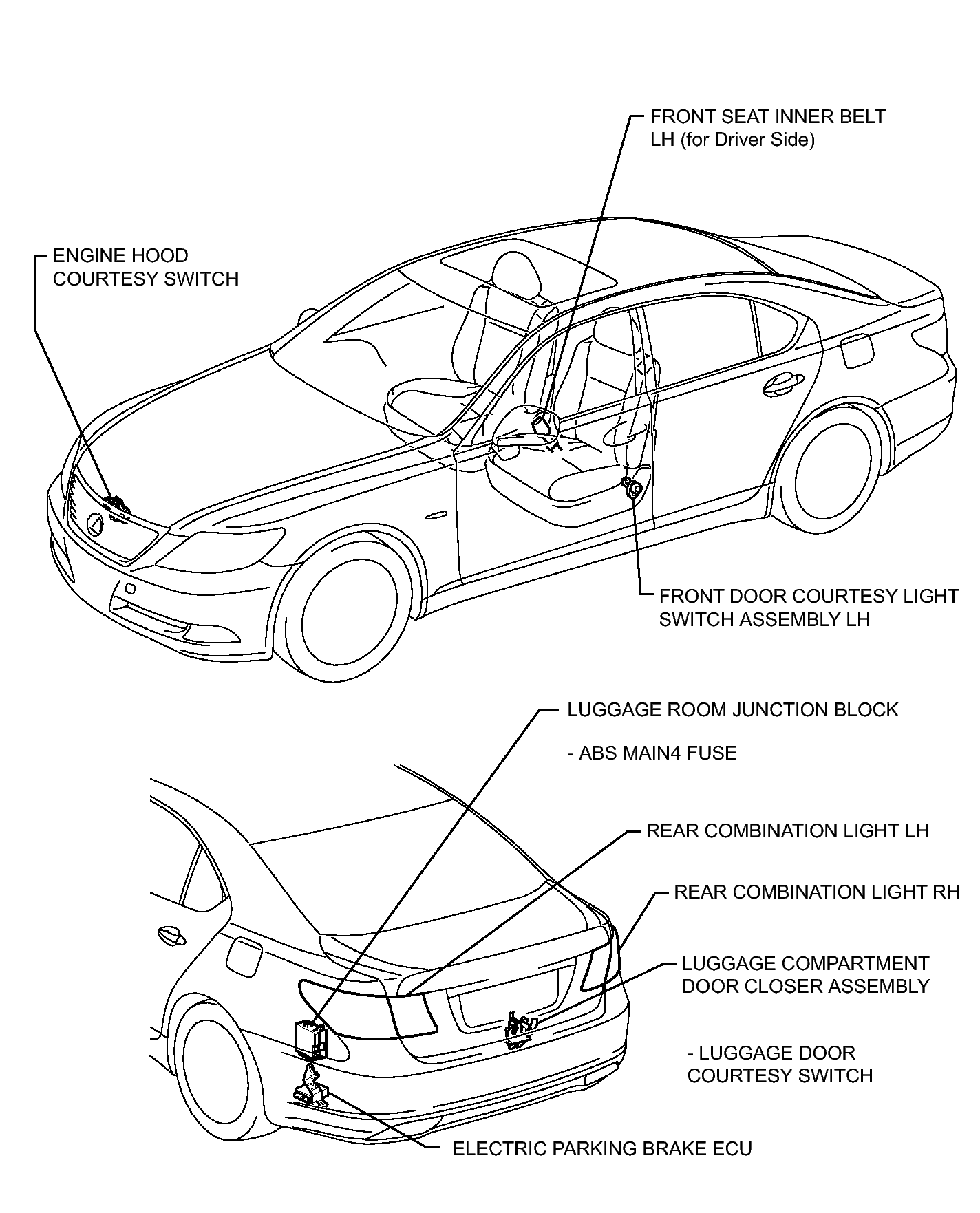

Fig 1: Identifying Electronically Controlled Brake System Components Location (3 Of 4)
GTY285429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

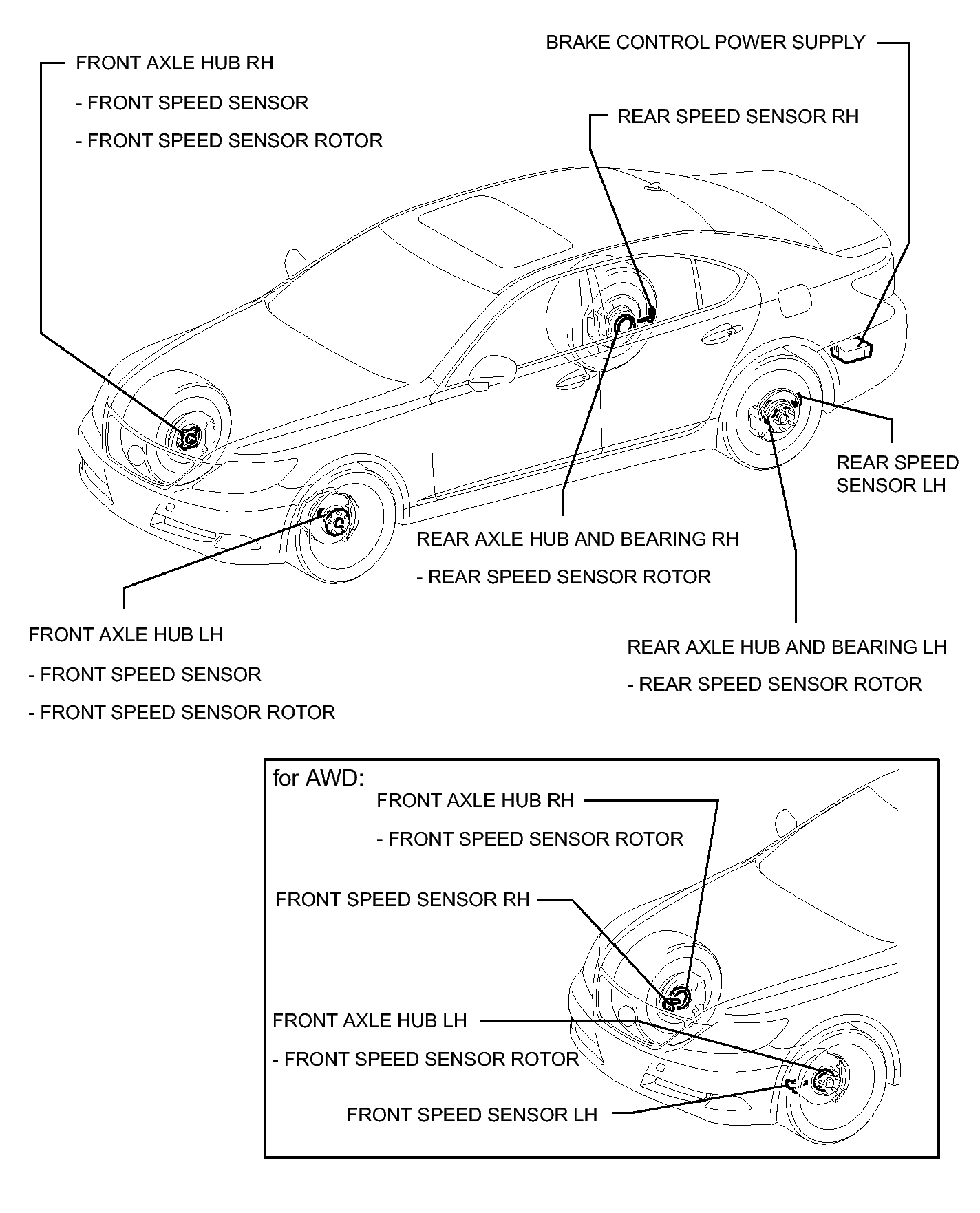

Fig 1: Identifying Electronically Controlled Brake System Components Location (4 Of 4)
GTY289474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
