Parts Location: Illustration

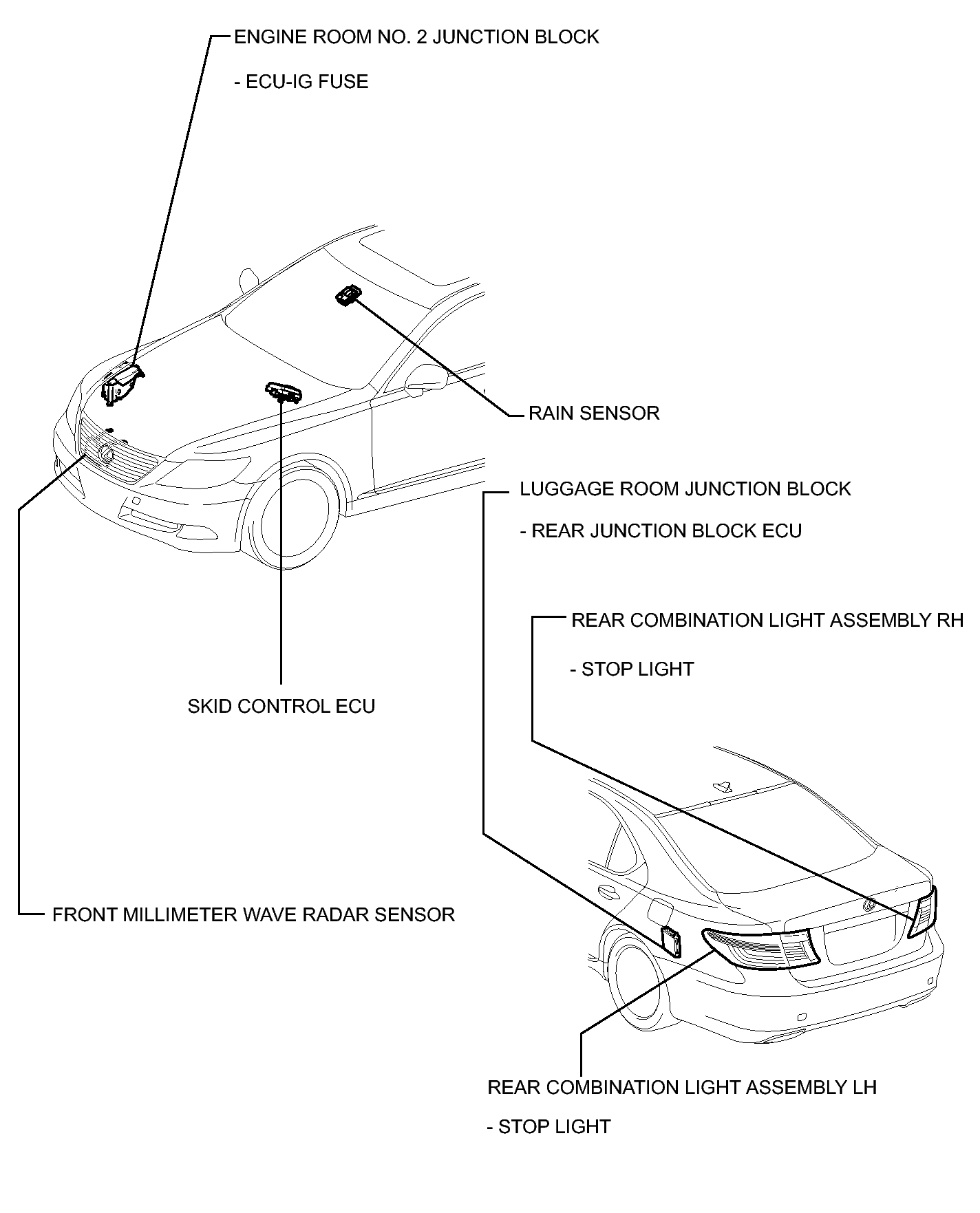

Fig 1: Identifying Dynamic Radar Cruise Control System Components Location (1 Of 2)
GTY289657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

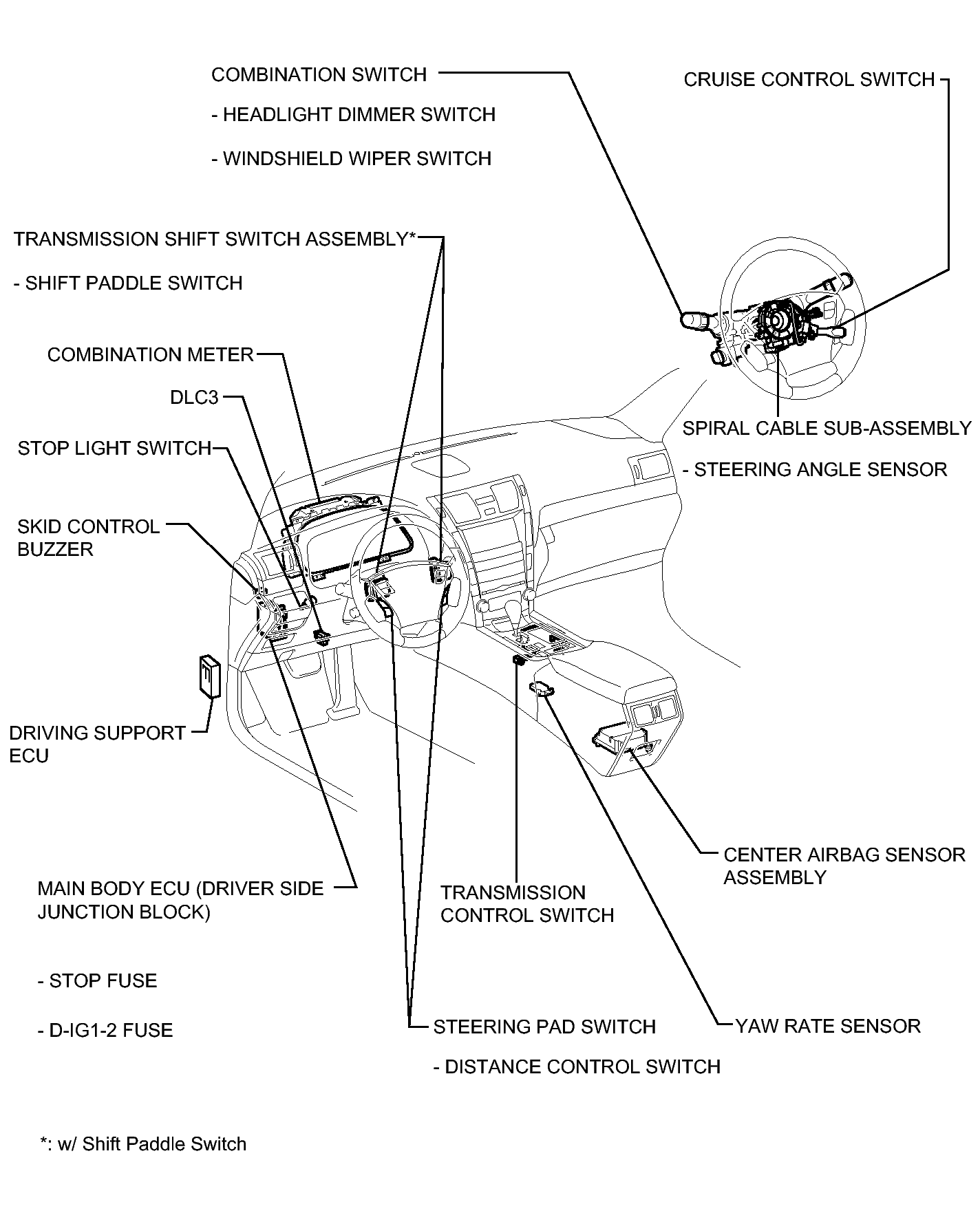

Fig 1: Identifying Dynamic Radar Cruise Control System Components Location (2 Of 2)
GTY347984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
