Solar Sensor: Components: Illustration

Fig 1: Identifying Solar Sensor Replacement Components (1 Of 6)
GTY358479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

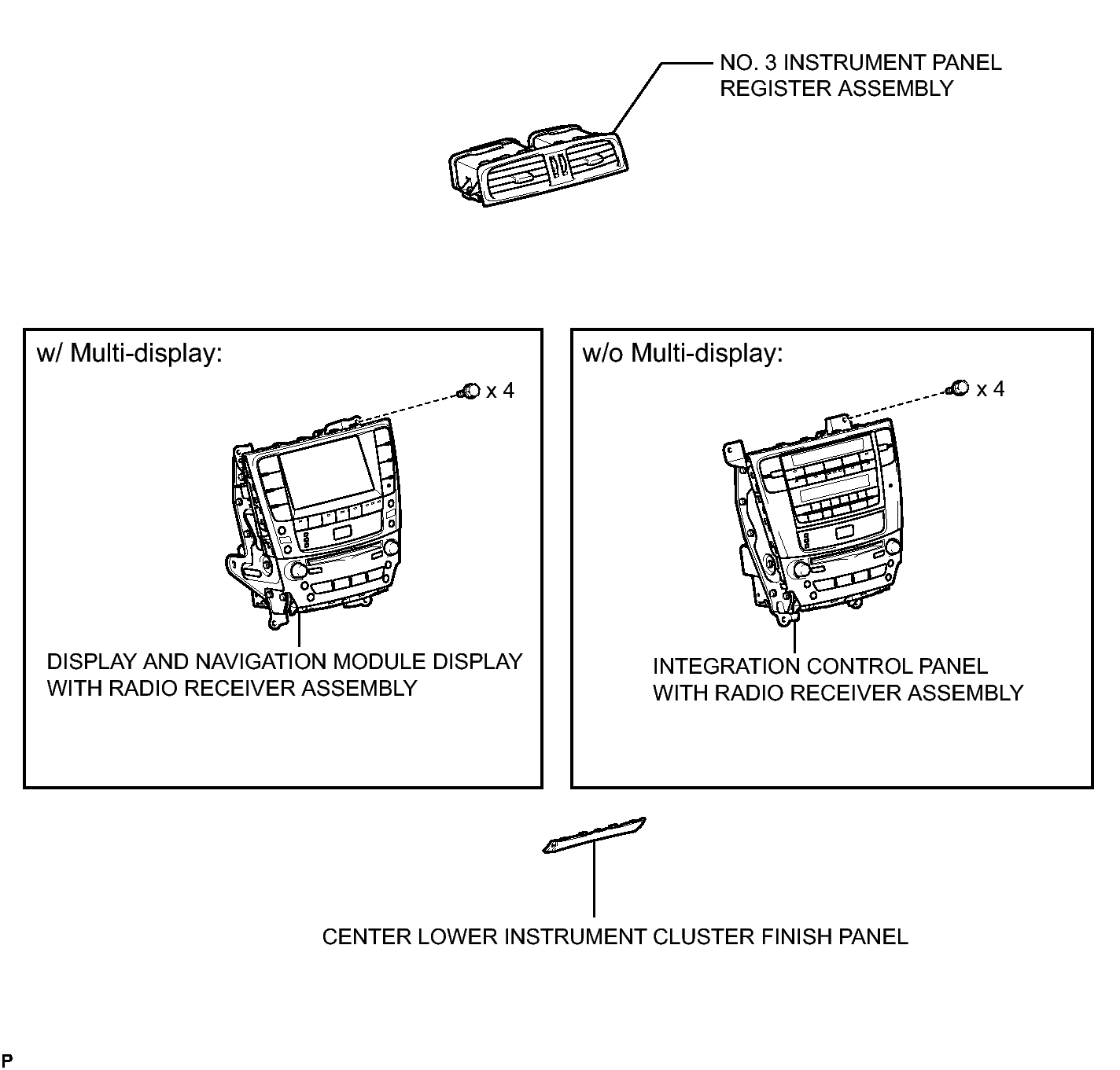

Fig 1: Identifying Solar Sensor Replacement Components (2 Of 6)
GTY394437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

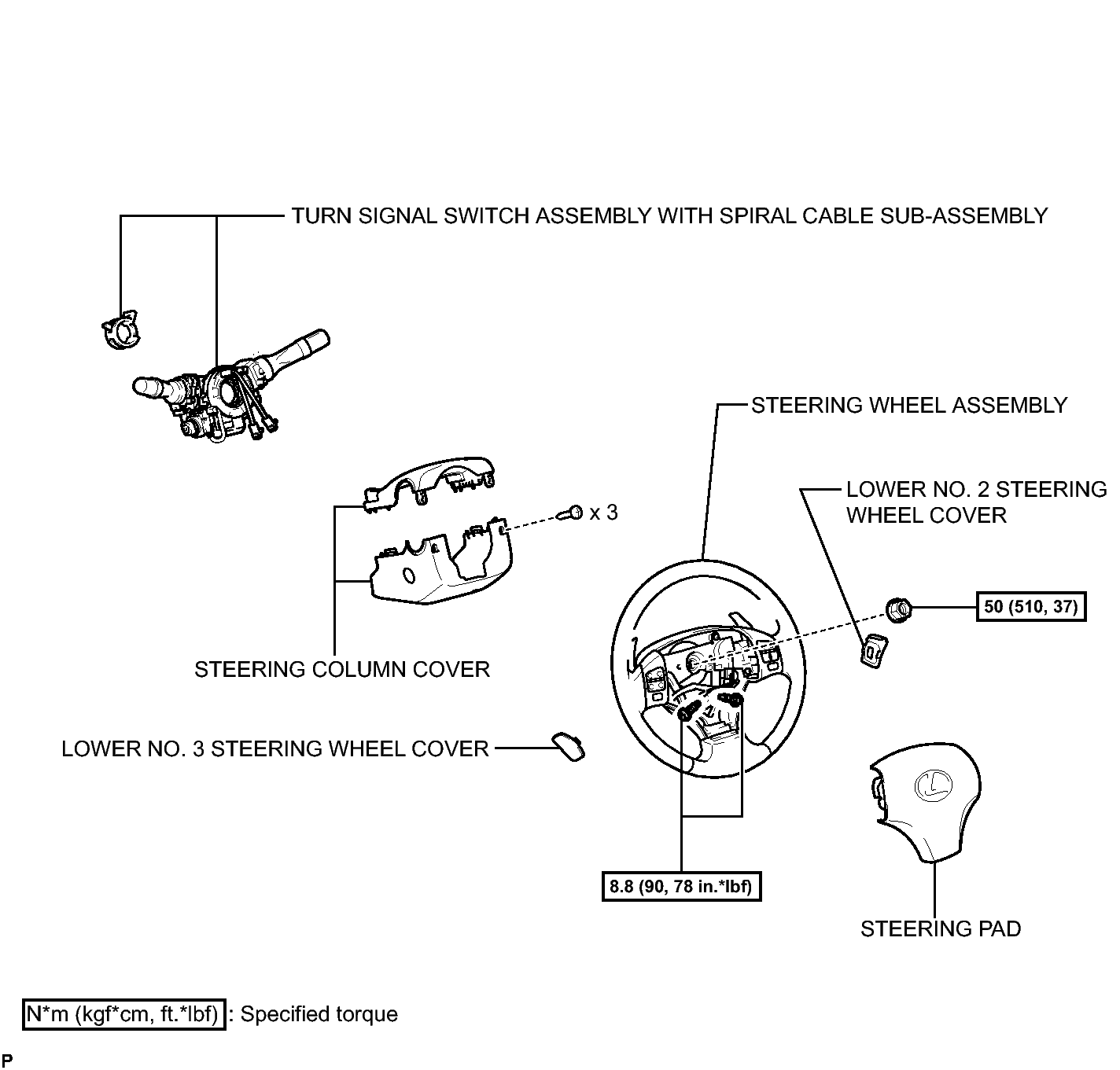

Fig 1: Identifying Solar Sensor Replacement Components With Torque Specifications (3 Of 6)
GTY115881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

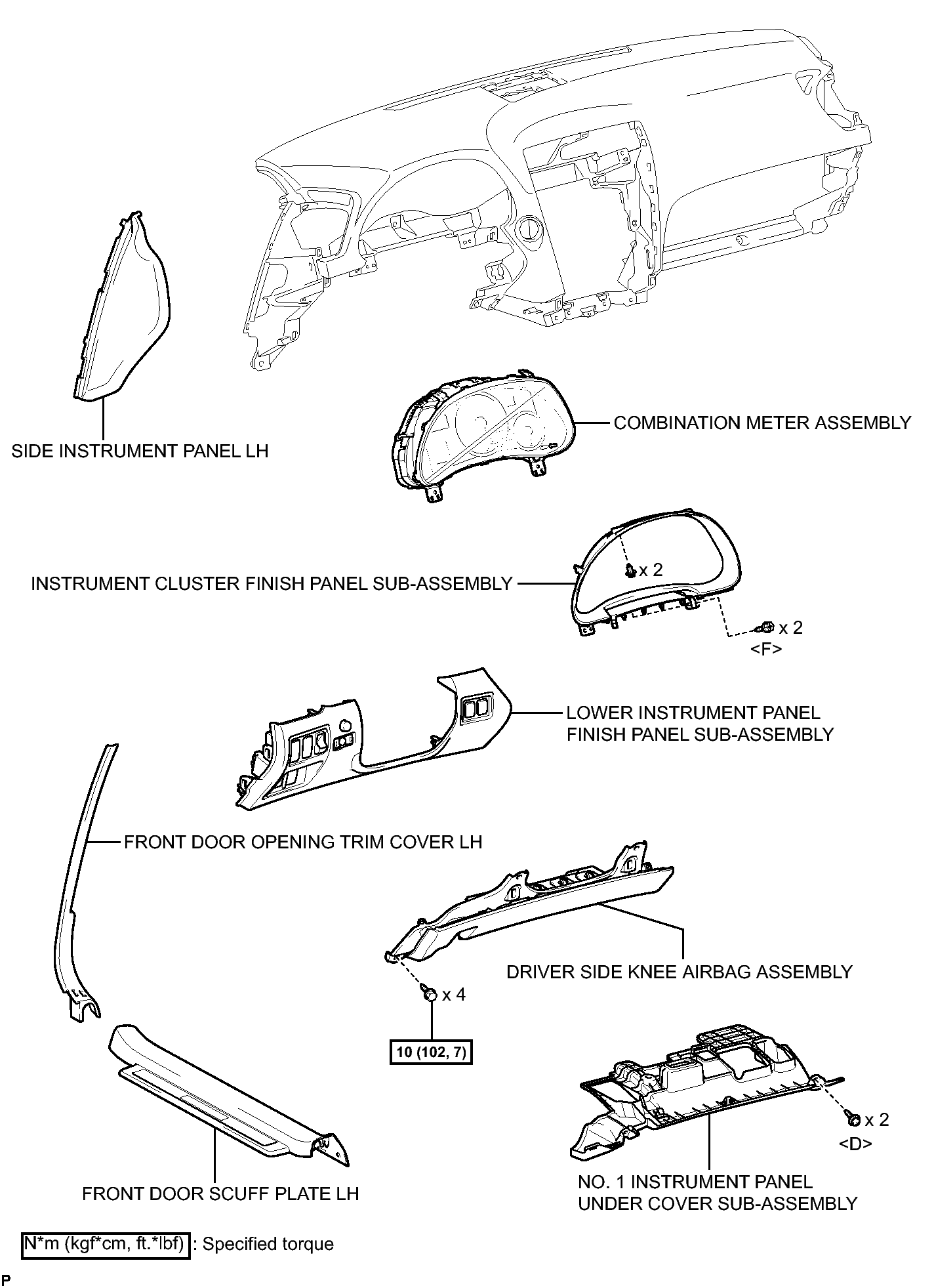

Fig 1: Identifying Solar Sensor Replacement Components With Torque Specifications (4 Of 6)
GTY349541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

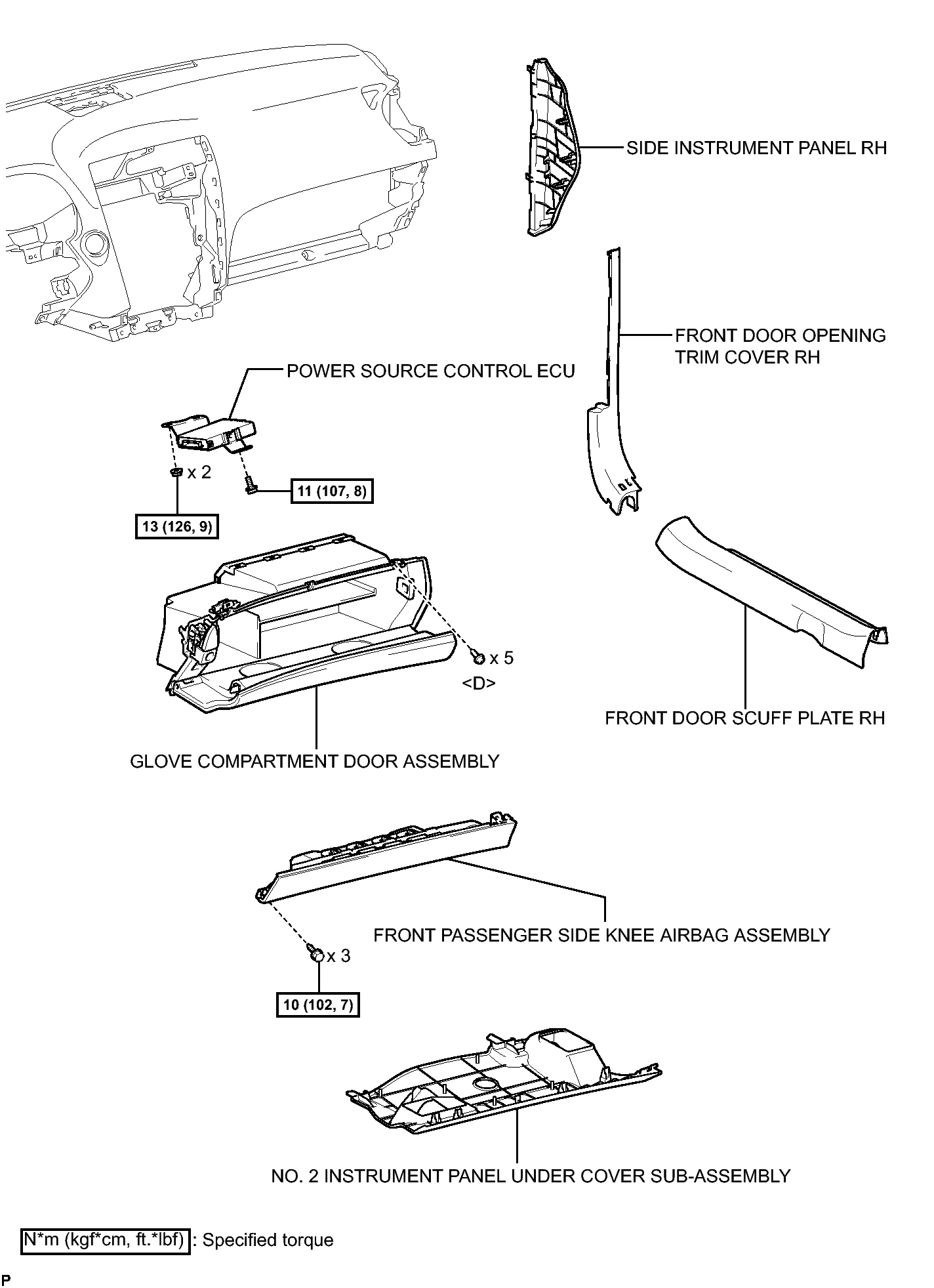

Fig 1: Identifying Solar Sensor Replacement Components With Torque Specifications (5 Of 6)
GTY263443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

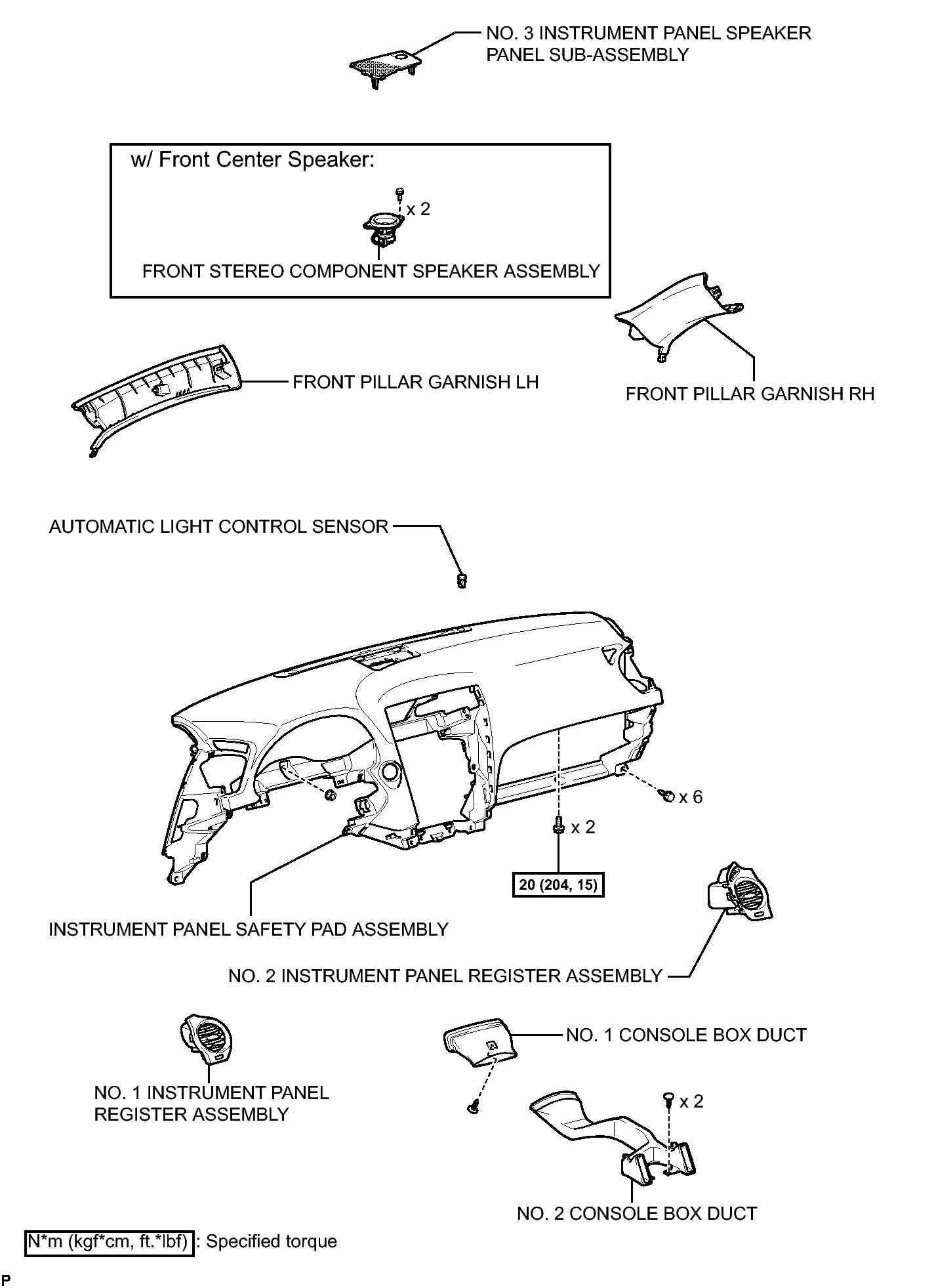

Fig 1: Identifying Solar Sensor Replacement Components With Torque Specifications (6 Of 6)
GTY286938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
