Air Conditioning System (Service Information): Compressor: Components: Illustration

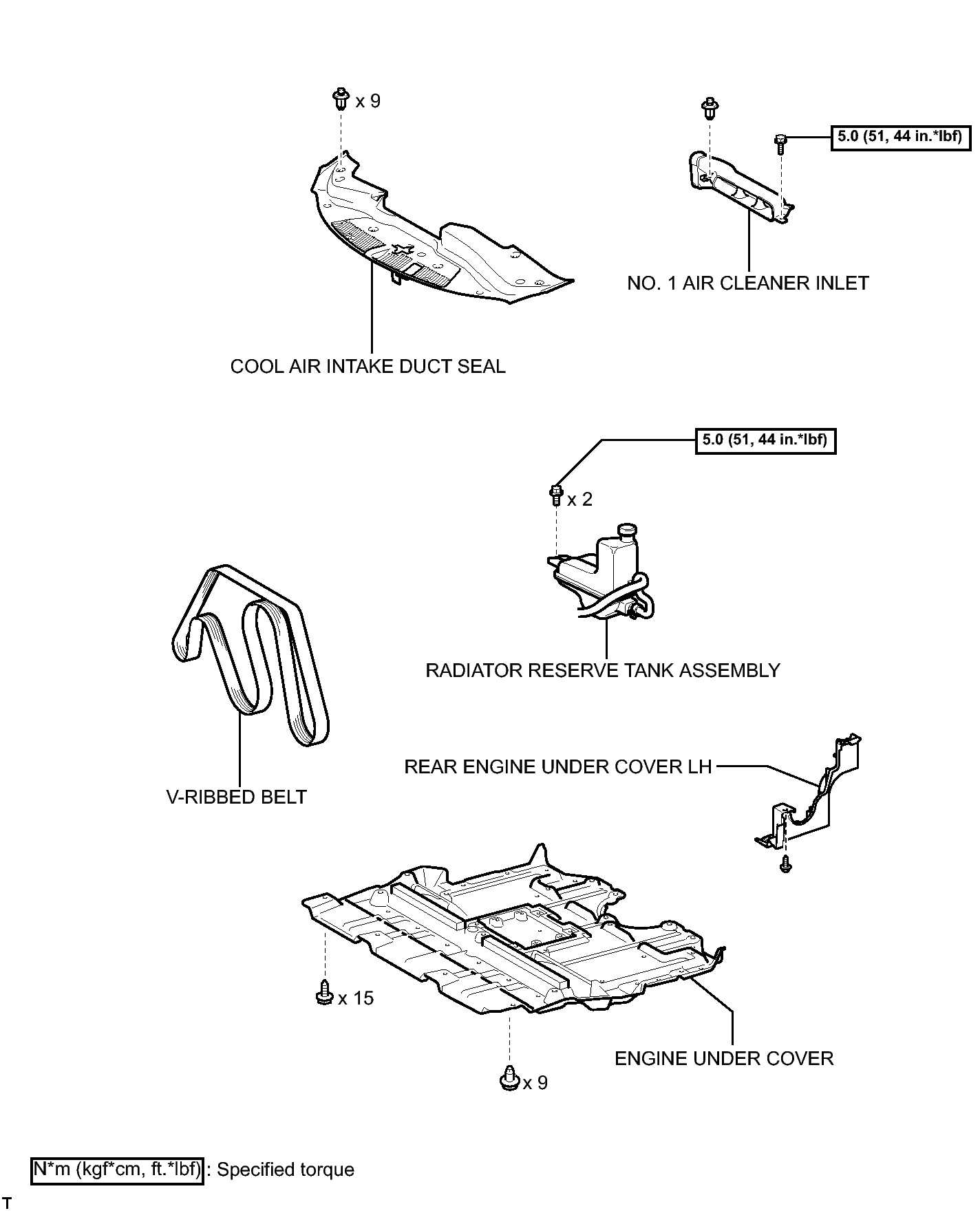

Fig 1: Identifying Compressor Replacement Components With Torque Specifications (1 Of 2)
GTY154252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

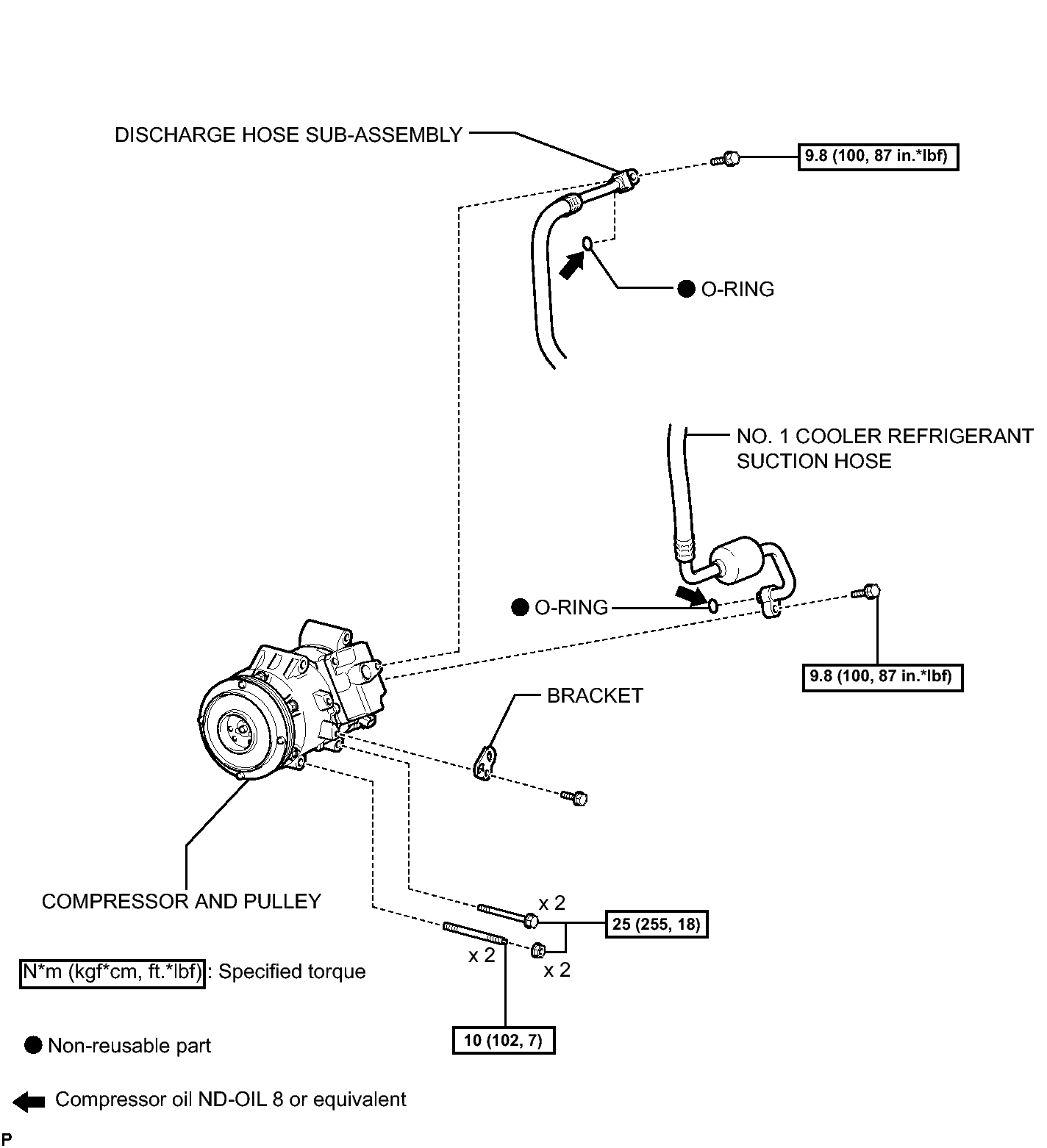

Fig 1: Identifying Compressor Replacement Components With Torque Specifications (2 Of 2)
GTY153541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
