EVAP System: Wiring Diagram

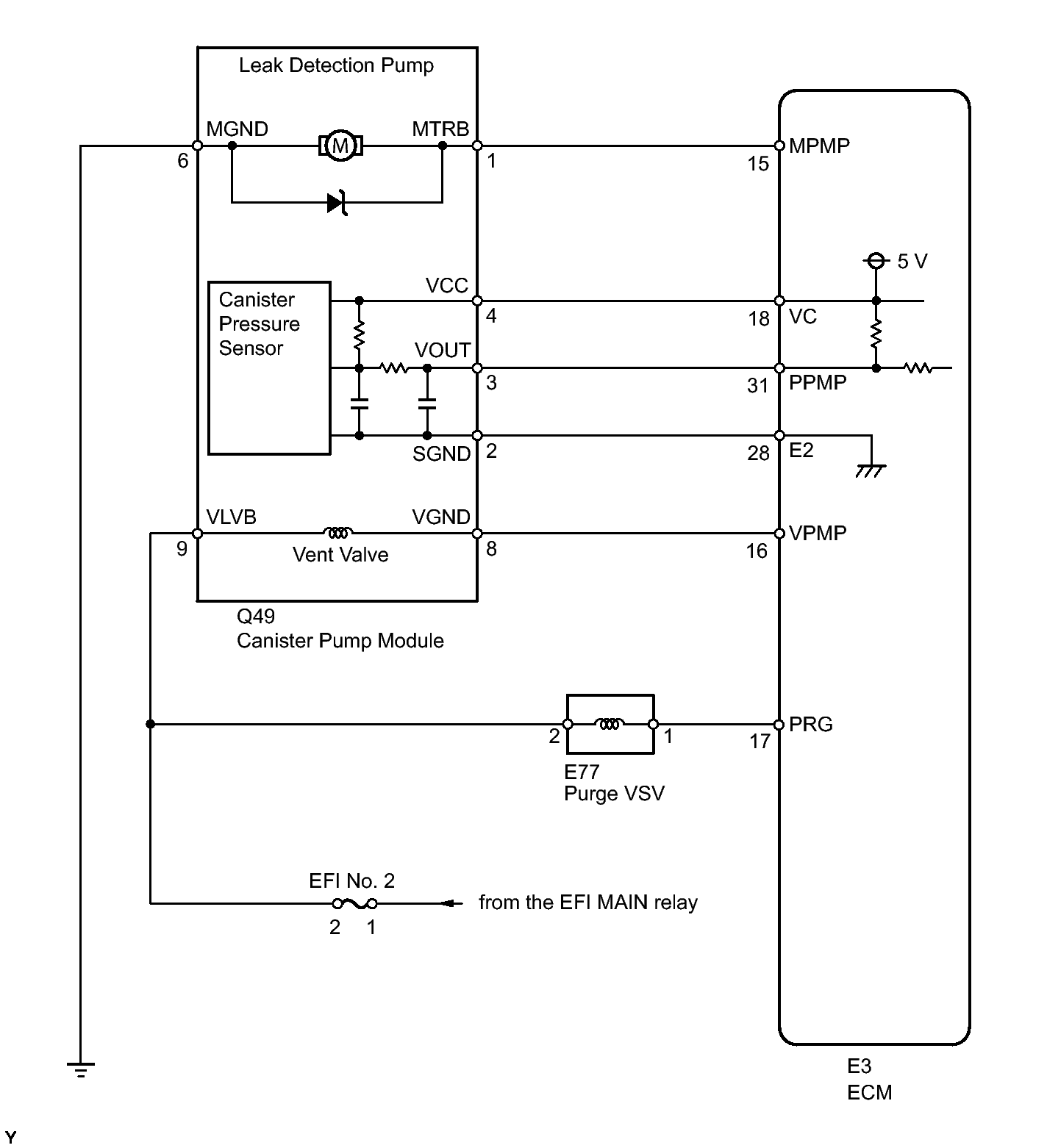

Fig 1: Leak Detection Pump Wiring Diagram

GTY277758

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
