Parts Location: Illustration

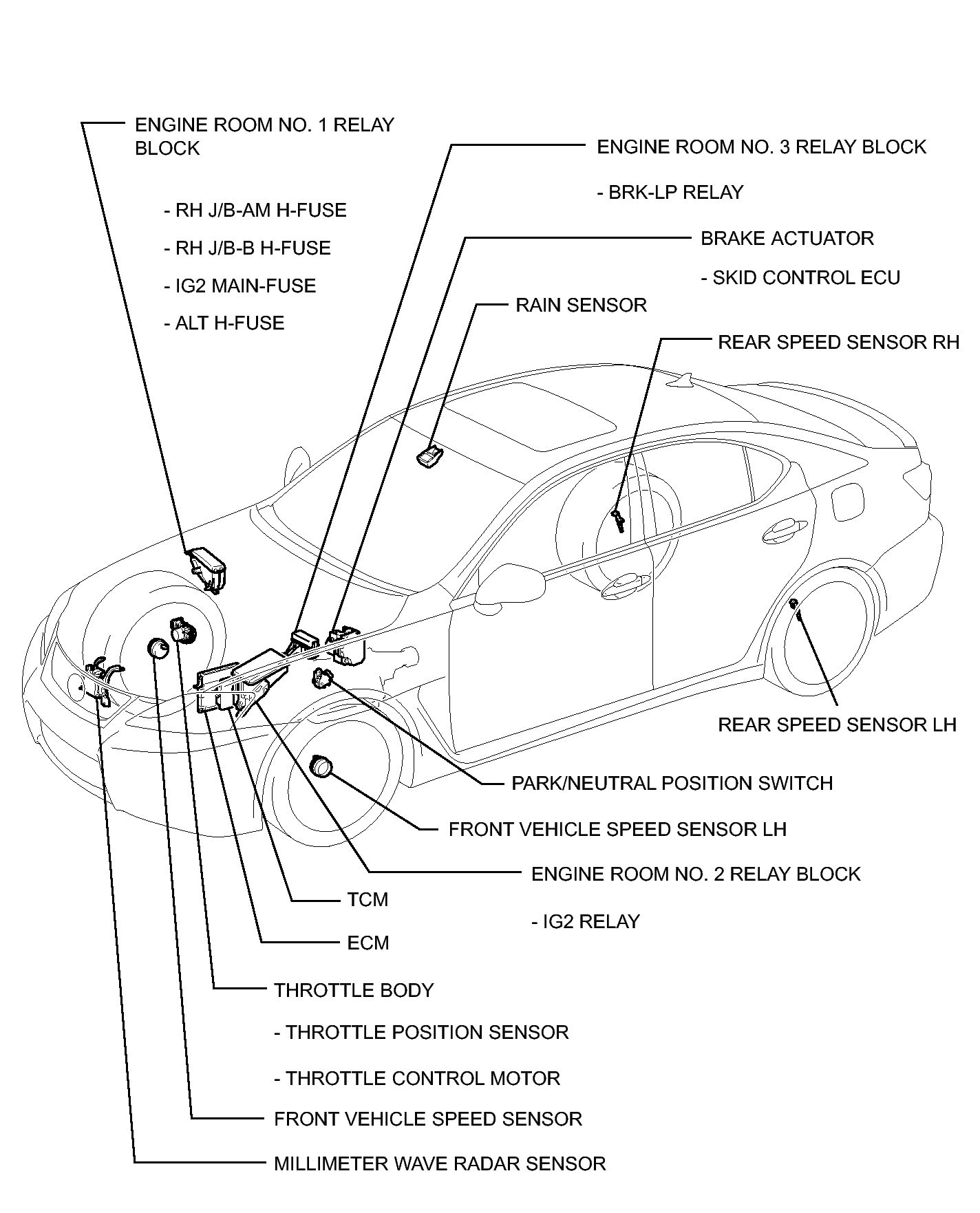

Fig 1: Identifying Dynamic Radar Cruise Control System Components Location (1 Of 3)
GTY354646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

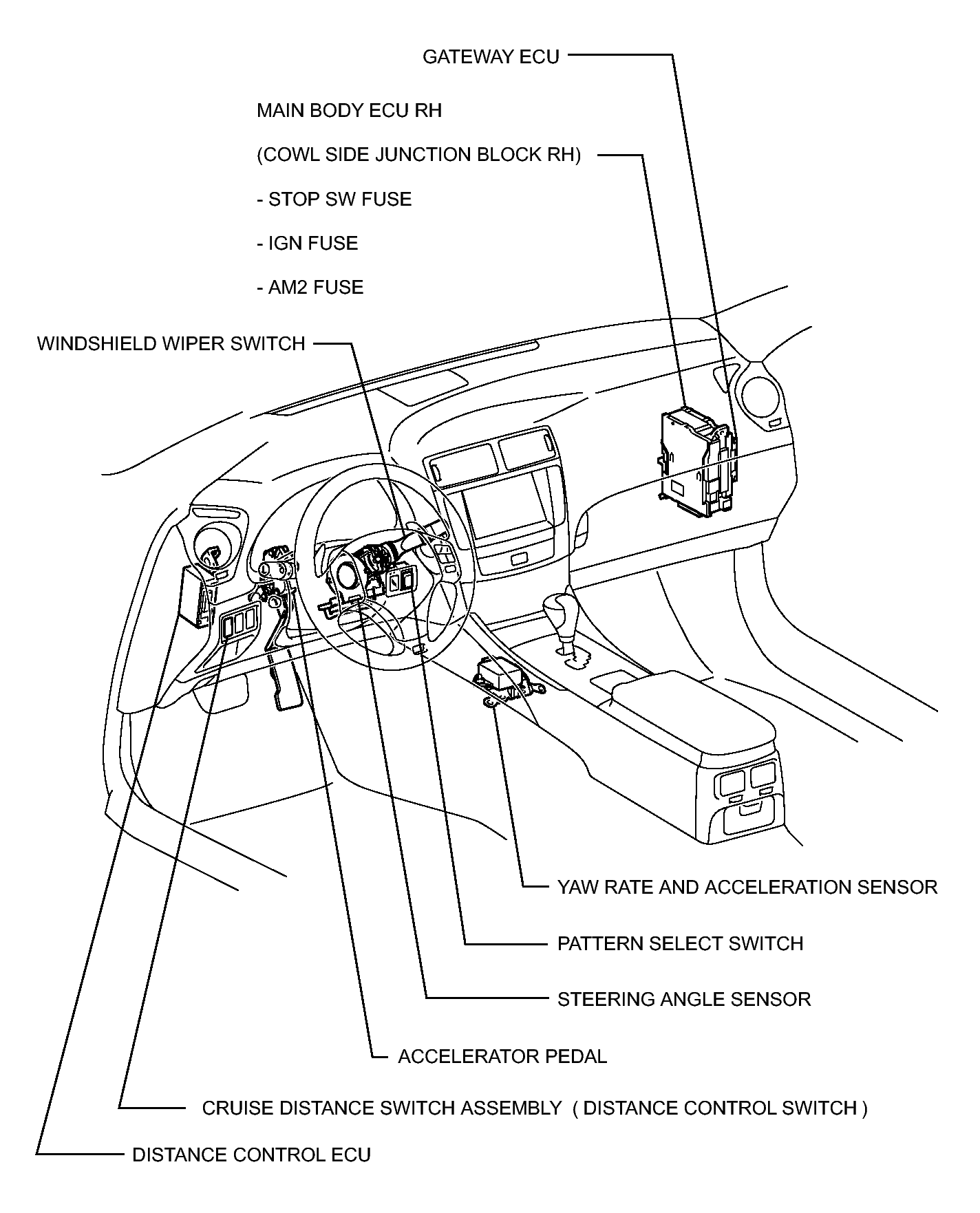

Fig 1: Identifying Dynamic Radar Cruise Control System Components Location (2 Of 3)
GTY358242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

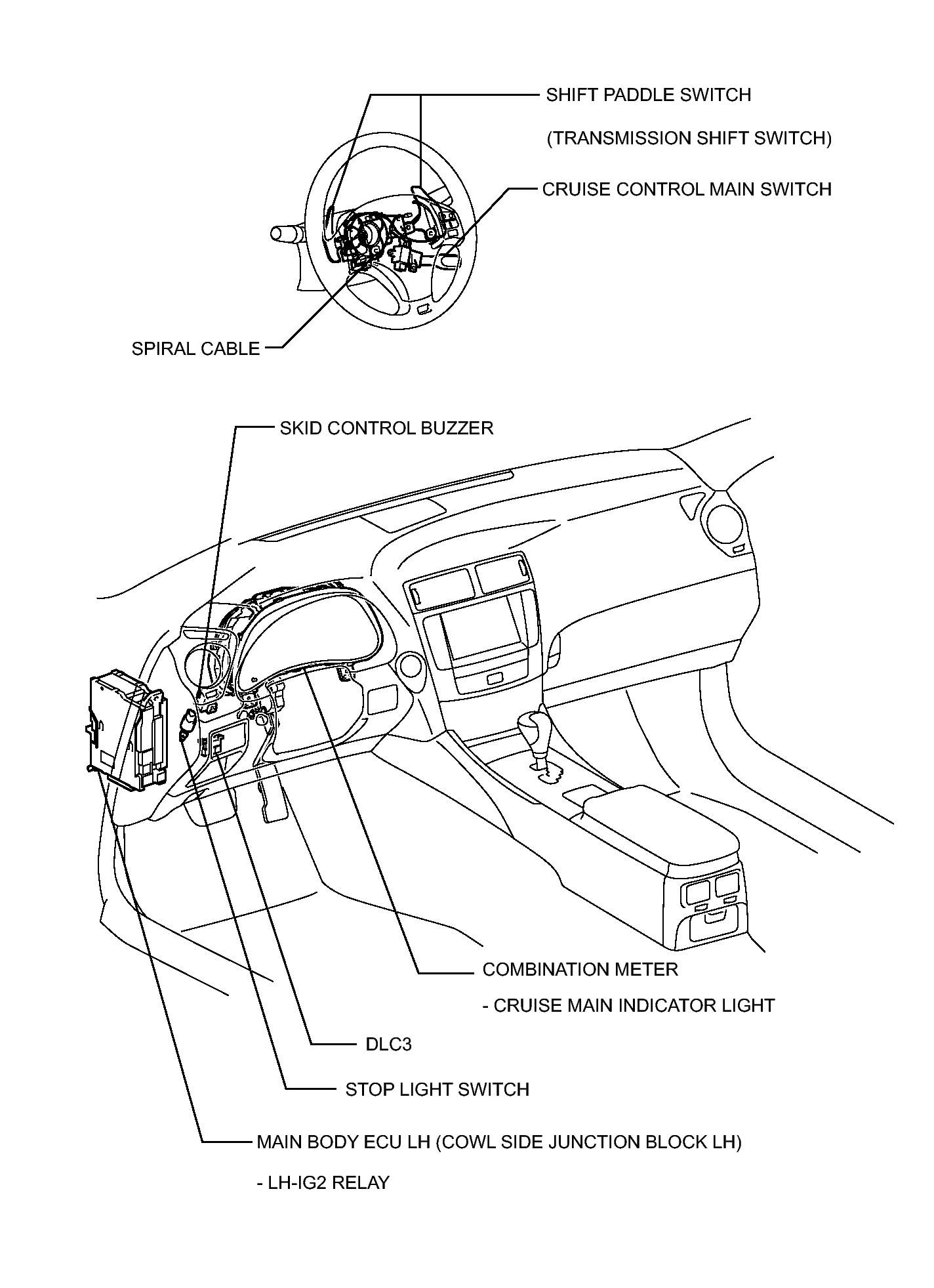

Fig 1: Identifying Dynamic Radar Cruise Control System Components Location (3 Of 3)
GTY358905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
