Cruise Control Switch Circuit: Wiring Diagram

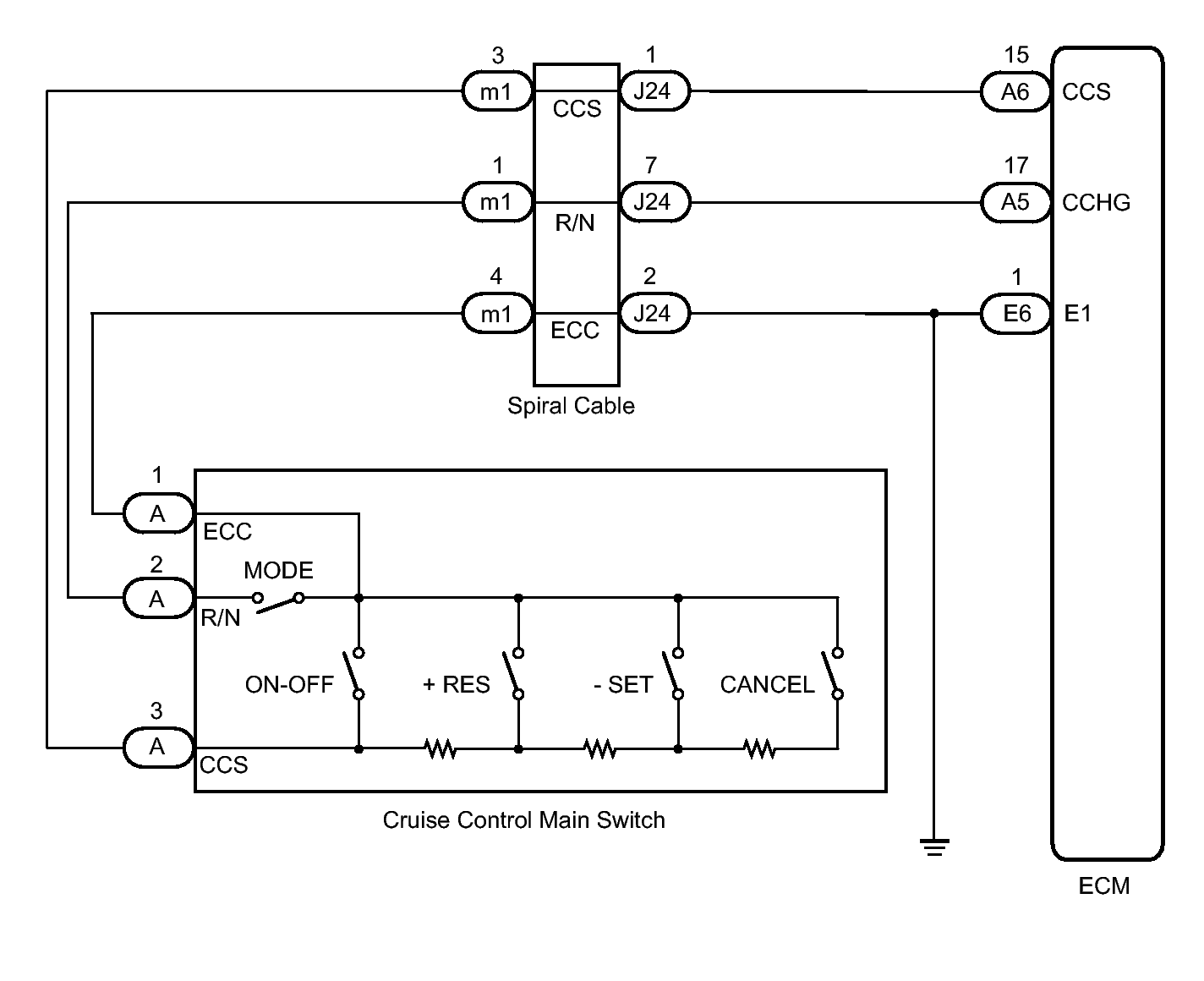

Fig 1: Identifying Cruise Control Switch -- Wiring Diagram

GTY154027

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
