Network Gateway Ecu: Components: Illustration

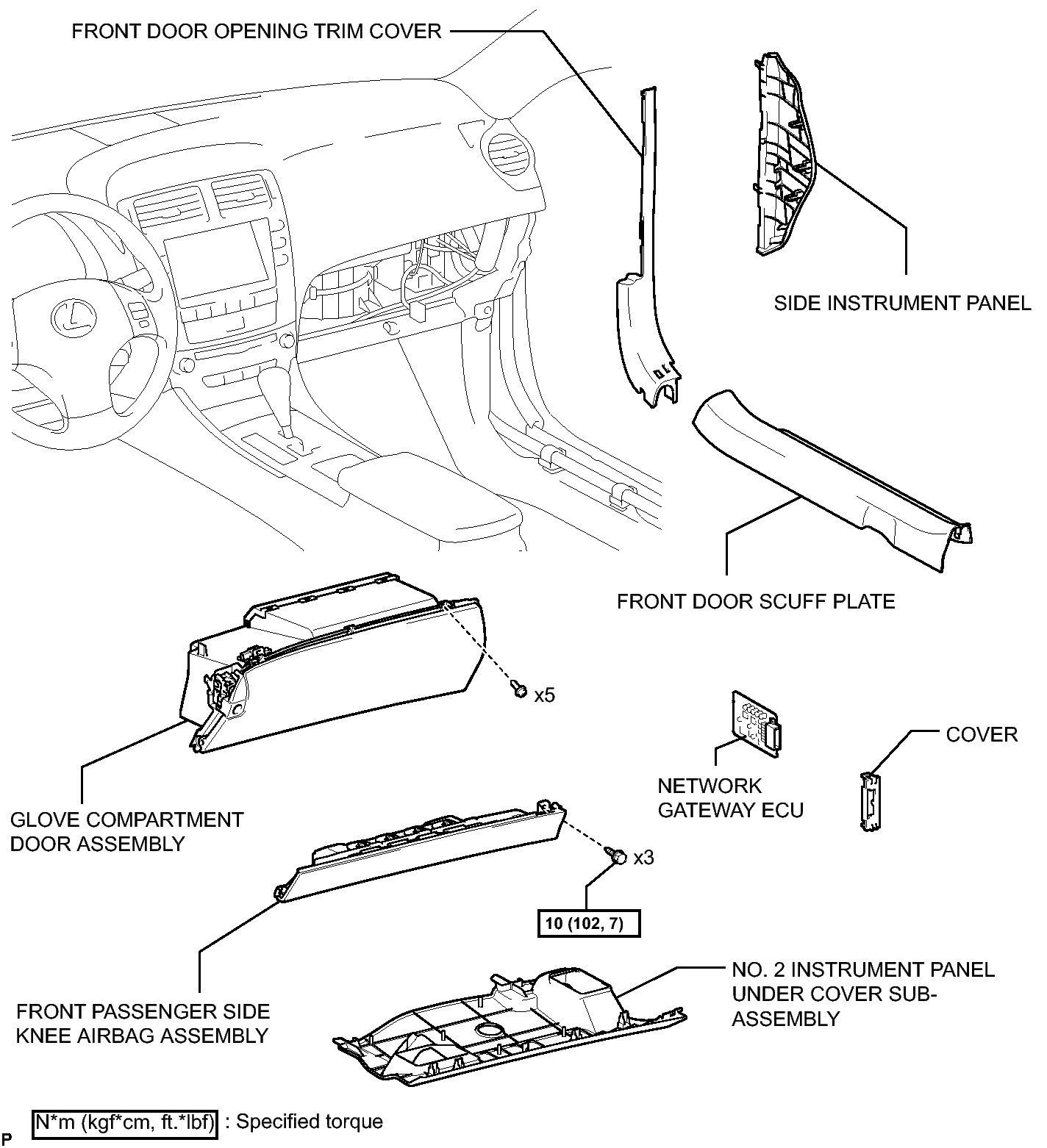

Fig 1: Identifying Network Gateway ECU Replacement Components With Torque Specifications

GTY149304

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
