Parts Location: Illustration

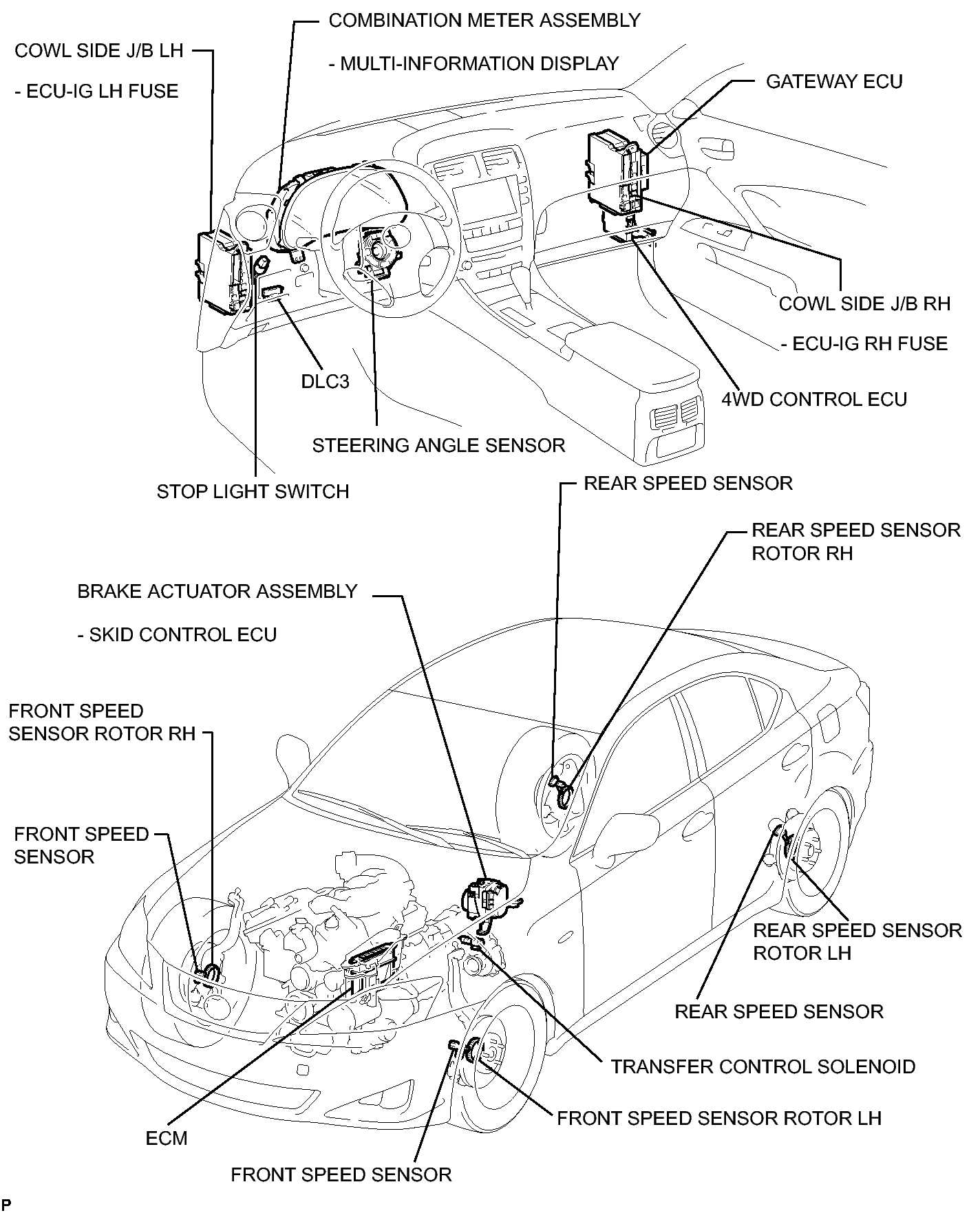

Fig 1: Identifying Four Wheel Drive Control System Components Location

GTY135024

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
