Automatic Transmission Unit: Disassembly: Disassembly

  1. REMOVE TRANSFER ASSEMBLY

    Refer to DISASSEMBLY

  2. REMOVE TRANSMISSION CONTROL SHAFT LEVER LH
    1. Remove the nut, spring washer and the transmission control shaft lever LH.
      Fig 1: Identifying Transmission Control Shaft Lever LH
      GTY106780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Using a screwdriver, unstake the lock washer.
      Fig 2: Identifying Park/Neutral Position Switch Assembly
      GTY106781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and lock washer.
    3. Remove the bolt and park/neutral position switch.

      HINT:

      Make sure that the manual valve lever shaft has not been rotated prior to installing the park/neutral position switch as the detent spring may become detached from the manual valve lever shaft.

  4. REMOVE TRANSMISSION OIL COOLER
    1. Remove the 3 bolts, transmission oil cooler and spacer.
      Fig 3: Identifying Transmission Oil Cooler Bolts
      GTY100631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the transmission oil cooler.
      Fig 4: Identifying Transmission Oil Cooler O-Rings & Covers
      GTY354723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 O-ring
      *2 Spacer
      *3 Transmission Oil Cooler
    3. Remove the 2 O-rings from the spacer.
  5. REMOVE TRANSMISSION REVOLUTION SENSOR
    1. Remove the 2 bolts and the 2 transmission revolution sensors.
      Fig 5: Identifying Transmission Revolution Sensors With Bolt
      GTY132496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from each sensor.
  6. REMOVE AUTOMATIC TRANSMISSION BREATHER TUBE
    1. Remove the 2 bolts.
      Fig 6: Identifying Automatic Transmission Breather Tube
      GTY106782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the breather tube.
  7. REMOVE AUTOMATIC TRANSMISSION HOUSING
    1. Remove the 10 bolts.
      Fig 7: Identifying Transmission Housing Bolts
      GTY106783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the transmission housing.
  8. FIX AUTOMATIC TRANSMISSION CASE SUB-ASSEMBLY
    1. Install the transmission case to an overhaul attachment.
      Fig 8: Identifying Transmission Case On Overhaul Attachment
      GTY142299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
    NOTE:

    Do not turn the transmission over as this will contaminate the valve body with foreign matter located at the bottom of the pan.

    1. Remove the overflow plug and the gasket.
      Fig 9: Identifying Oil Pan Bolts
      GTY101524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the drain plug and the gasket.
    3. Remove the 20 bolts, oil pan and gasket.
    4. Examine particles in the pan.
      Fig 10: Inspecting For Chips And Steel Particles In Pan
      GTY120828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 6 magnets from the oil and use them to collect any steel chips. Look carefully at the chips and particles in the pan and on the magnet to anticipate the type of wear which might be found in the transaxle.

        Steel (magnetic): bearing, gear and plate wear

        Brass (non-magnetic): bushing wear

  10. REMOVE VALVE BODY OIL STRAINER ASSEMBLY
    1. Turn over the transmission.
      Fig 11: Identifying Oil Strainer Bolts
      GTY100280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and valve body oil strainer assembly from the valve body.
    3. Remove the O-ring from the valve body oil strainer assembly.
      Fig 12: Removing O-Ring From Valve Body Oil Strainer Assembly
      GTY113603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE TRANSMISSION WIRE
    1. Remove the bolt and temperature sensor clamp, and disconnect the ATF temperature sensor.
      Fig 13: Location of ATF Temperature Sensor Locking Plate Bolt
      GTY106498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and disconnect the 2 clamp brackets.
      Fig 14: Identifying Clamps
      GTY104201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 9 connectors from the shift solenoid valves.
      Fig 15: Location of Solenoid Valves Connectors
      GTY104237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt from the transmission case.
    5. Pull the transmission wire out of the transmission case.
      Fig 16: Location of Transmission Internal Wiring Harness bolt
      GTY104188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the O-ring from the transmission wire.
      Fig 17: Identifying O-Ring From Transmission Wire
      GTY114281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE TRANSMISSION VALVE BODY ASSEMBLY
    1. Remove the bolt, detent spring cover and detent spring.
      Fig 18: Identifying Detent Spring And Detent Spring Cover
      GTY101604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 20 bolts and valve body assembly.
      Fig 19: Identifying Valve Body Assembly Bolts
      GTY143563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Separate the lever pin from the manual valve lever sub-assembly.
      Fig 20: Aligning Groove Of Manual Valve With Pin Of Lever
      GTY352689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE TRANSAXLE CASE GASKET
    1. Remove the 3 transaxle case gaskets.
      Fig 21: Identifying Transaxle Case Gaskets
      GTY128140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE BRAKE DRUM GASKET
    1. Remove the 3 brake drum gaskets.
      Fig 22: Identifying Brake Drum Gaskets
      GTY107757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE CHECK BALL BODY
    1. Remove the check ball body and the spring.
      Fig 23: Identifying Check Ball Body
      GTY359894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE C-2 ACCUMULATOR PISTON
    1. While blowing compressed air into the oil hole, remove the C-2 accumulator piston and the spring.

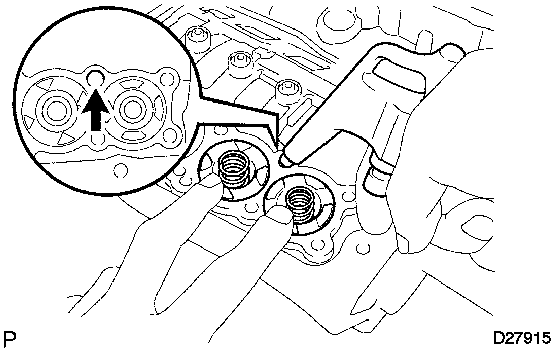

      Fig 24: Applying Compressed Air To Oil Hole
      GTY141658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the piston.
      NOTE:

      Take care as the C-3 and B-3 accumulator pistons may jump out.

  17. REMOVE B-3 ACCUMULATOR PISTON
    1. While blowing compressed air into the oil hole, remove the B-3 accumulator piston and the spring.
    2. Remove the 2 O-rings from the piston.
      NOTE:

      Take care as the C-3 accumulator piston may jump out.

  18. REMOVE C-3 ACCUMULATOR PISTON
    1. While blowing compressed air into the oil hole, remove the C-3 accumulator piston and the 2 springs.
      Fig 25: Blowing Compressed Air Into Oil Hole
      GTY149496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the piston.
  19. REMOVE B-1 ACCUMULATOR VALVE
    1. Remove the B-1 accumulator valve and the 2 springs.
      Fig 26: Identifying B-1 Accumulator Valve And Springs
      GTY123151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE PARKING LOCK PAWL BRACKET
    1. Remove the 3 bolts and the parking lock pawl bracket.
      Fig 27: Identifying Parking Lock Pawl Bracket
      GTY107836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE PARKING LOCK ROD SUB-ASSEMBLY
    1. Disconnect the parking lock rod from the manual valve lever.
      Fig 28: View Of Parking Lock Rod And Manual Valve Lever
      GTY103238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE PARKING LOCK PAWL SHAFT
    1. Pull out the parking lock pawl shaft from the front side, then remove the lock pawl and the parking lock pawl torsion spring.
      Fig 29: Identifying Parking Lock Pawl Shaft
      GTY140177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the parking lock pawl E-ring from the parking lock pawl shaft.
  23. REMOVE MANUAL VALVE LEVER SUB-ASSEMBLY
    1. Using a hammer and a screwdriver, cut off the spacer and remove it from the shaft.
      Fig 30: Cutting Off Spacer Driving Out Spring Pin Removing Oil Seals Identifying Transmission Case Bolts Pulling Out Oil Pump Identifying O-Ring And Oil Pump
      GTY121538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a pin punch and a hammer, drive out the spring pin.
      Fig 31: Driving Out Spring Pin Cutting Off Spacer Driving Out Spring Pin Removing Oil Seals Identifying Transmission Case Bolts Pulling Out Oil Pump Identifying O-Ring And Oil Pump
      GTY121831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Slowly drive out the spring pin so that it does not fall into the transmission case.

    3. Pull the manual valve lever shaft out through the case and remove the manual valve lever.
  24. REMOVE MANUAL VALVE LEVER SHAFT OIL SEAL
    1. Using a screwdriver, remove the 2 oil seals.
      Fig 32: Removing Oil Seals
      GTY348302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a RH Side
      *b LH Side
  25. REMOVE OIL PUMP ASSEMBLY
    1. Remove the 10 bolts from the transmission case.
      Fig 33: Identifying Transmission Case Bolts
      GTY143285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver with its tip wrapped with tape, pull out the oil pump.
      Fig 34: Pulling Out Oil Pump
      GTY124590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the oil pump.

    3. Remove the No. 1 thrust bearing race from the oil pump.
      Fig 35: Identifying O-Ring And Oil Pump
      GTY113010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the O-ring from the oil pump.
  26. REMOVE CLUTCH DRUM AND INPUT SHAFT
    1. Remove the clutch drum and input shaft assembly from the transmission case.
      Fig 36: Identifying Clutch Drum And Input Shaft Assembly From Transmission Case
      GTY149500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 2 clutch drum thrust washer, 2 thrust needle roller bearings and No. 1 thrust bearing race.
      Fig 37: Identifying Clutch Drum Thrust Washer, Thrust Needle Roller Bearings And Bearing Race
      GTY149731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSPECT NO. 2 ONE WAY CLUTCH ASSEMBLY  See step  20
  28. REMOVE NO. 2 ONE WAY CLUTCH ASSEMBLY
    1. Remove the No. 2 one way clutch assembly and No. 2 clutch drum thrust washer from the clutch drum and input shaft assembly.
      Fig 38: View Of 1 Way no. 2 Clutch Assembly And Clutch Drum Thrust Washer
      GTY107760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE NO. 3 BRAKE SNAP RING
    1. Using a screwdriver, remove the No. 3 brake snap ring from the transmission case.
      Fig 39: View Of Removing/Installing Snap Ring Using A Screwdriver
      GTY102057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE NO. 3 BRAKE DISC (for 4GR-FSE)
    1. Remove the No. 3 brake flange, cushion plate, 3 No. 3 brake discs and 3 No. 3 brake plates from the transmission case.
      Fig 40: Identifying Flange, Cushion Plate, 3 Discs And 3 Plates From Transmission Case
      GTY133180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE NO. 3 BRAKE DISC (for 2GR-FSE)
    1. Remove the No. 3 brake flange, cushion plate, 4 No. 3 brake discs and 4 No. 3 brake plates from the transmission case.
      Fig 41: Identifying 2nd Brake Disc Set
      GTY358504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSPECT NO. 3 BRAKE DISC  See step  19
  33. REMOVE 2ND BRAKE PISTON HOLE SNAP RING
    1. Using SST, remove the snap ring.
      Fig 42: Identifying Snap Ring
      GTY126001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09350-30020
        • 09350-07060
  34. REMOVE ONE WAY CLUTCH ASSEMBLY
    1. Remove the one way clutch assembly and the No. 1 planetary carrier thrust washer from the transmission case.
      Fig 43: Identifying One Way Clutch Assembly And Thrust Washer
      GTY107716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE 2ND BRAKE CYLINDER
    1. Remove the 2nd brake cylinder from the transmission case.
      Fig 44: Identifying 2nd Brake Cylinder
      GTY107717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE 2ND BRAKE PISTON
    1. Using SST, a screwdriver and a press, remove the 2nd brake piston hole snap ring.
      Fig 45: Identifying Snap Ring
      GTY101067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09351-40010
        • 09351-04060
        • 09351-04070
    2. Remove the No. 1 brake piston return spring sub-assembly.
    3. Hold the 2nd brake cylinder and apply compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi) to the 2nd brake cylinder to remove the 2nd brake piston.
      Fig 46: Applying Compressed Air To 2nd Brake Cylinder
      GTY149607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 O-rings from the 2nd brake piston.

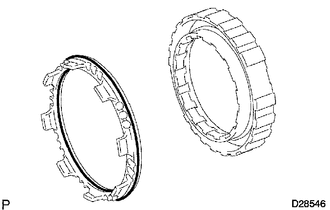

      Fig 47: View Of Removing O-Rings From 2nd Brake Piston
      GTY107798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSPECT NO. 3 BRAKE PISTON RETURN SPRING SUB-ASSEMBLY  See step  18
  38. REMOVE FRONT PLANETARY GEAR ASSEMBLY
    1. Remove the front planetary gear assembly and the one way clutch inner race from the transmission case.
      Fig 48: View Of Front Planetary Gear Assembly
      GTY101766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the thrust needle roller bearing, the No. 3 thrust bearing race and the No. 2 planetary carrier thrust washer from the front planetary gear.
      Fig 49: Identifying Thrust Needle Roller Bearing, No. 3 Thrust Bearing Race And No. 2 Planetary Carrier Thrust Washer
      GTY134385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSPECT FRONT PLANETARY GEAR ASSEMBLY  See step  14
  40. INSPECT ONE WAY CLUTCH ASSEMBLY  See step  15
  41. REMOVE FRONT PLANETARY RING GEAR
    1. Remove the front planetary ring gear from the transmission case.
      Fig 50: Identifying Front Planetary Ring Gear
      GTY107901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE CENTER PLANETARY RING GEAR
    1. Using a screwdriver, remove the front planetary ring gear shaft snap ring.
      Fig 51: Removing Snap Ring
      GTY126967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the center planetary ring gear and the front planetary ring gear flange from the front planetary ring gear.
      Fig 52: Identifying Center Planetary Ring Gear And Front Planetary Ring Gear Flange
      GTY107903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the thrust needle roller bearing from the front planetary ring gear flange.
  43. REMOVE NO. 1 BRAKE DISC
    1. Remove the No. 1 brake flange, the 3 No. 1 brake discs and the 3 No. 1 brake plates from the transmission case.
      Fig 53: Identifying Brake Disc No. 1
      GTY134082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSPECT NO. 1 BRAKE DISC  See step  17
  45. REMOVE BRAKE PISTON RETURN SPRING SNAP RING
    1. Using a screwdriver, remove the brake piston return spring snap ring from the transmission case.
      Fig 54: Identifying Brake Piston Return Spring Snap Ring
      GTY134254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE BRAKE PISTON RETURN SPRING SUB-ASSEMBLY
    1. Remove the brake piston return spring, the No. 1 brake piston and the No. 1 brake cylinder from the transmission case.
      Fig 55: Identifying Brake Piston Return Spring
      GTY100090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. INSPECT BRAKE PISTON RETURN SPRING SUB-ASSEMBLY  See step  13
  48. REMOVE NO. 1 BRAKE PISTON
    1. Hold the No. 1 brake cylinder and apply compressed air (392 kPa, 4 kgf/cm2 , 57 psi) to the No. 1 brake cylinder to remove the No. 1 brake piston.
      Fig 56: Applying Compressed Air To Brake Cylinder No. 1 For Removing Brake Piston No. 1
      GTY149513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the piston does not pop out with compressed air, lift the piston out with needle-nose pliers.

    2. Remove the 2 O-rings from the No. 1 brake piston.
  49. REMOVE NO. 2 BRAKE DISC (for 4GR-FSE)
    1. Using a screwdriver, remove the No. 2 brake snap ring from the transmission case.
      Fig 57: Removing Brake No. 2 Snap Ring From Transmission Case
      GTY133643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 No. 2 brake flanges, No. 2 brake piston return spring sub-assembly, 3 No. 2 brake discs and 2 No. 2 brake plates from the transmission case.
      Fig 58: Identifying Flanges, Brake Piston Return Spring, Discs And Plates
      GTY112705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE NO. 2 BRAKE DISC (for 2GR-FSE)
    1. Using a screwdriver, remove the No. 2 brake snap ring from the transmission case.
      Fig 59: Removing Brake No. 2 Snap Ring From Transmission Case
      GTY133643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 No. 2 brake flanges, No. 2 brake piston return spring sub-assembly, 4 No. 2 brake discs and 3 No. 2 brake plates from the transmission case.
      Fig 60: Identifying 2 Flanges, Brake Piston Return Spring, 4 Discs And 3 Plates
      GTY149734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. INSPECT NO. 2 BRAKE DISC  See step  9
  52. INSPECT NO. 2 BRAKE PISTON RETURN SPRING SUB-ASSEMBLY  See step  10
  53. REMOVE NO. 2 BRAKE PISTON
    1. Hold the No. 2 brake piston and apply compressed air (392 kPa, 4 kgf/cm2 , 57 psi) to the transmission case to remove the No. 2 brake piston and the No. 2 brake bearing race cylinder.
      Fig 61: Applying Compressed Air To Transmission Case
      GTY149515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the piston does not pop out with compressed air, lift the piston out with needle-nose pliers.

    2. Remove the piston from the cylinder.
    3. Remove the 2 O-rings from the No. 2 brake piston.
  54. REMOVE CENTER PLANETARY GEAR ASSEMBLY
    1. Remove the center planetary gear assembly, the planetary sun gear and the No. 4 thrust bearing race from the transmission case.
      Fig 62: Identifying Center Planetary Gear Assembly
      GTY106994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  55. INSPECT CENTER PLANETARY GEAR ASSEMBLY  See step  8
  56. REMOVE INTERMEDIATE SHAFT
    1. Using SST, remove the snap ring from the transmission case.
      Fig 63: Identifying Snap Ring
      GTY122555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09350-30020
        • 09350-07060
    2. Remove the intermediate shaft with the No. 3 one way clutch assembly from the transmission case.
      Fig 64: Removing Intermediate Shaft
      GTY149517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. INSPECT NO. 3 ONE WAY CLUTCH ASSEMBLY  See step  7
  58. REMOVE NO. 3 ONE WAY CLUTCH ASSEMBLY
    1. Remove the No. 3 one way clutch assembly and the one way clutch inner race from the intermediate shaft.
      Fig 65: View Of 1 Way No. 3 Clutch Assembly & Intermediate Shaft Inner Race
      GTY107750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE REAR PLANETARY RING GEAR FLANGE SUB-ASSEMBLY
    1. Remove the No. 8 thrust bearing race, the thrust needle roller bearing, the No. 7 thrust bearing race and the planetary ring gear flange from the intermediate shaft.
      Fig 66: Identifying No. 8 Thrust Bearing Race And Thrust Needle Roller Bearing
      GTY149533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. INSPECT REAR PLANETARY RING GEAR FLANGE SUB-ASSEMBLY  See step  6
  61. INSPECT INTERMEDIATE SHAFT  See step  5
  62. REMOVE BRAKE PLATE STOPPER SPRING
    1. Remove the brake plate stopper spring from the transmission case.
      Fig 67: Identifying Brake Plate Stopper Spring
      GTY107732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  63. REMOVE NO. 4 BRAKE DISC
    1. Remove the rear cover sleeve, 4 No. 4 brake plates, 4 No. 4 brake discs and No. 4 brake flange from the transmission case.
      Fig 68: Identifying Brake Disc No. 4
      GTY102011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  64. INSPECT NO. 4 BRAKE DISC  See step  4
  65. REMOVE REAR PLANETARY GEAR ASSEMBLY
    1. Remove the rear planetary gear assembly from the transmission case.
      Fig 69: Identifying Rear Planetary Gear Assembly
      GTY134463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 thrust needle roller bearings from the rear planetary gear assembly.
      Fig 70: Identifying Thrust Needle Roller Bearings And Rear Planetary Gear Assembly
      GTY112524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the No. 9 thrust bearing race from the transmission case.
      Fig 71: Identifying No. 9 Thrust Bearing Race
      GTY104087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  66. INSPECT REAR PLANETARY GEAR ASSEMBLY  See step  2
  67. REMOVE 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY
    1. Place SST on the 1st and reverse brake return spring sub-assembly and compress the brake return spring.
      Fig 72: Compressing Brake Return Spring
      GTY149707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09350-30020
        • 09350-07050
    2. Using the SST, remove the 1st and reverse brake return spring shaft snap ring and the brake return spring.
      • SST: 09350-30020
        • 09350-07070
  68. INSPECT 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY  See step  1
  69. REMOVE 1ST AND REVERSE BRAKE PISTON
    1. Hold the 1st and reverse brake piston and blow compressed air (392 kPa, 4 kgf/cm2 , 57 psi) into the transmission case to remove the 1st and reverse brake piston.
      Fig 73: Applying Compressed Air Into Transmission Case
      GTY141144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the piston does not pop out with compressed air, lift the piston out with needle-nose pliers.

    2. Remove the brake apply tube from the piston.
    3. Remove the O-ring from the 1st and reverse brake piston.
  70. REMOVE BRAKE REACTION SLEEVE
    1. Using SST, remove the brake reaction sleeve.
      Fig 74: Identifying Reaction Sleeve
      GTY141654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09350-30020
        • 09350-07080
    2. Remove the 2 O-rings from the brake reaction sleeve.
  71. REMOVE NO. 4 BRAKE PISTON
    1. Using SST, remove the No. 4 brake piston.
      Fig 75: Identifying No. 4 Brake Piston
      GTY138971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09350-30020
        • 09350-07080
    2. Remove the 2 O-rings from the No. 4 brake piston.
scientia non olet · About Mike's Workshop Manuals
