Power Steering Ecu: Components: Illustration

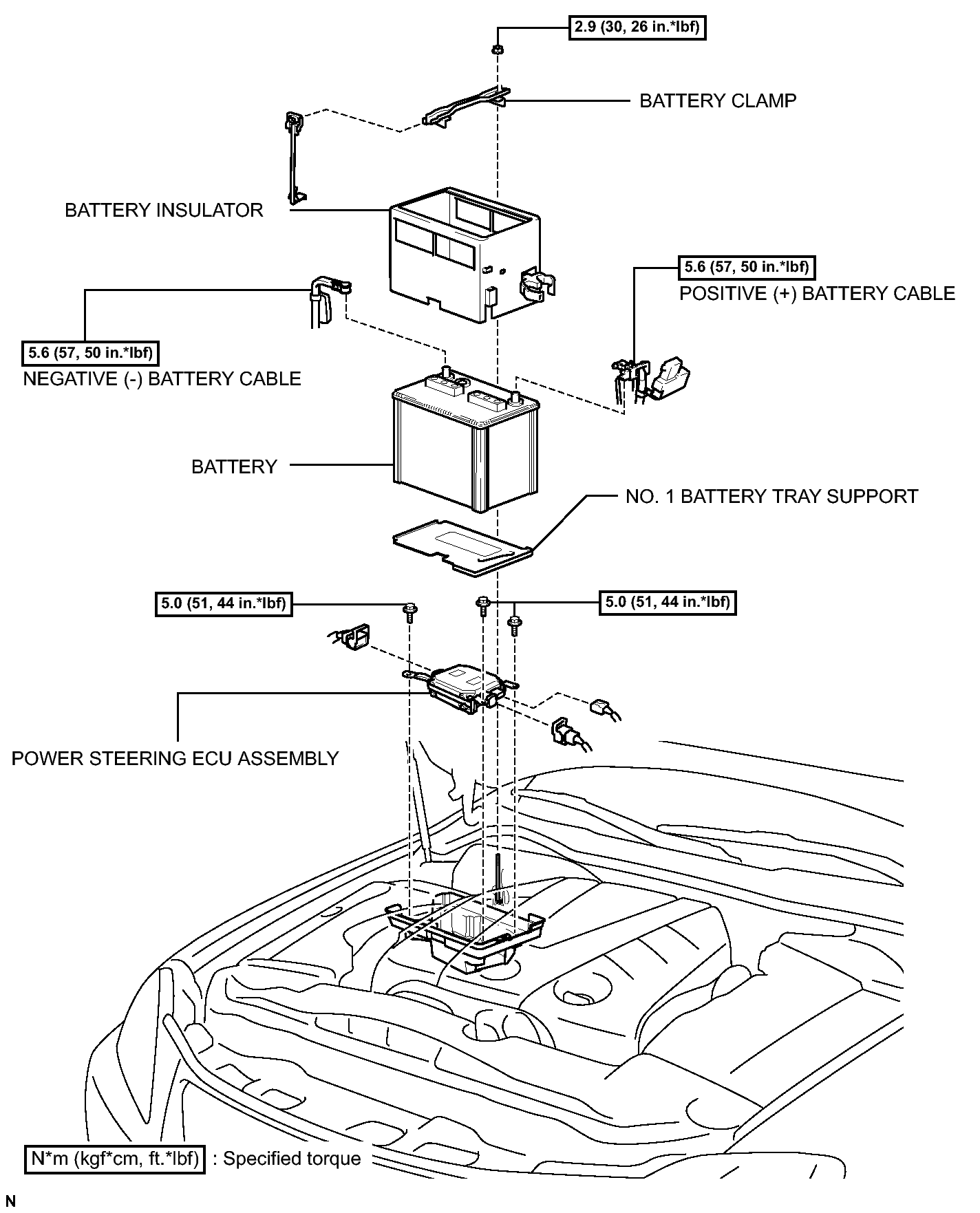

Fig 1: Power Steering ECU Replacement Components With Torque Specifications

GTY113402

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
