Section 17 (Starting System (Service Information)): Starter: Components: Illustration

WARNING: This page is about a different car, the 2012 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

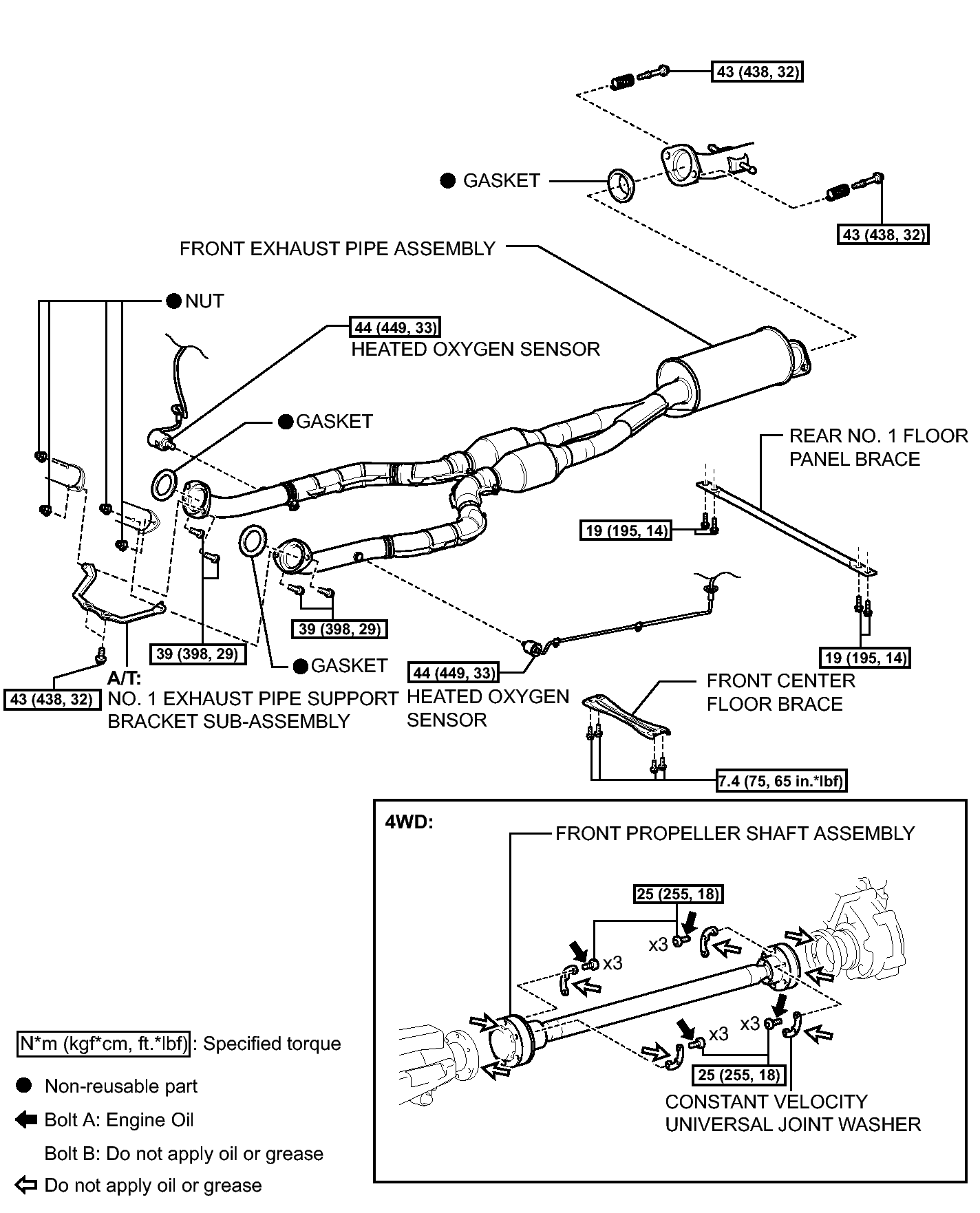

Fig 1: Identifying Starter Replacement Components With Torque Specifications (1 Of 3)
GTY262649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

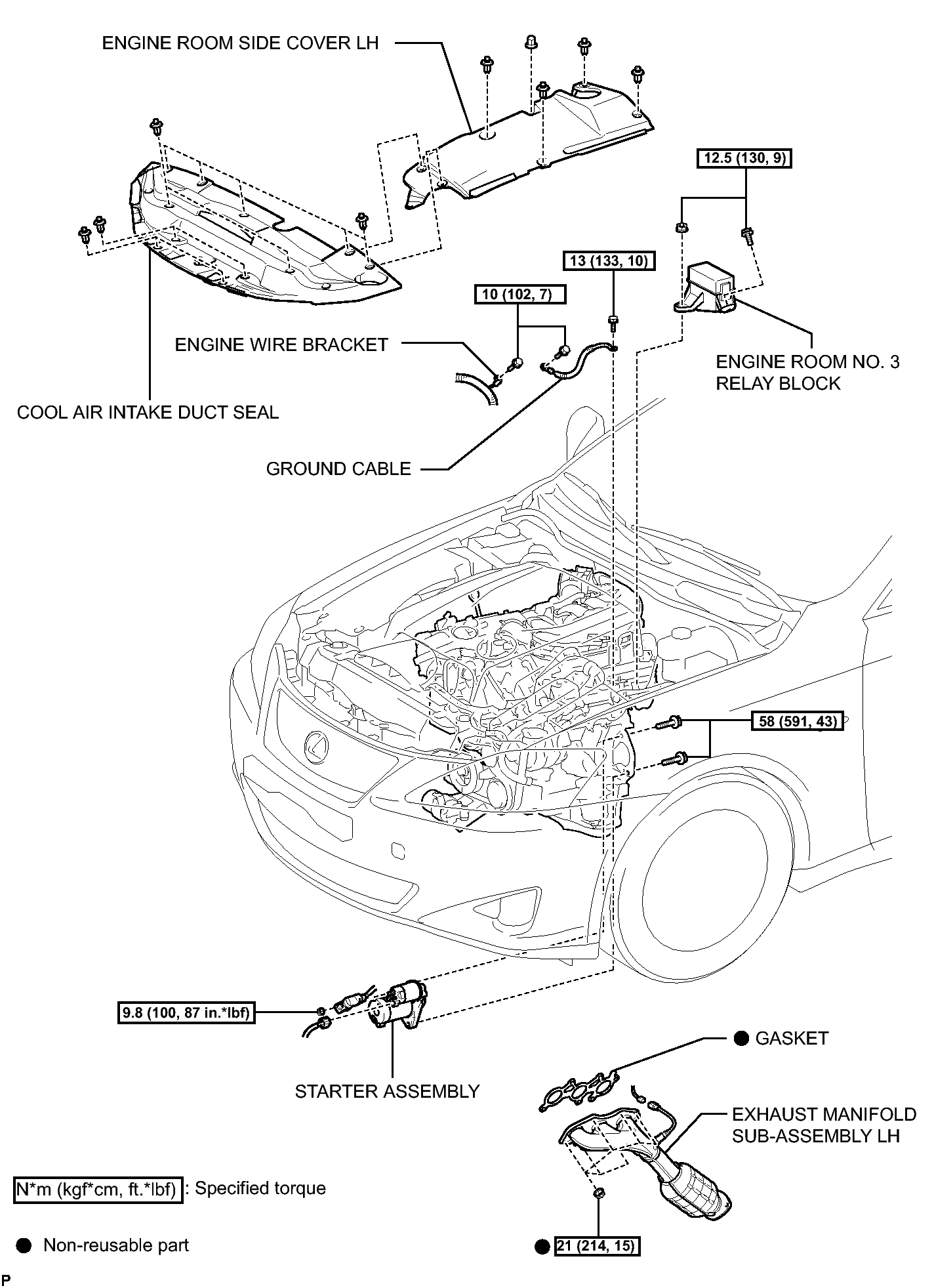

Fig 1: Identifying Starter Replacement Components With Torque Specifications (2 Of 3)
GTY143449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

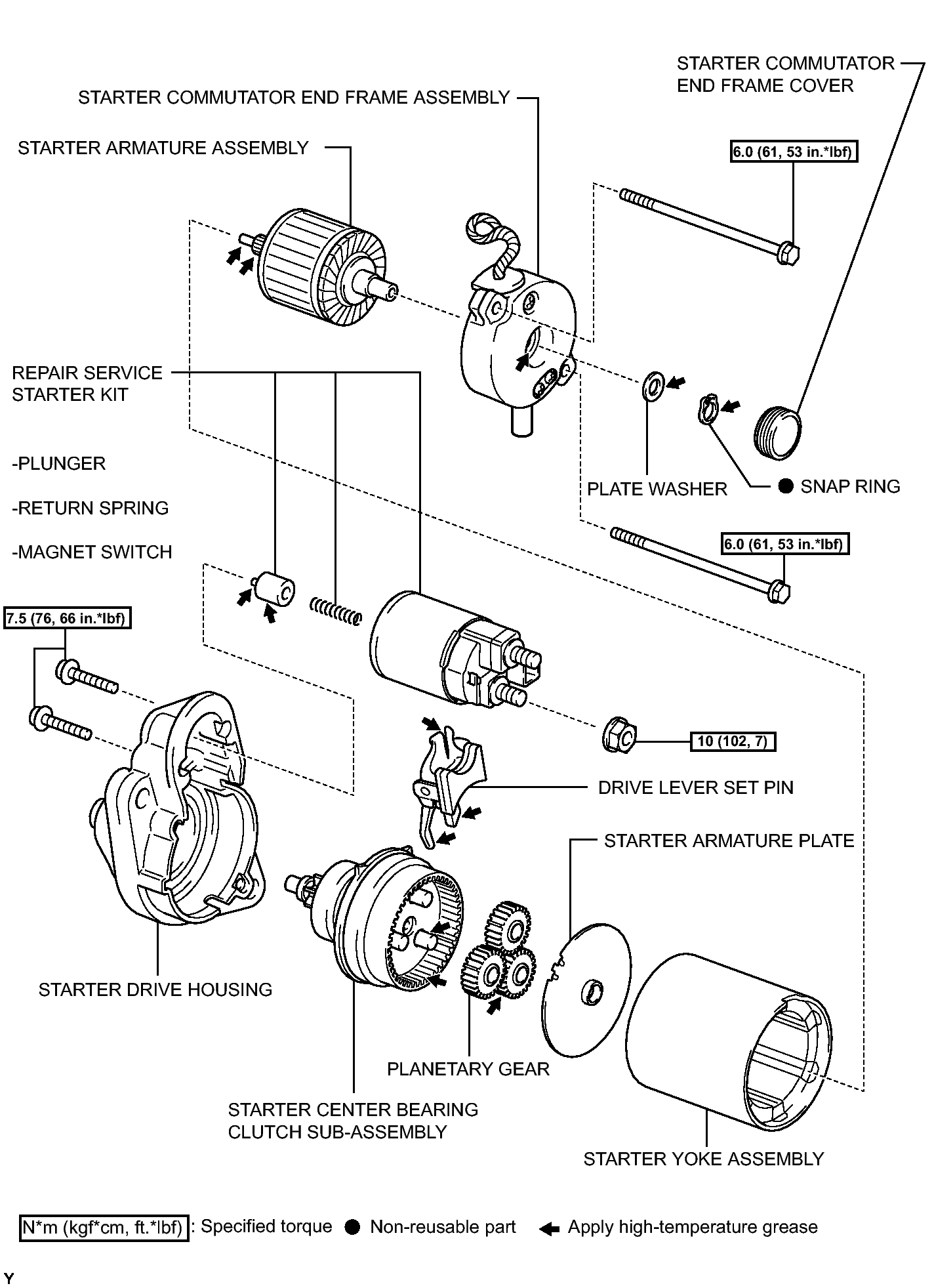

Fig 1: Identifying Starter Replacement Components With Torque Specifications (3 Of 3)
GTY146259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
