Parts Location: Illustration

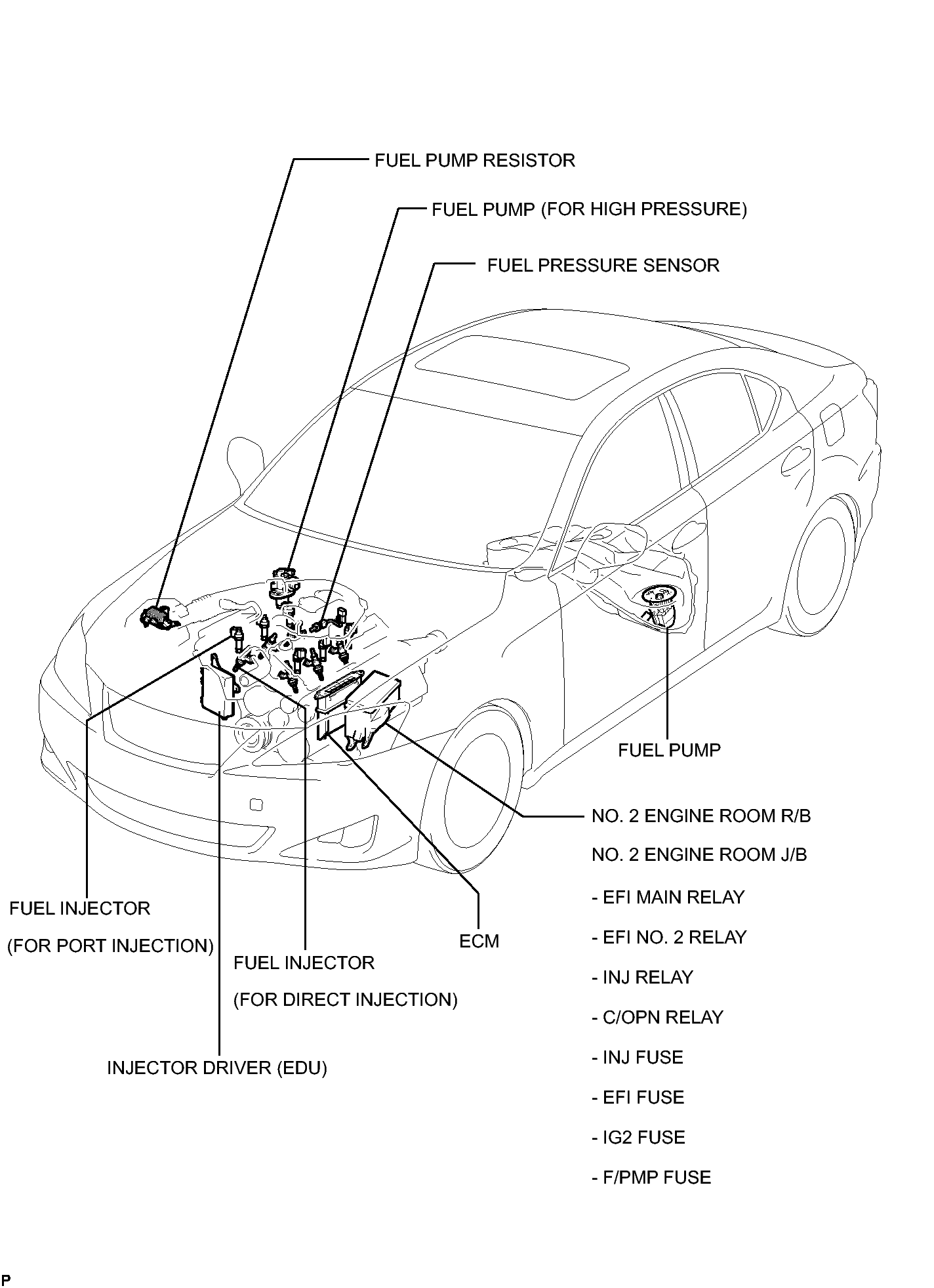

Fig 1: Fuel System Components Location

GTY122800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
