Oil Pump: Components: Illustration

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (1 Of 17)
GTY357181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (2 Of 17)
GTY146131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (3 Of 17)
GTY355669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (4 Of 17)
GTY350579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

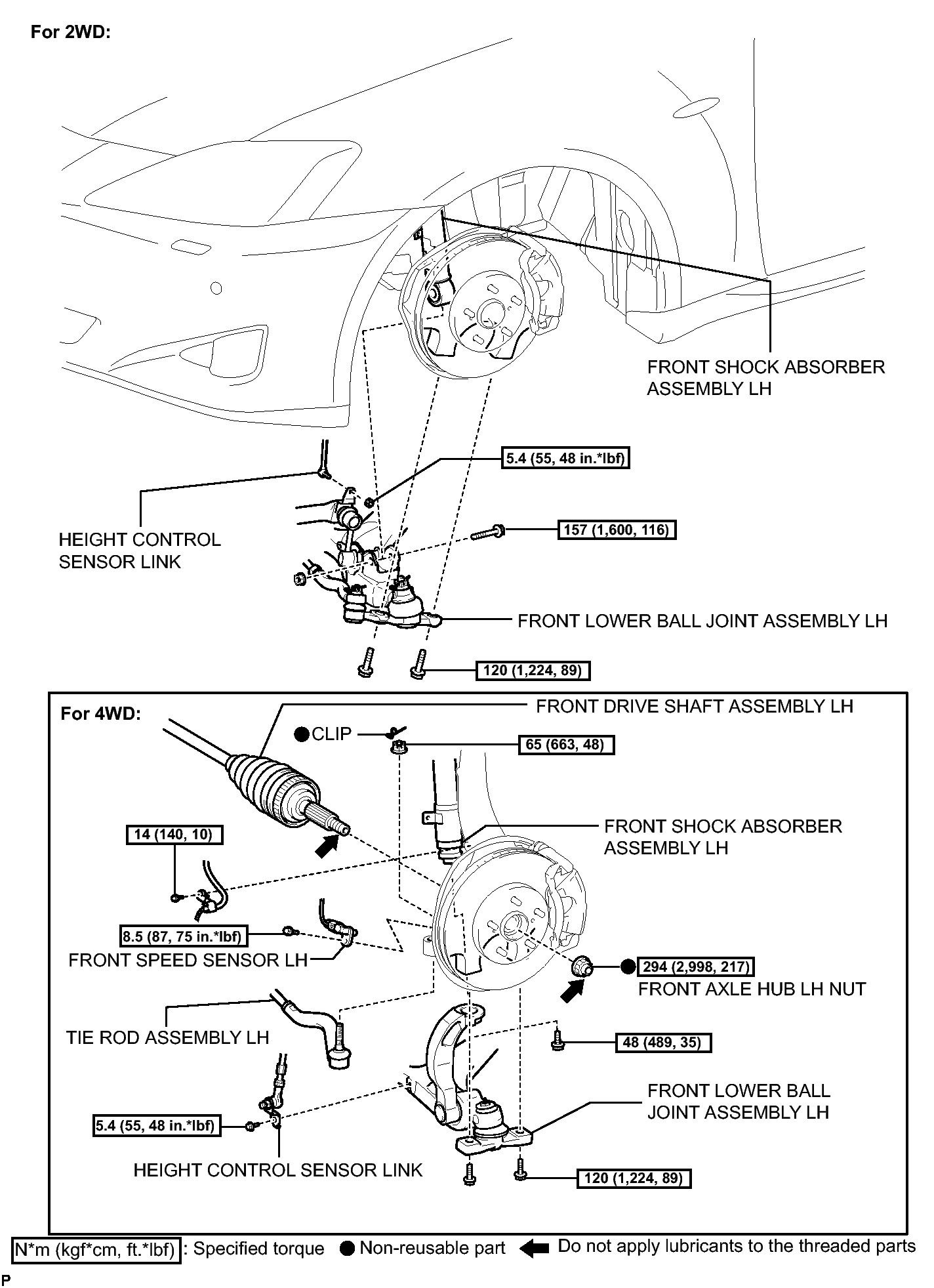

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (5 Of 17)
GTY352709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (6 Of 17)
GTY146128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (7 Of 17)
GTY146130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

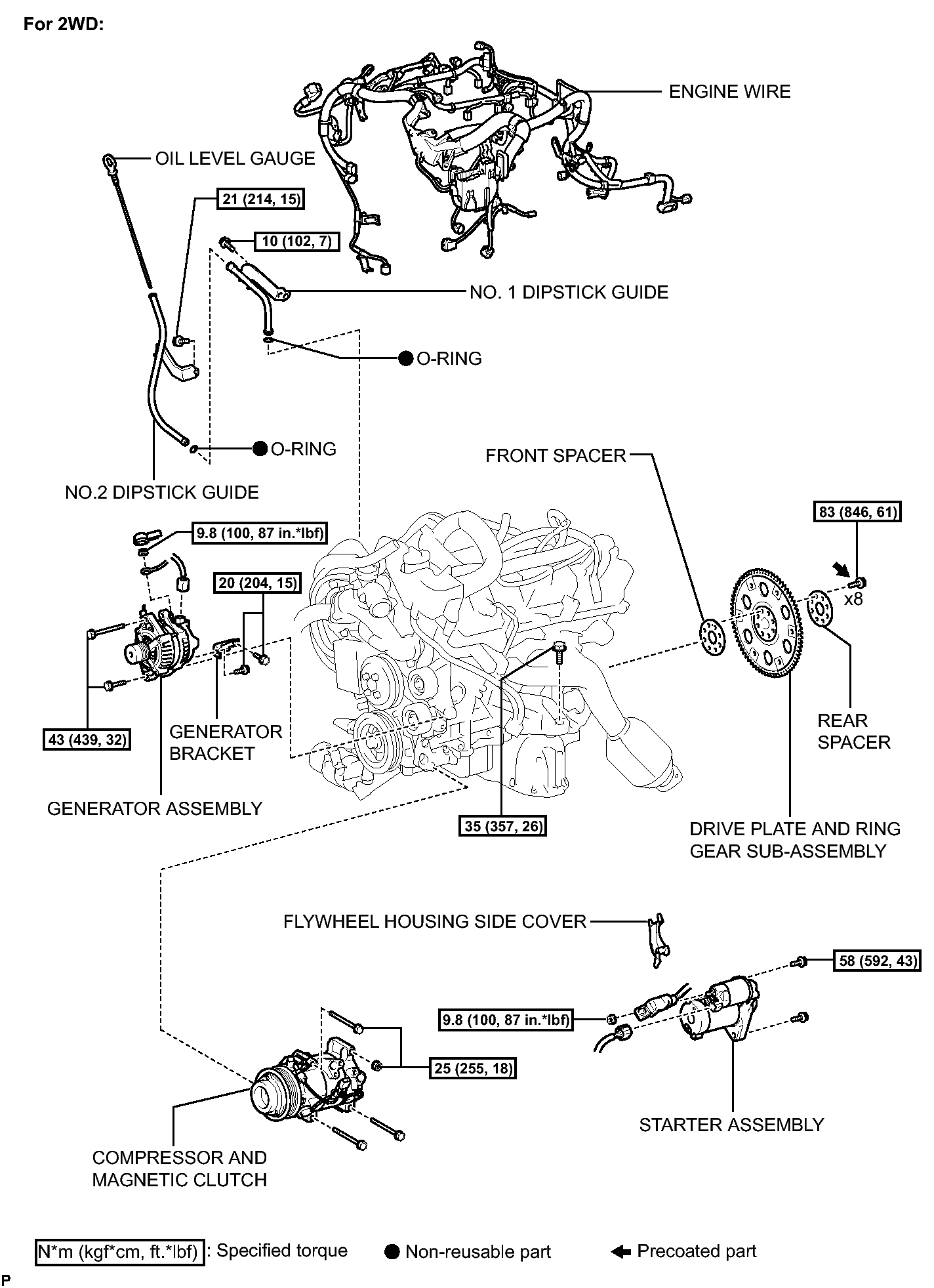

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (8 Of 17)
GTY355498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

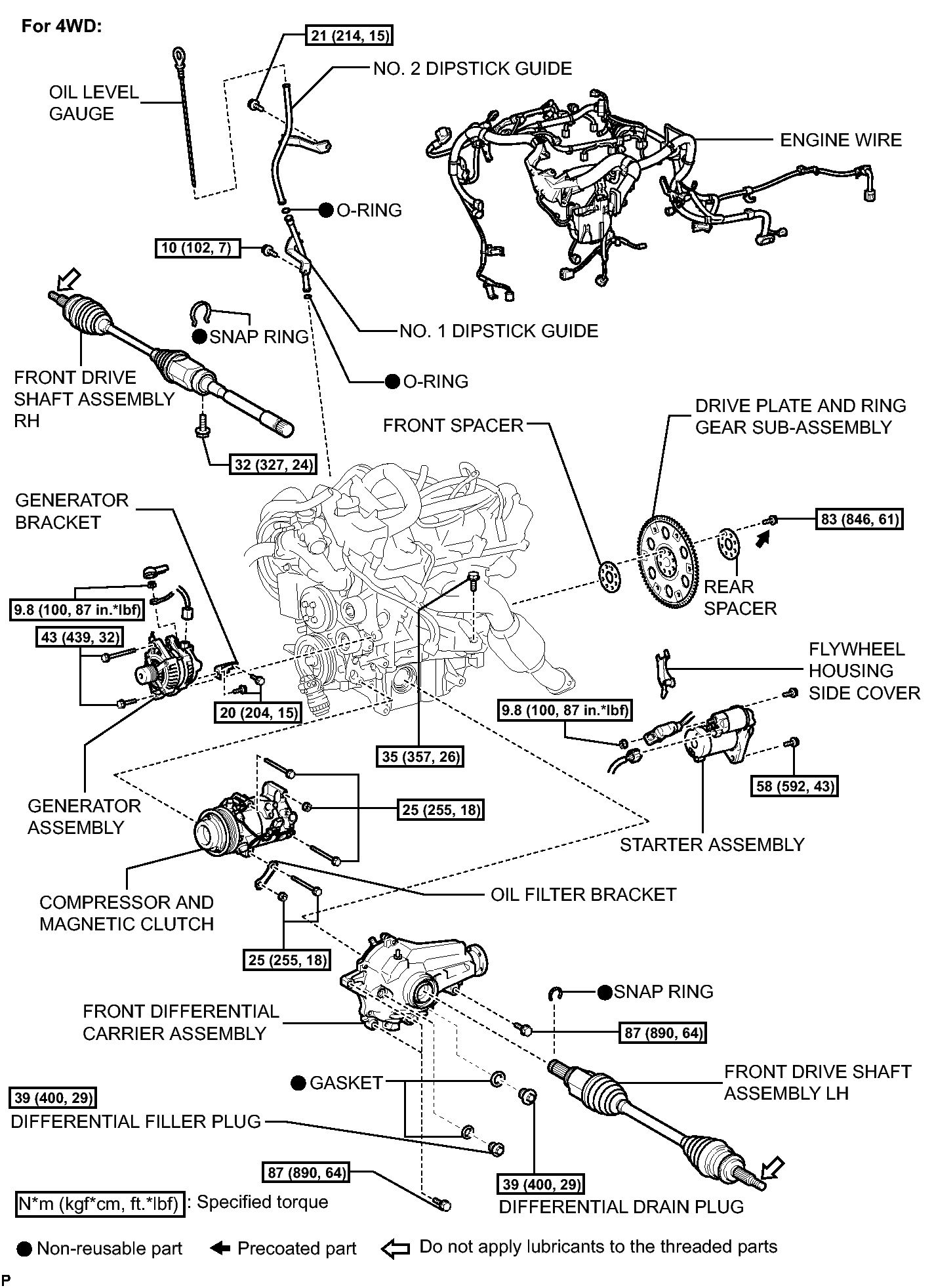

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (9 Of 17)
GTY355811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

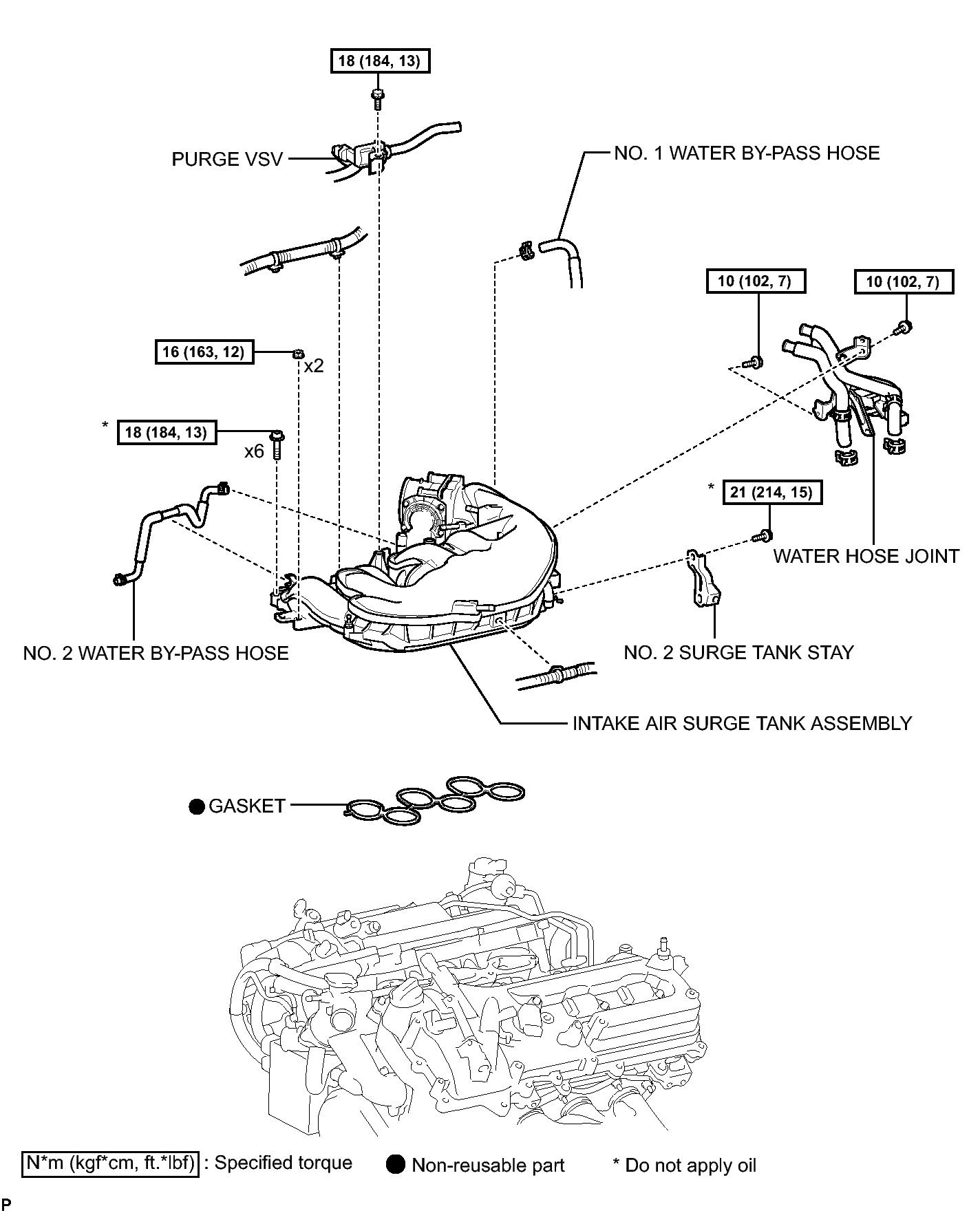

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (10 Of 17)
GTY146300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

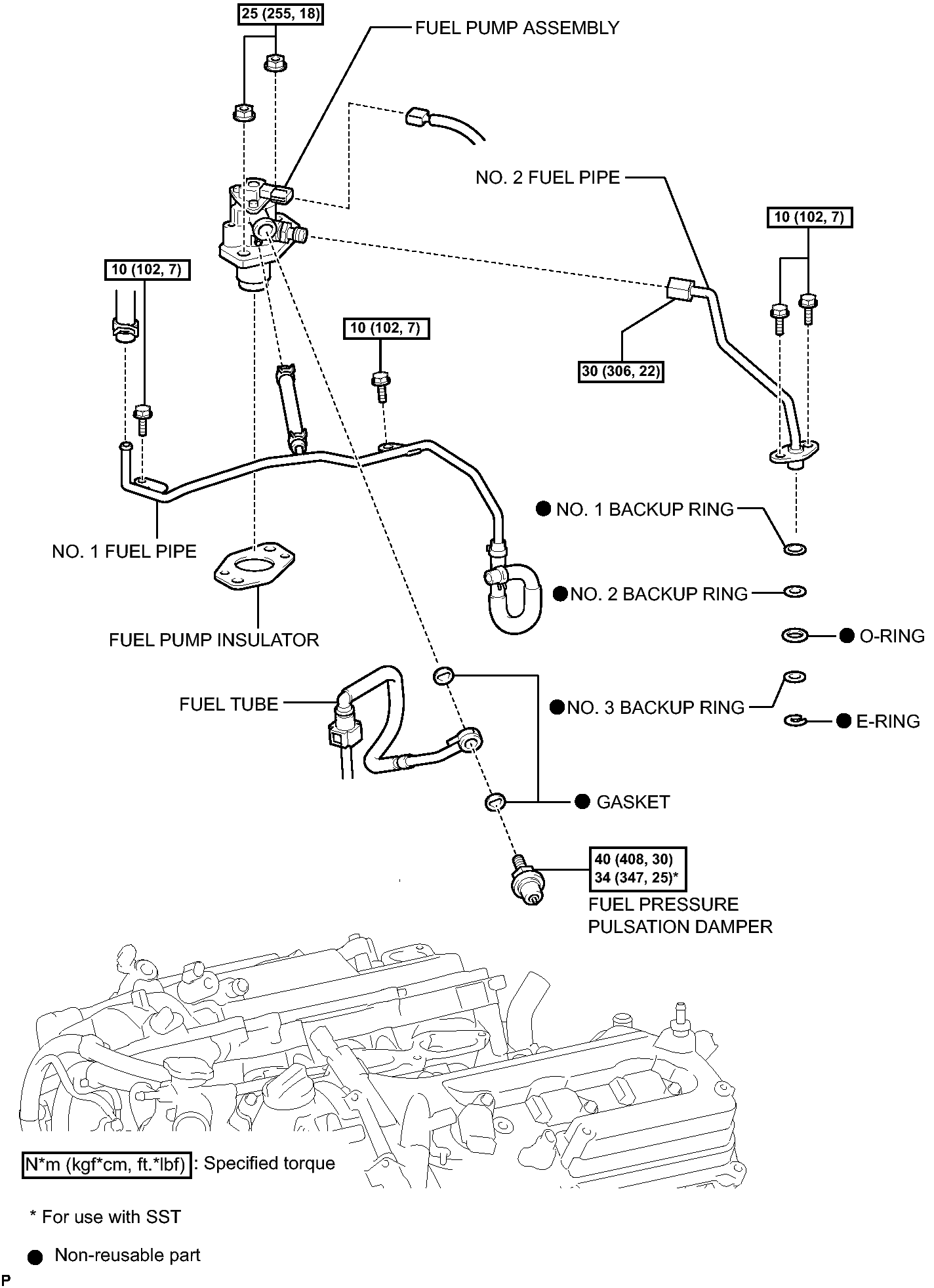

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (11 Of 17)
GTY269835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

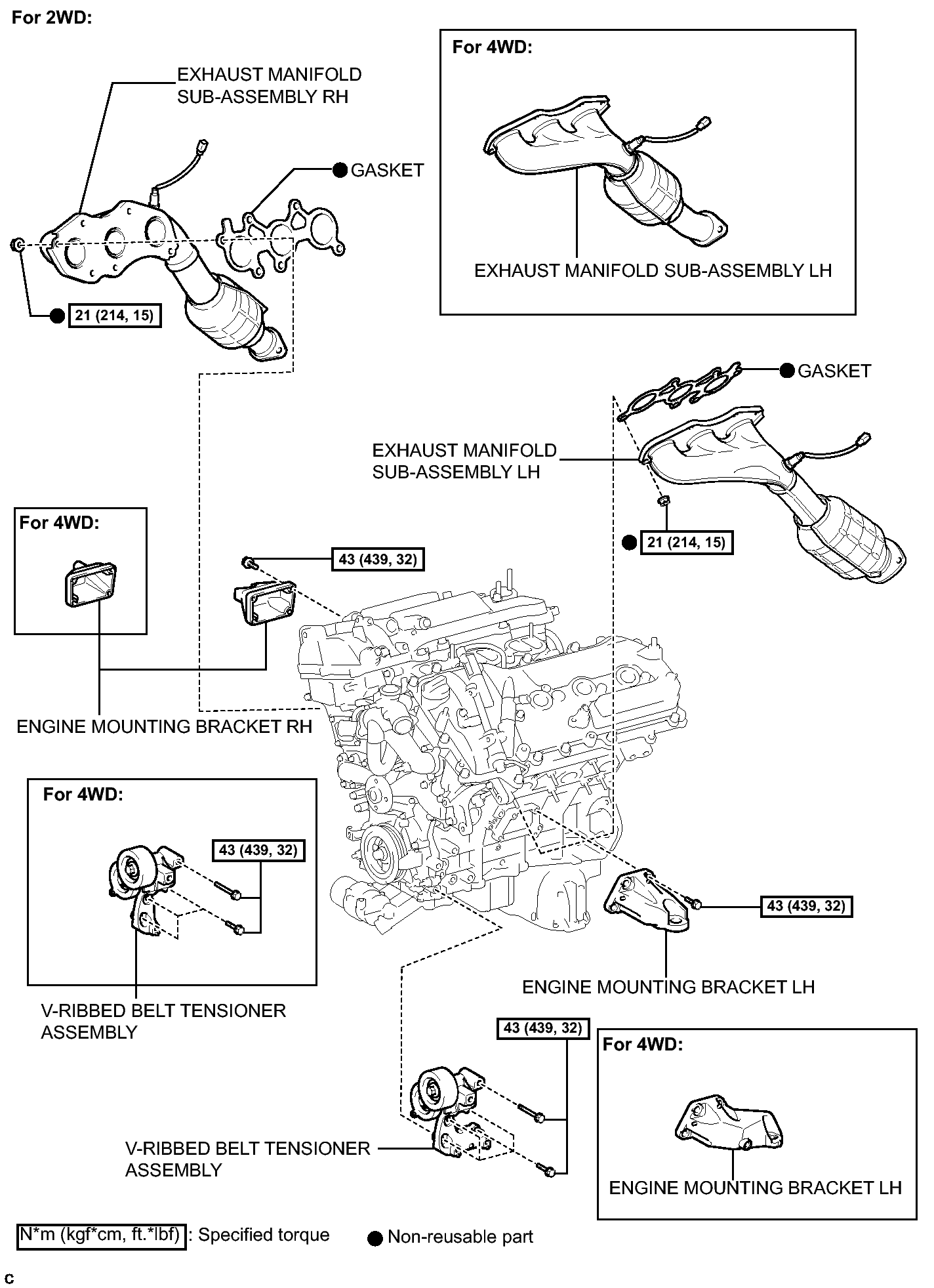

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (12 Of 17)
GTY359562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

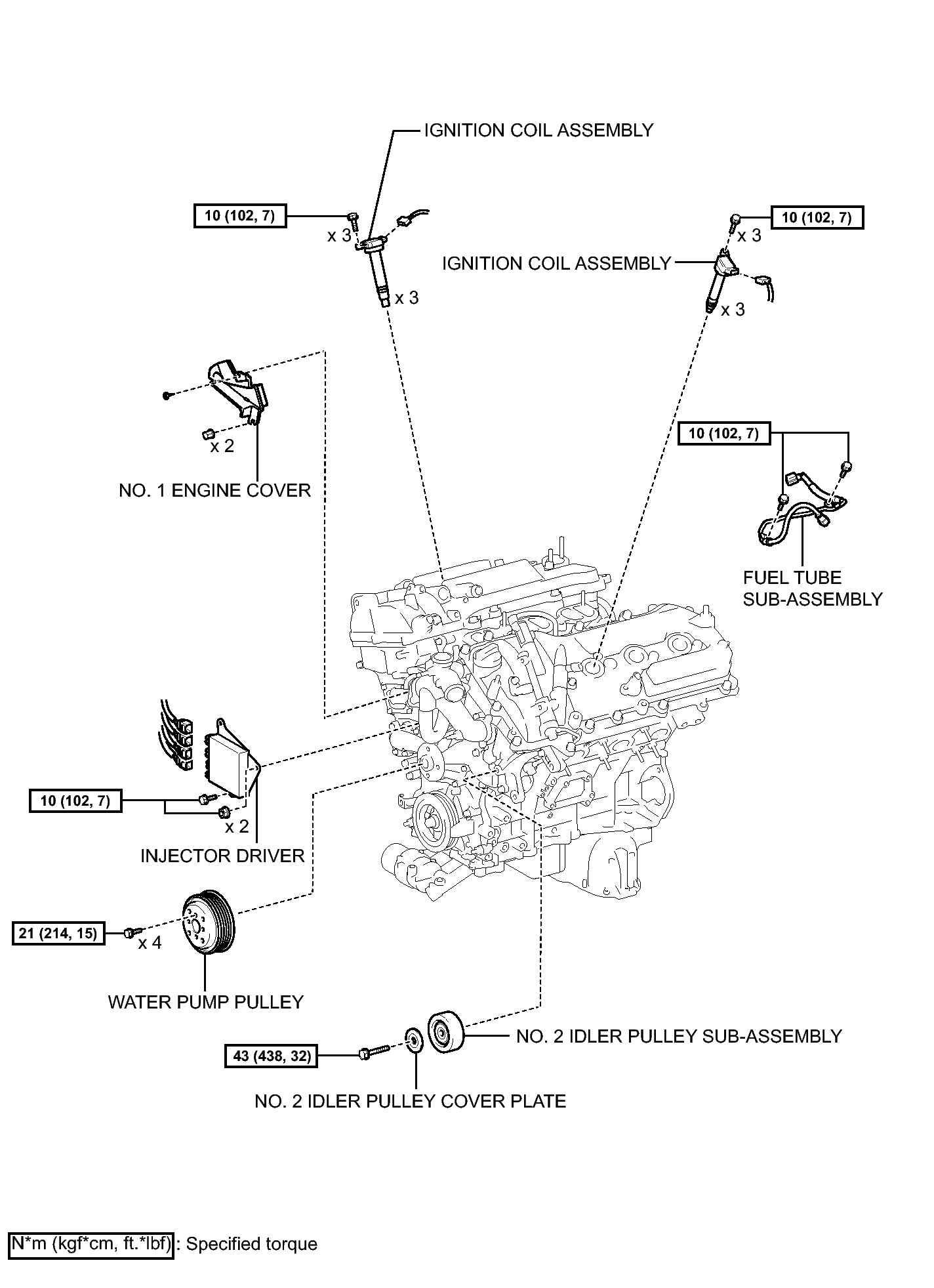

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (13 Of 17)
GTY352412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (14 Of 17)
GTY359887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

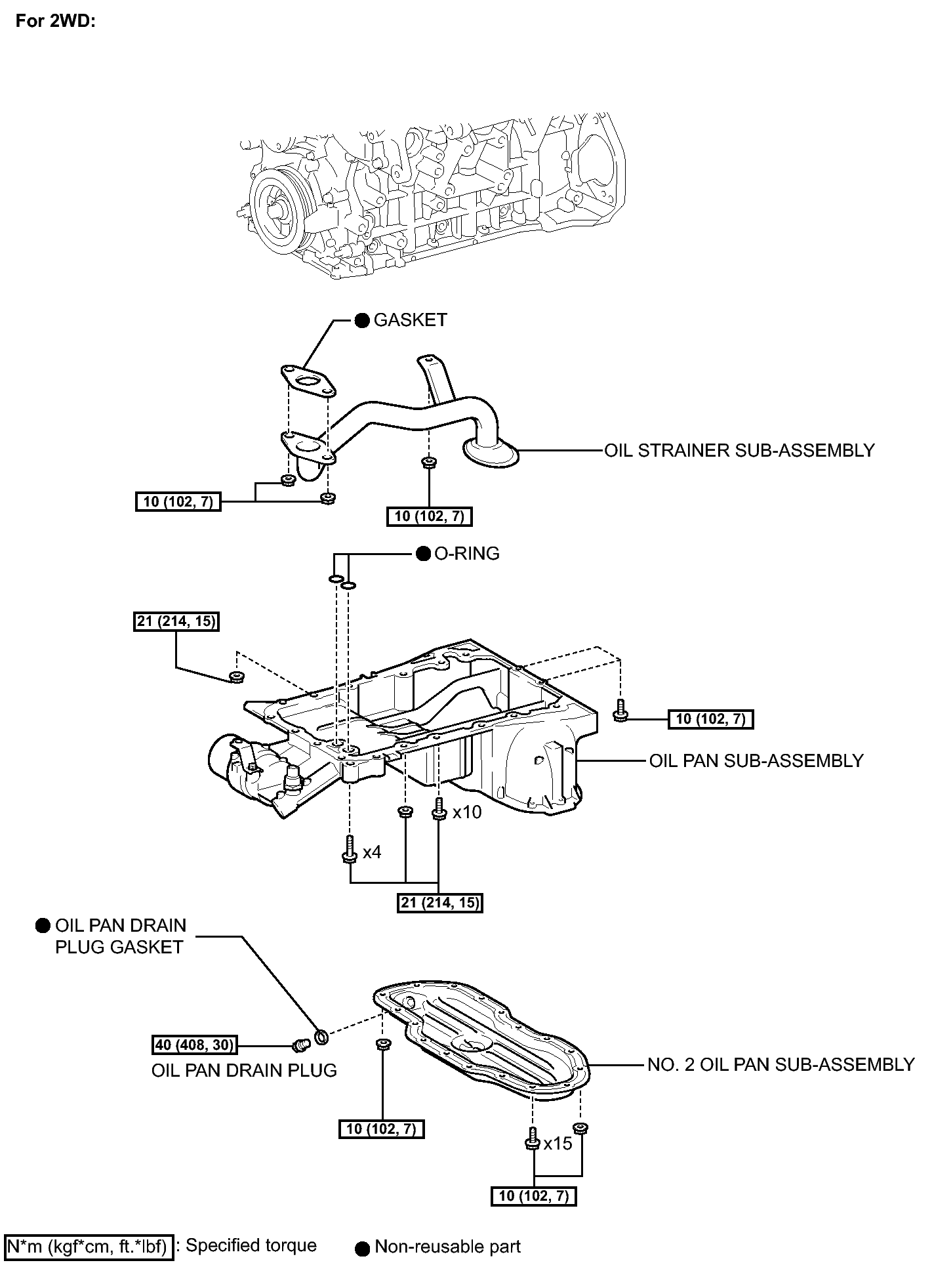

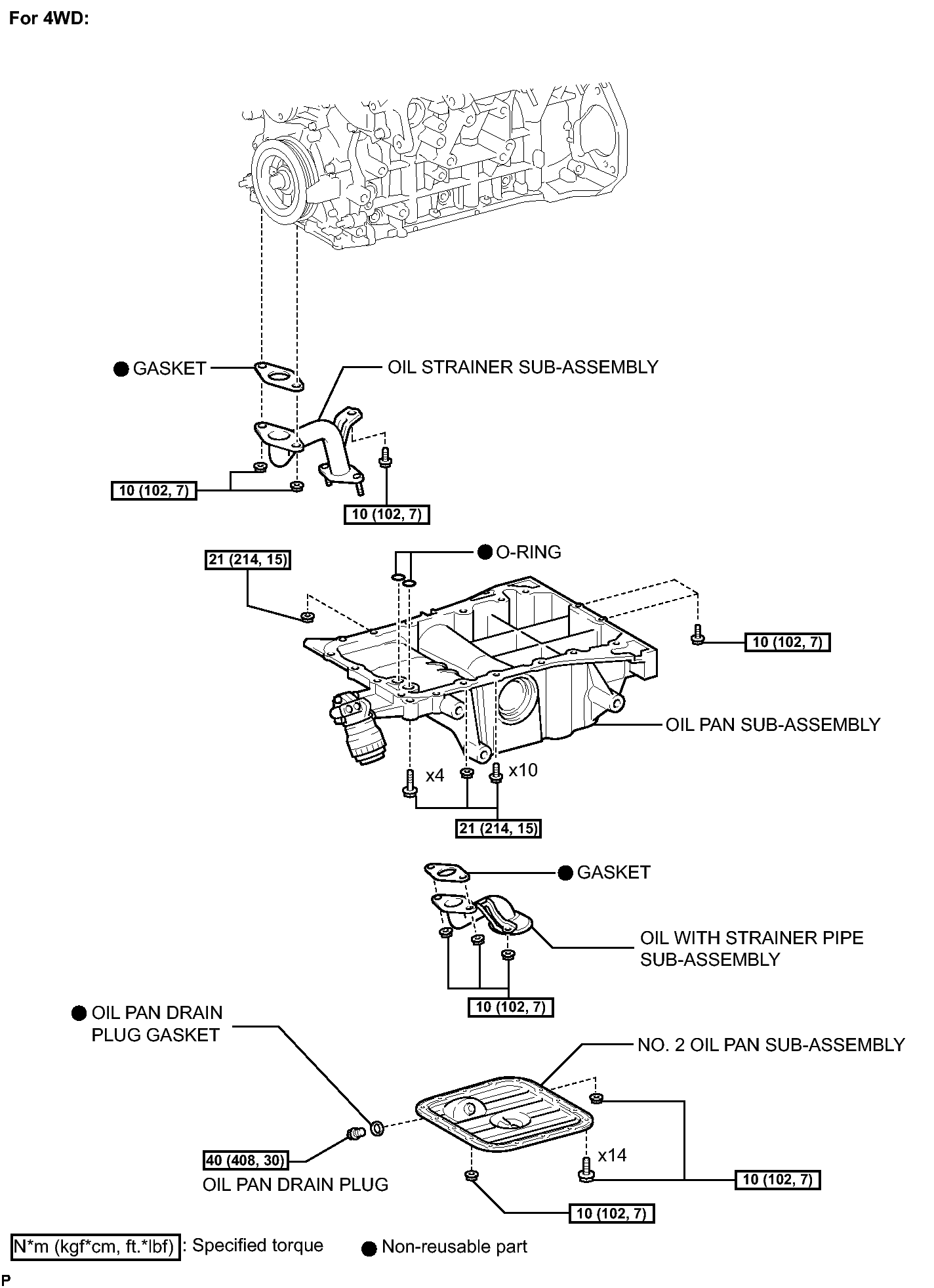

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (15 Of 17)
GTY354509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (16 Of 17)
GTY146391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

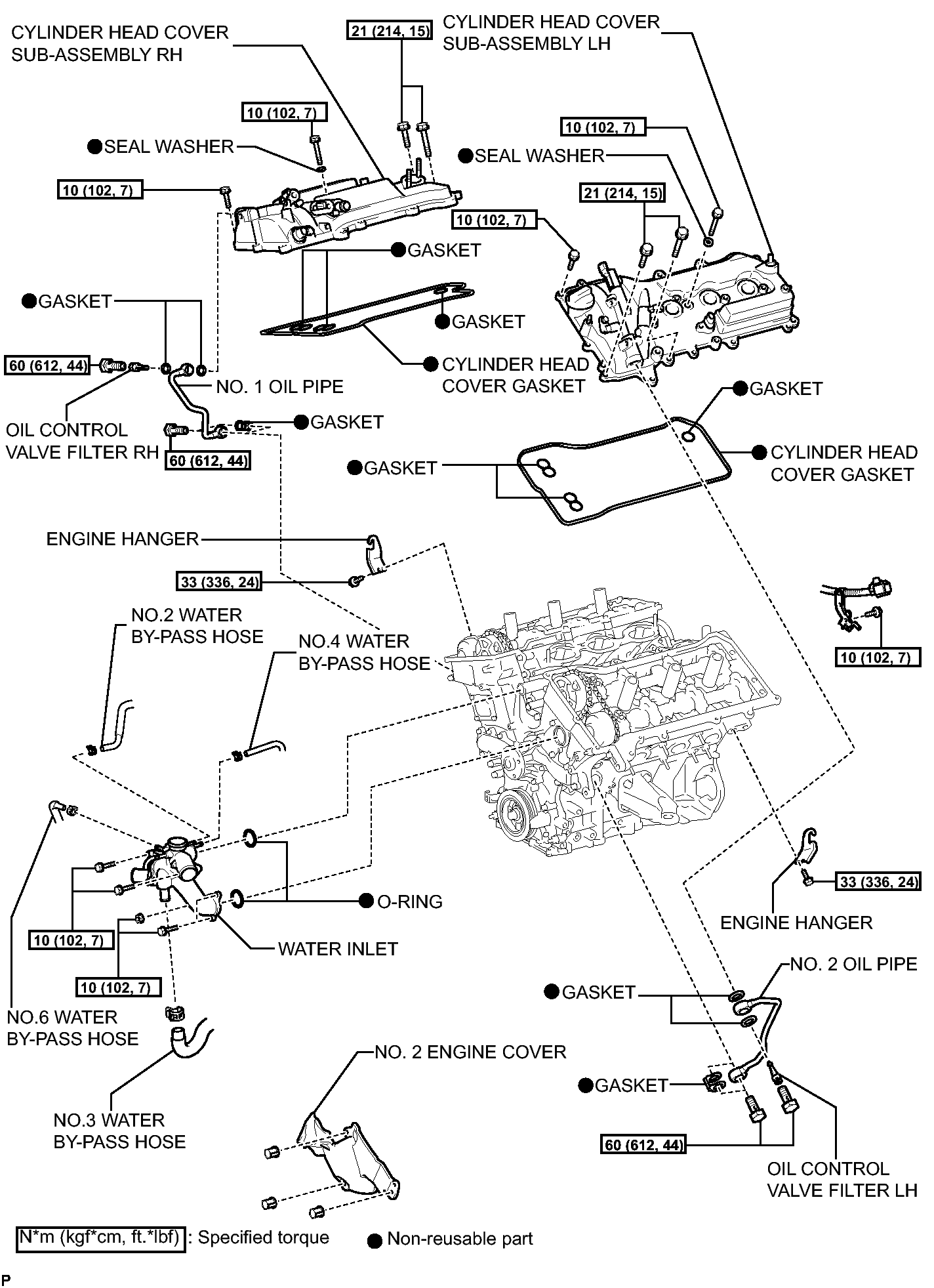

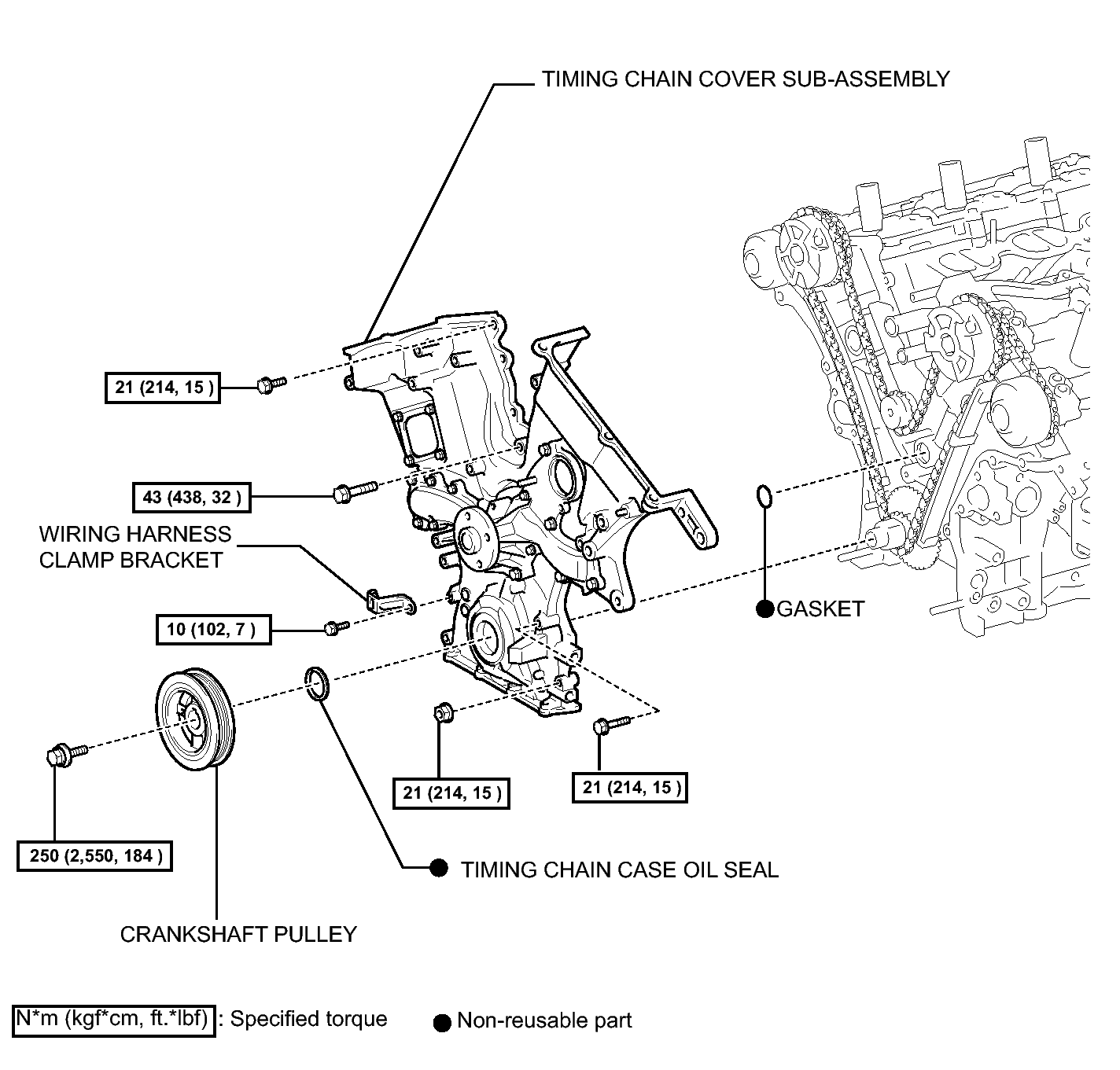

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (17 Of 17)
GTY146307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
