Power Seat (Driver's Seat w/o Seat Position Memory): Notes

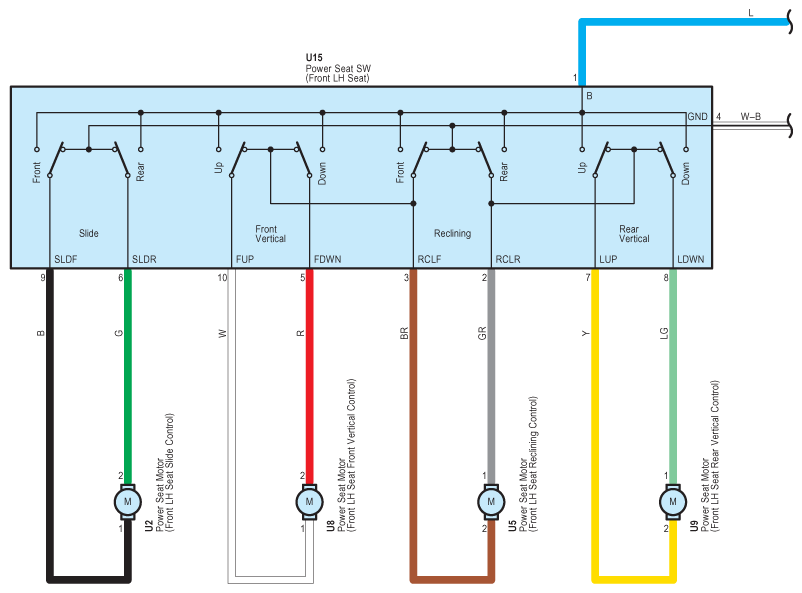

Fig 1: Power Seat (Driver'S Seat W/O Seat Position Memory) - Wiring Diagram (1 Of 2)
G08935619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

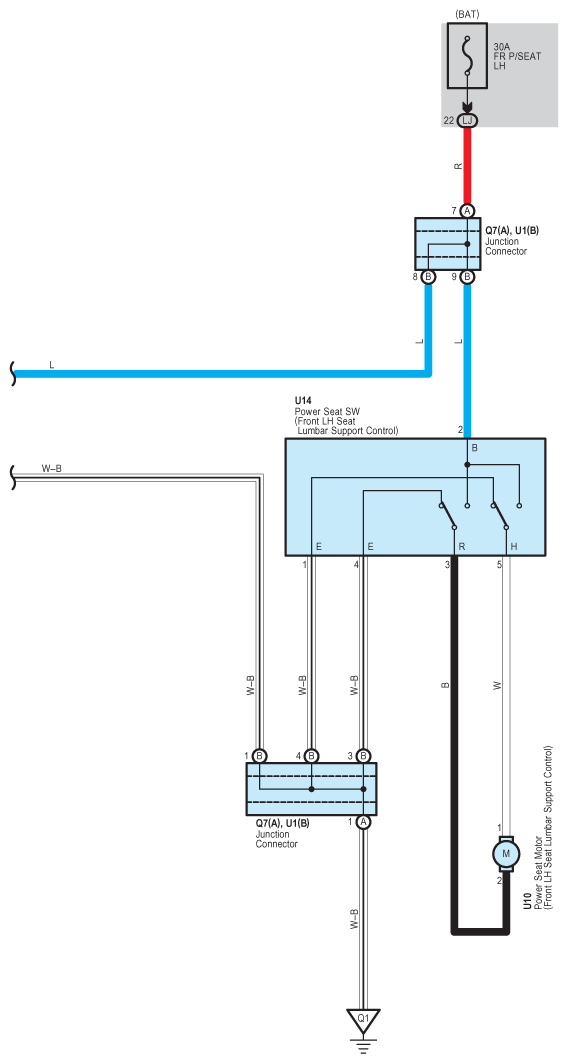

Fig 2: Power Seat (Driver'S Seat W/O Seat Position Memory) - Wiring Diagram (2 Of 2)
G08935620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
