Cruise Control Switch Circuit: Wiring Diagram

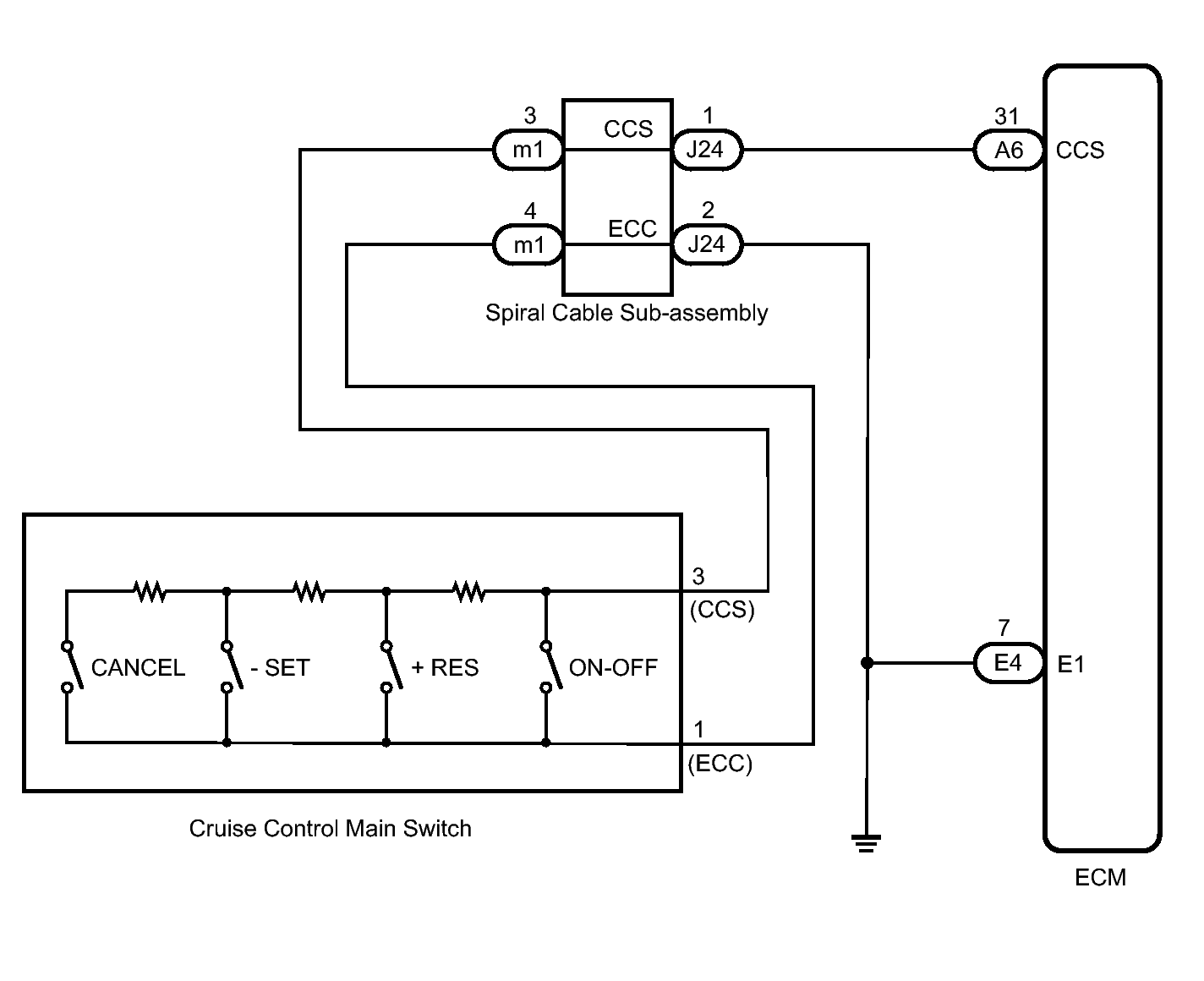

Fig 1: Cruise Control Switch Circuit -- Wiring Diagram

GTY133676

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
