Child Restraint Seat Tether Anchor: Components: Illustration

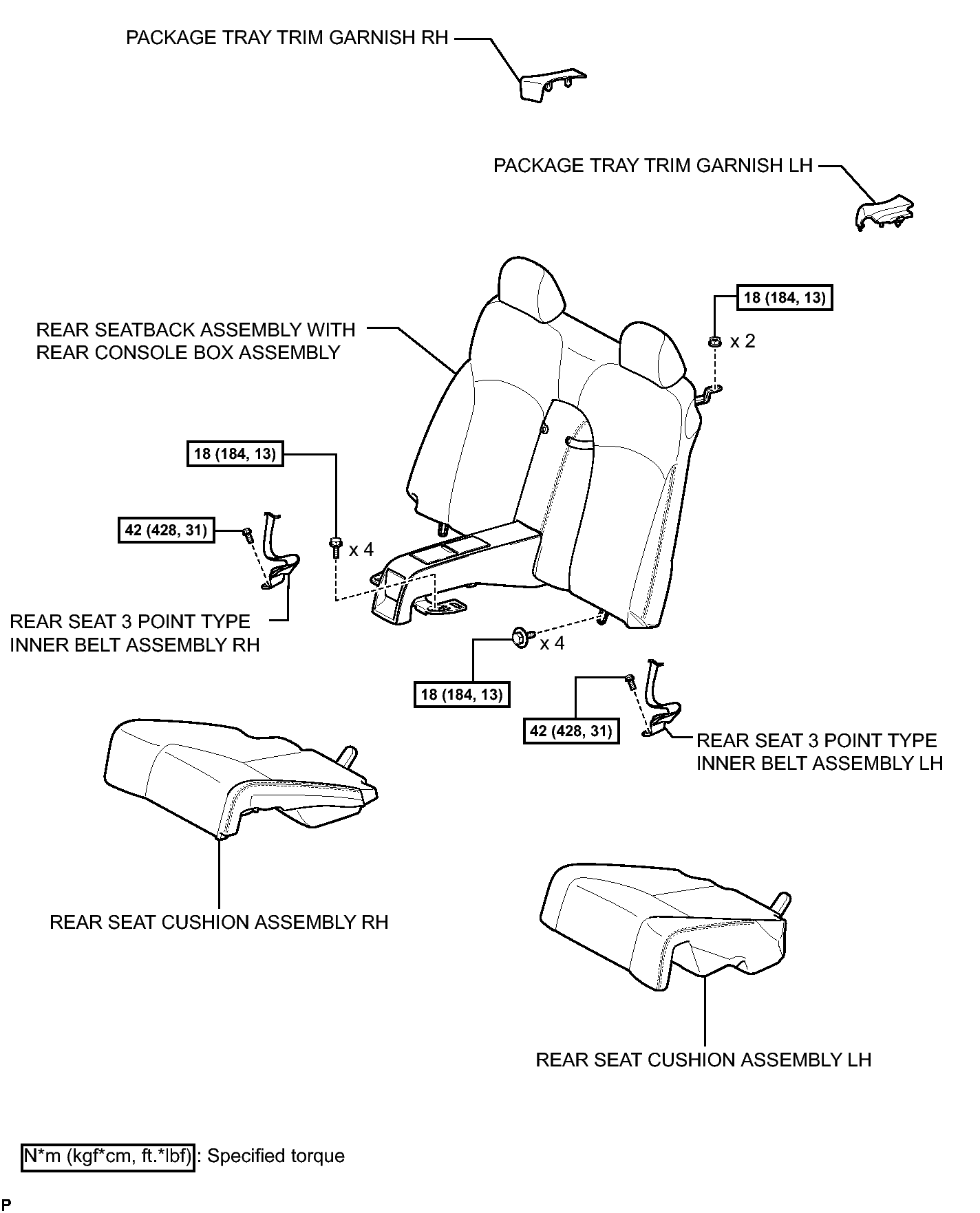

Fig 1: Identifying Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (1 Of 2)
GTY282155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

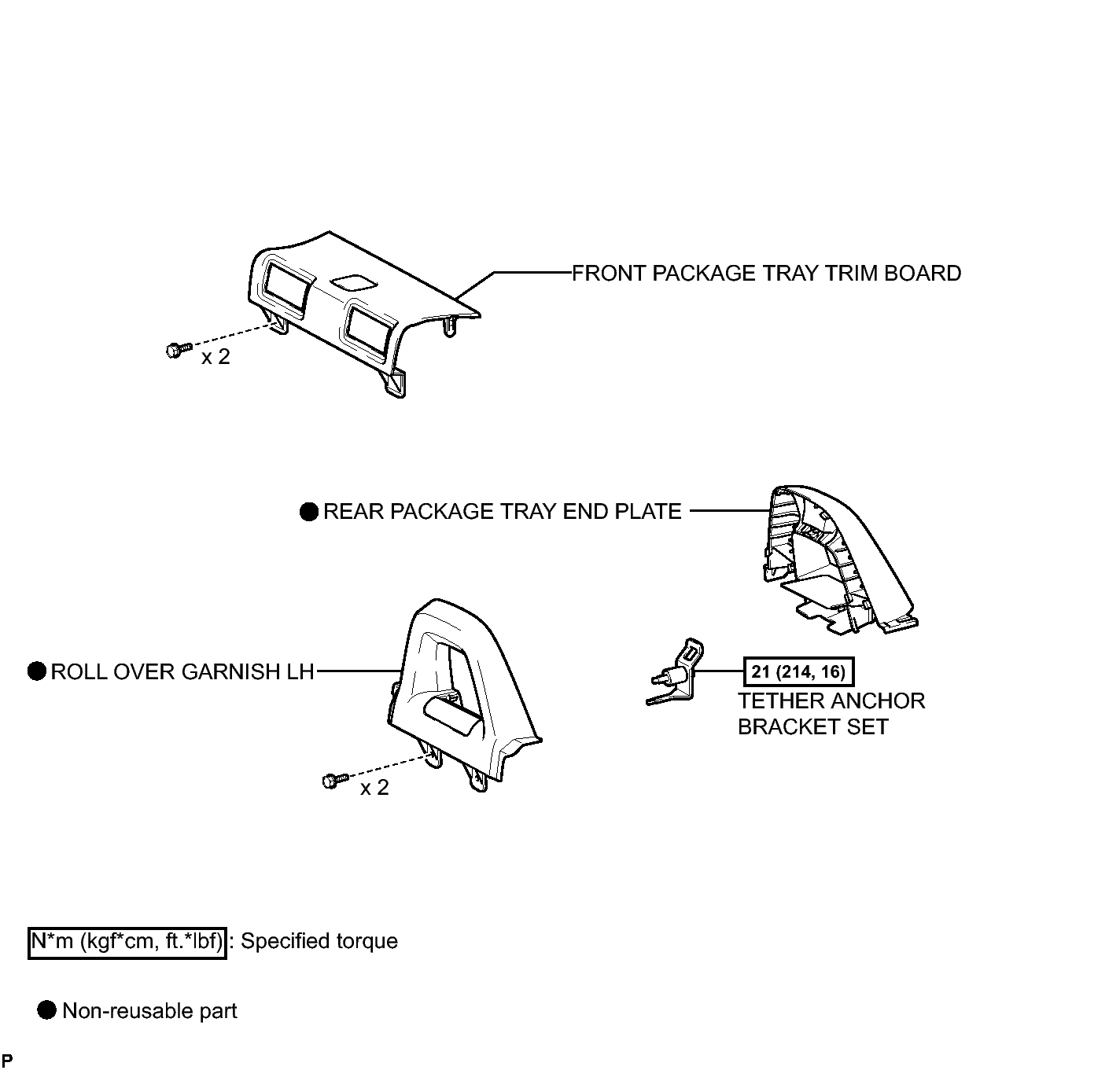

Fig 1: Identifying Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (2 Of 2)
GTY268343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
