Parts Location: Illustration

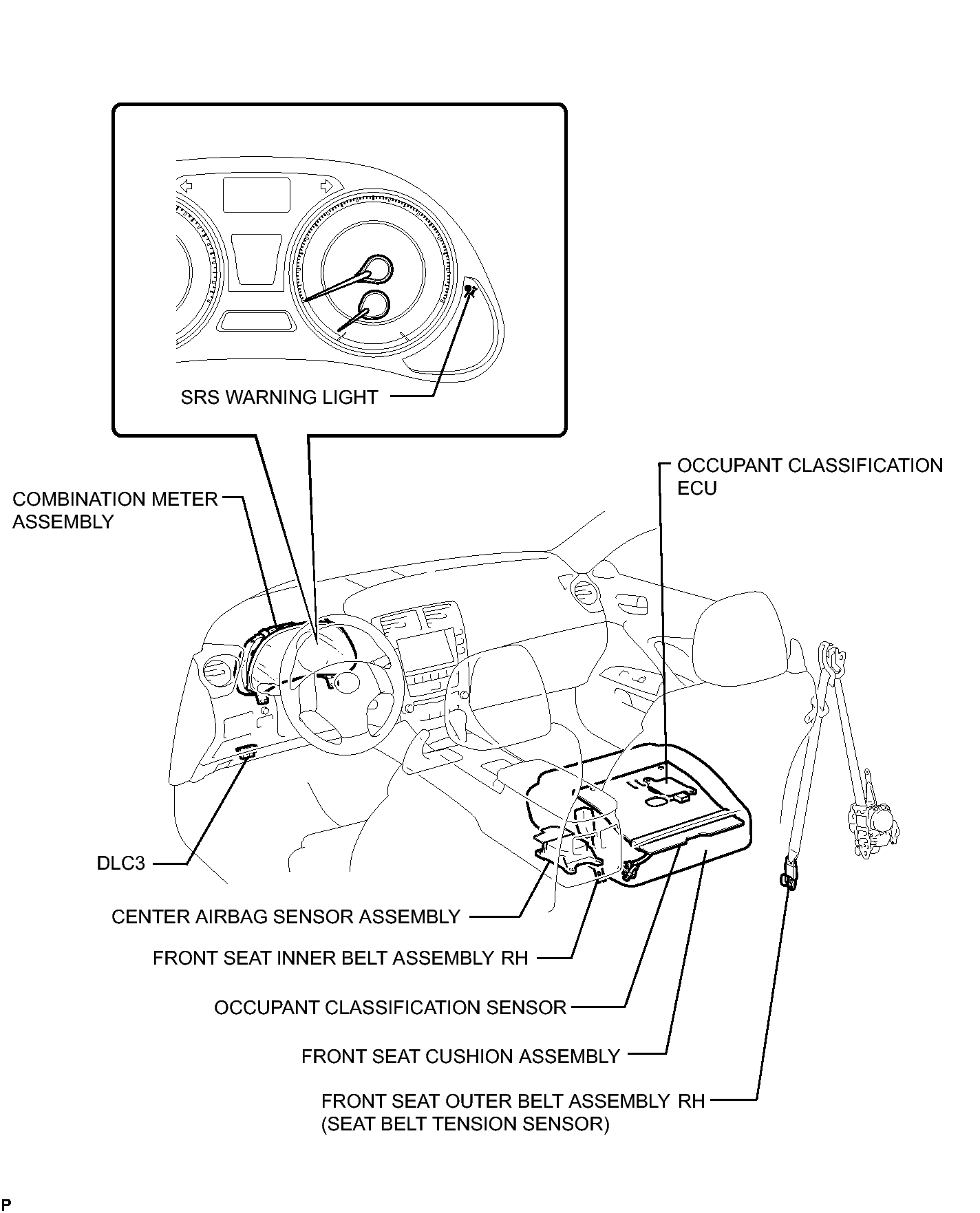

Fig 1: Identifying Occupant Classification System Components Location (1 Of 2)
GTY284993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

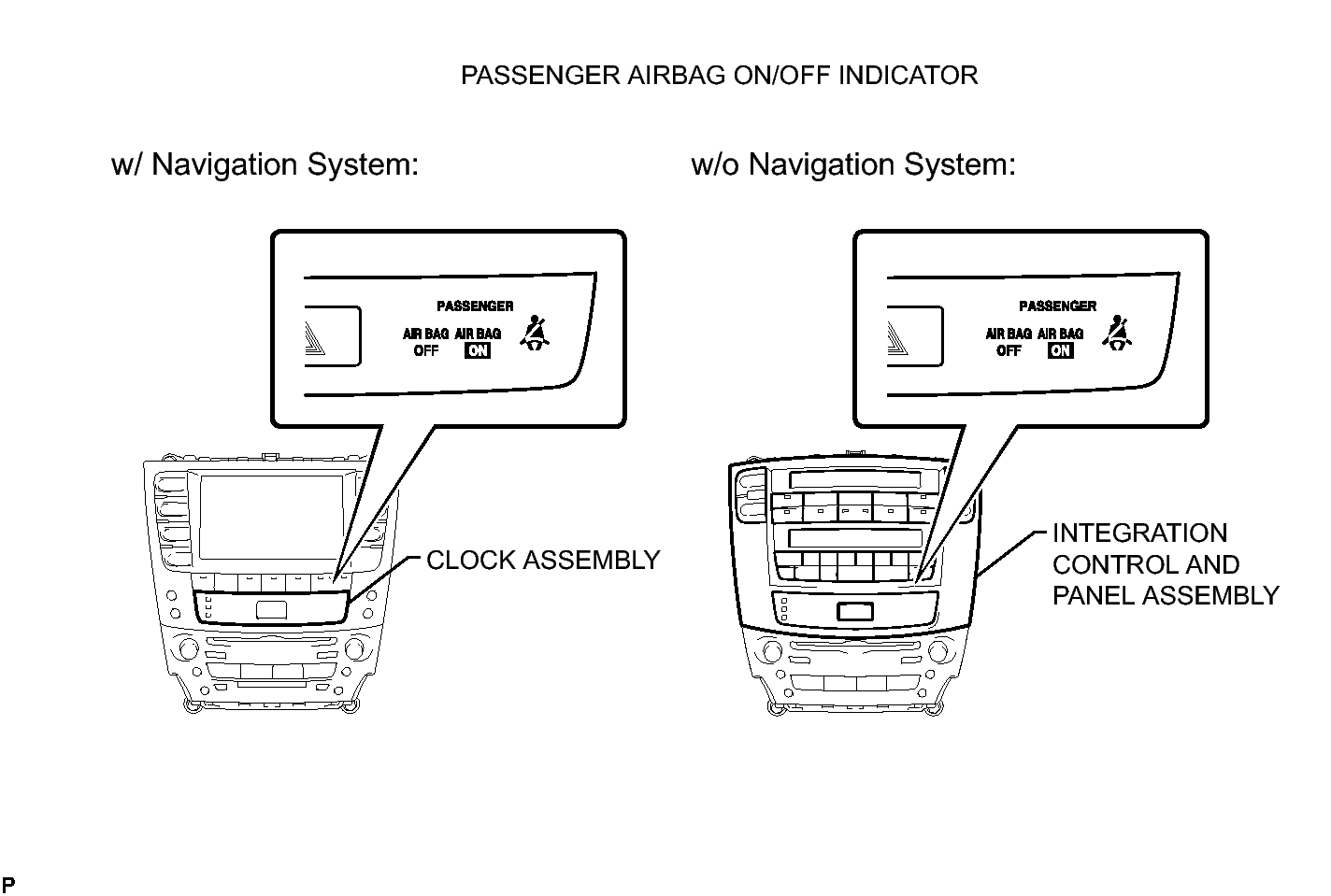

Fig 1: Identifying Occupant Classification System Components Location (2 Of 2)
GTY286661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
