Back-Up Light Switch: Inspection: Inspection
WARNING: This page is about a different variant/trim than selected.

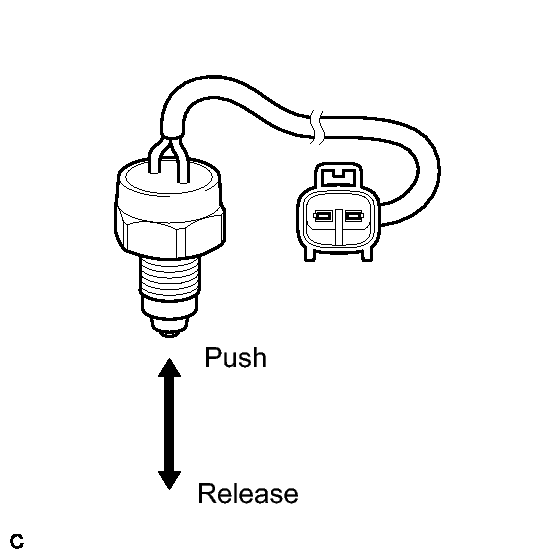

- INSPECT BACK-UP LIGHT SWITCH ASSEMBLY
- Measure the resistance of the switch.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance
| Tester Connection |
Switch Condition |
Specified Condition |
| 1 - 2 |
Pushed |
Below 1 Ω |
| 1 - 2 |
Released |
10 kΩ or higher |
If the result is not as specified, replace the back-up light switch assembly.
