Oil Level Sensor: Components: Illustration

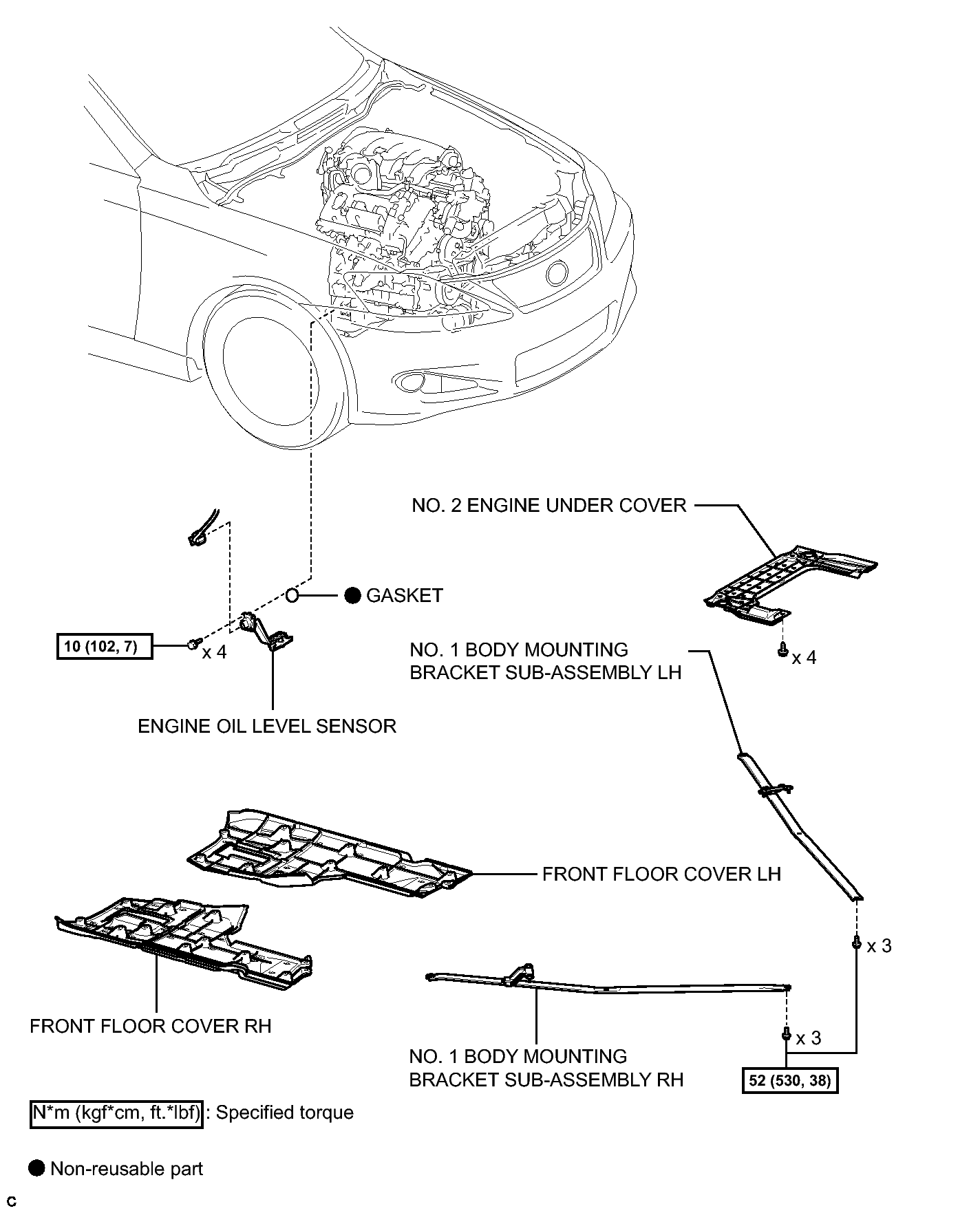

Fig 1: Identifying Oil Level Sensor Replacement Components With Torque Specifications

GTY264953

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
