Climate Control Seat and Seat Heater: Notes

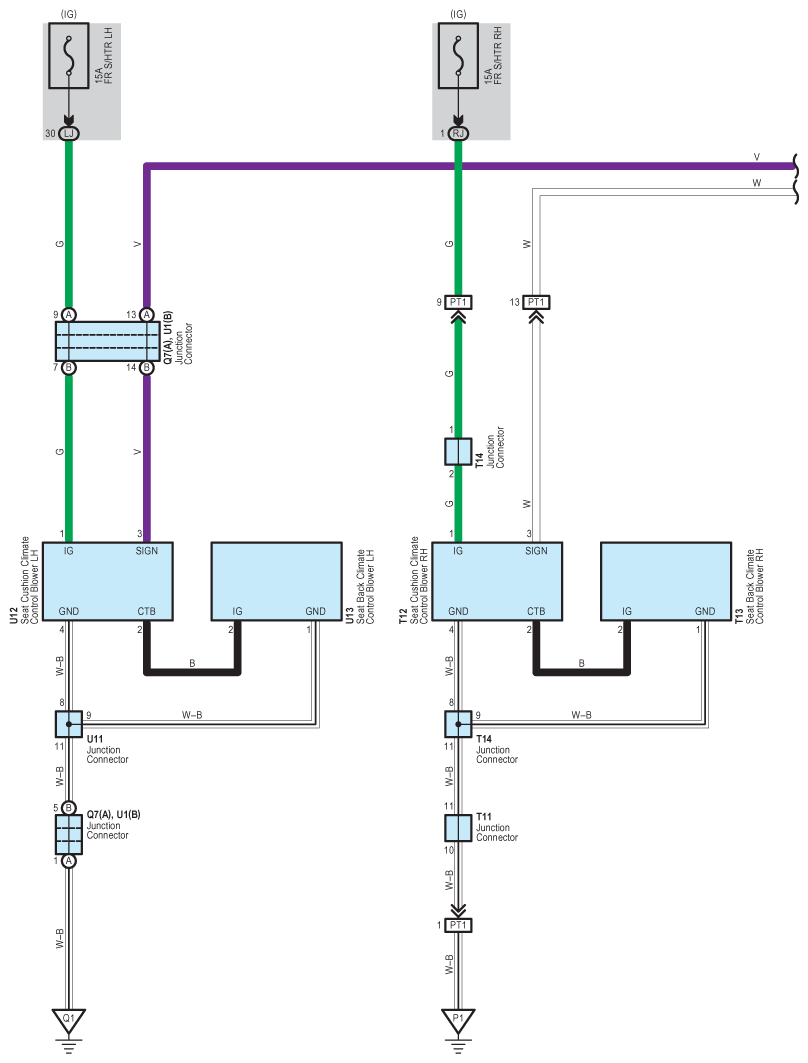

Fig 1: Climate Control Seat And Seat Heater - Wiring Diagram (1 Of 4)
G08938867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

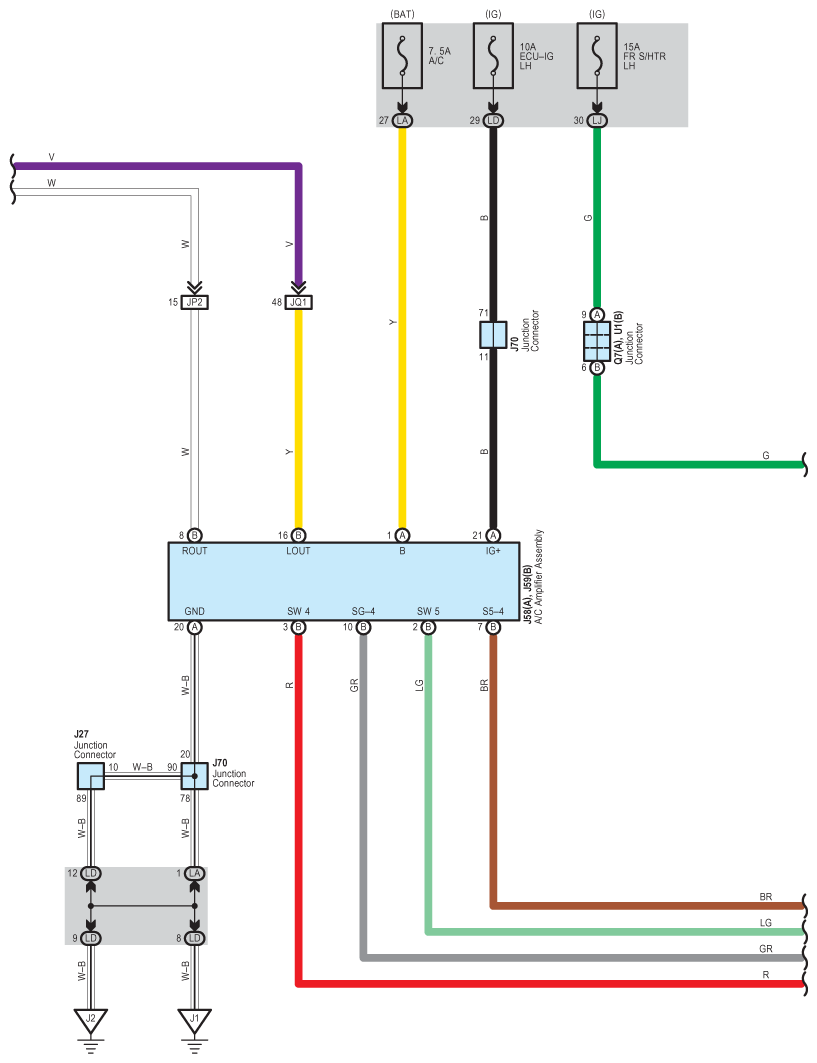

Fig 2: Climate Control Seat And Seat Heater - Wiring Diagram (2 Of 4)
G08938868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

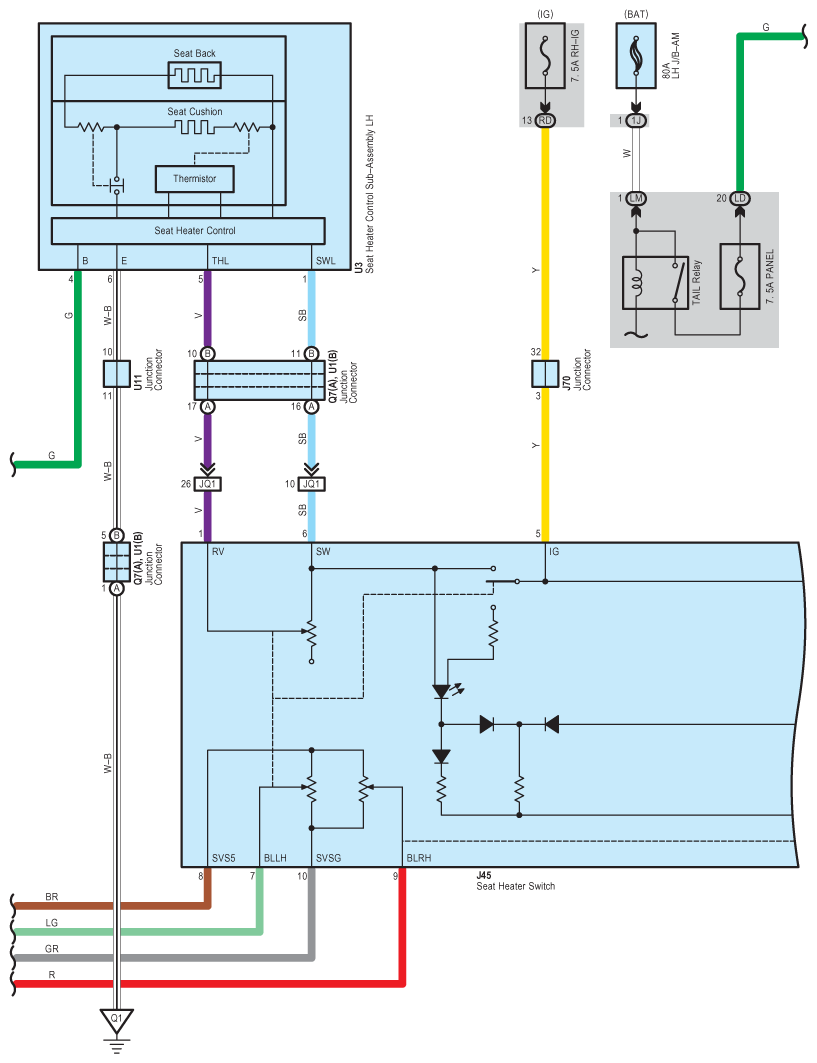

Fig 3: Climate Control Seat And Seat Heater - Wiring Diagram (3 Of 4)
G08938869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

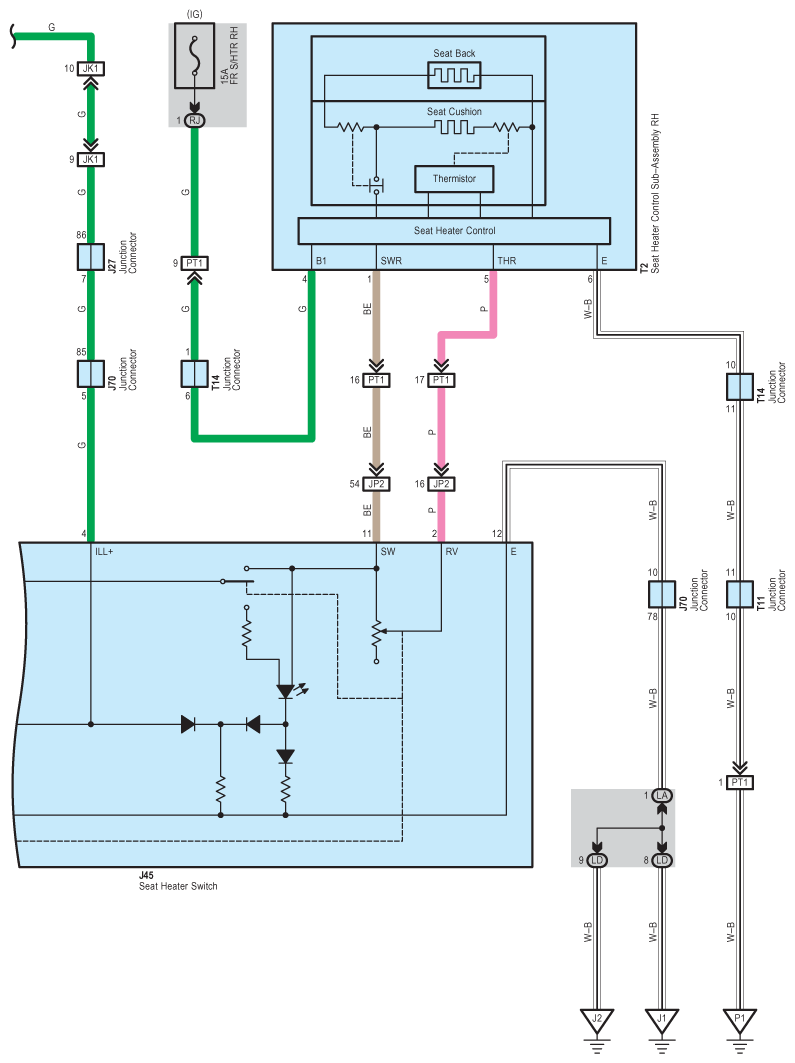

Fig 4: Climate Control Seat And Seat Heater - Wiring Diagram (4 Of 4)
G08938870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
