System Diagram

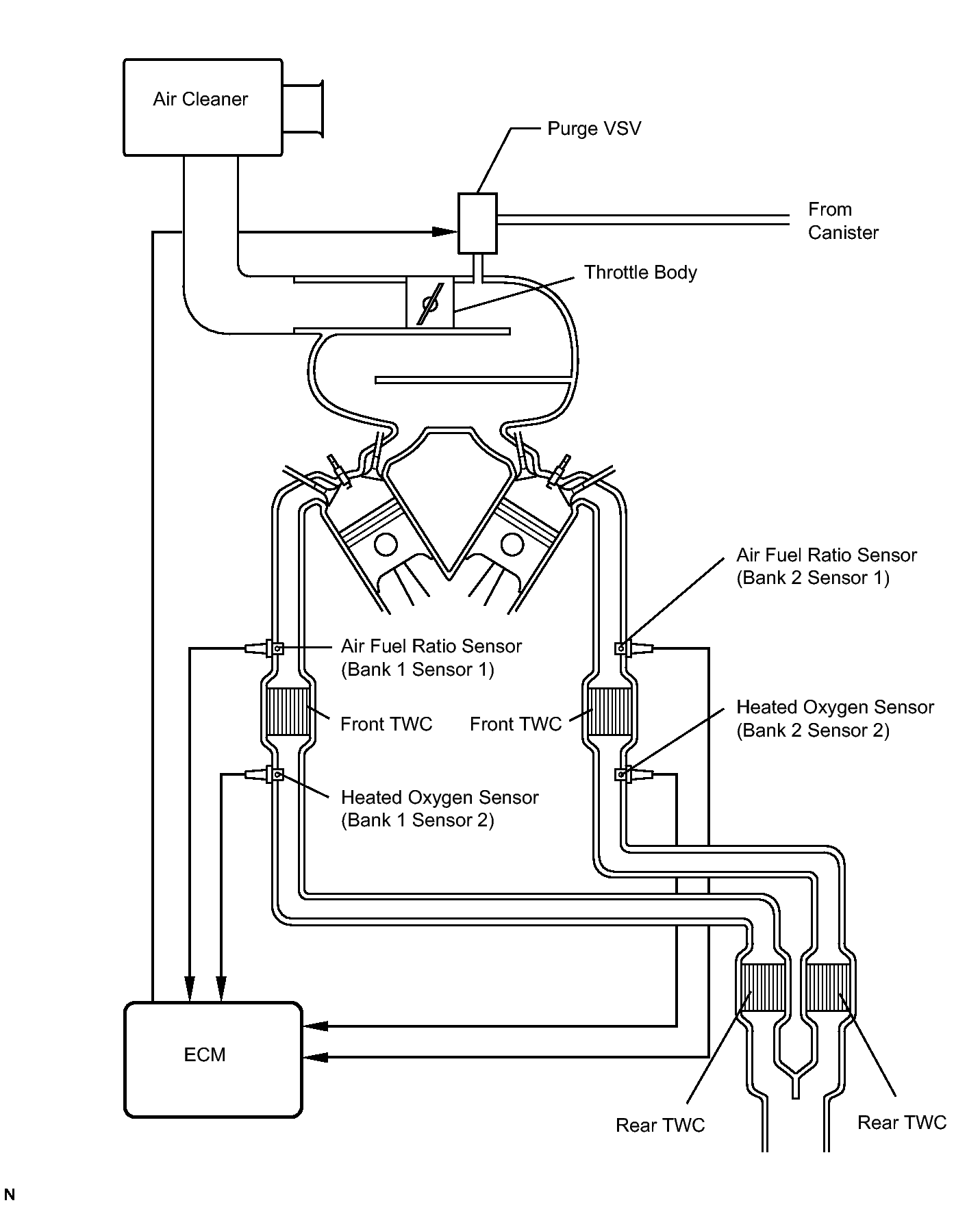

  1. EMISSION CONTROL SYSTEM DIAGRAM
    Fig 1: Emission Control System Diagram
    GTY139403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

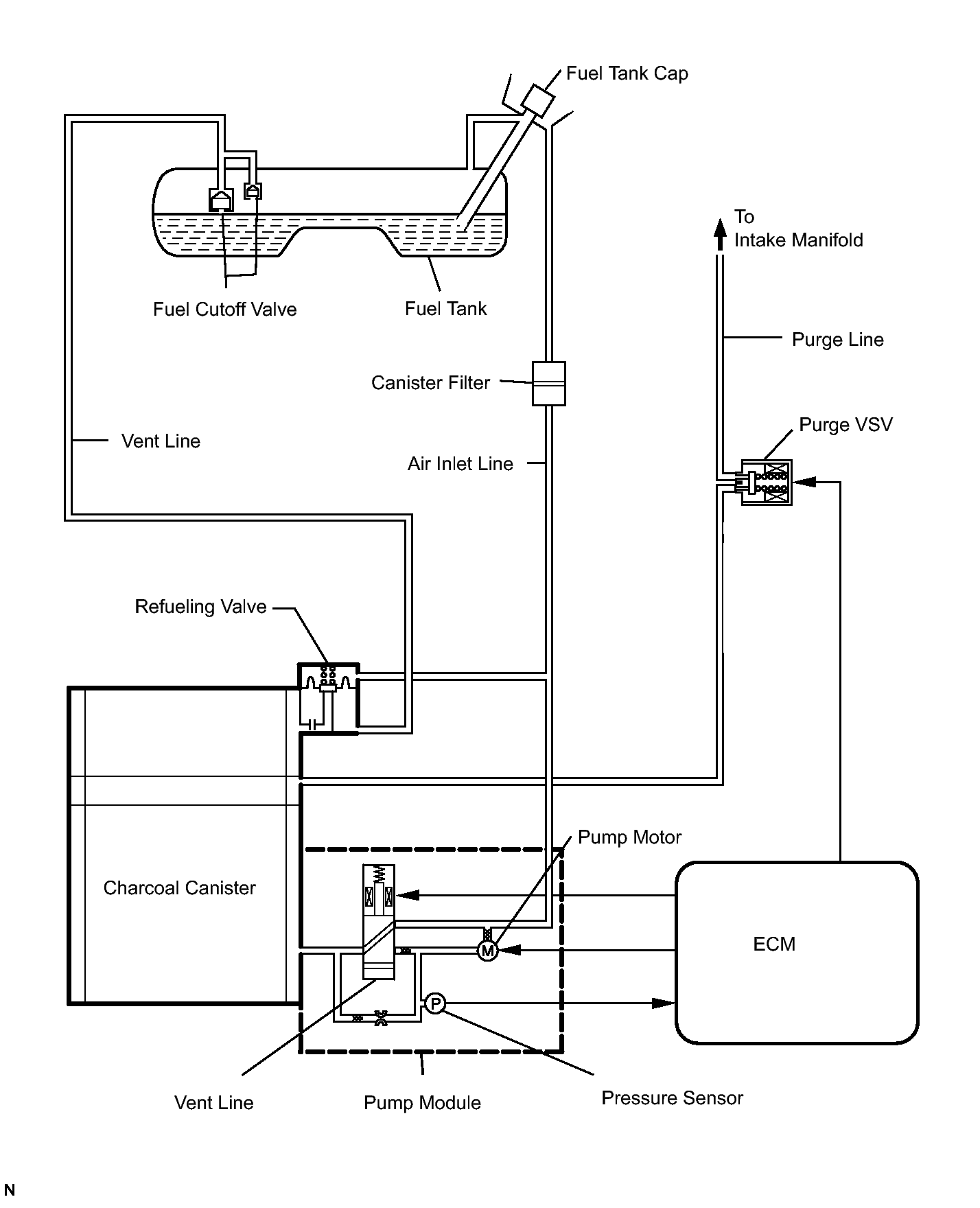

  2. EVAP CONTROL SYSTEM DIAGRAM
    Fig 2: EVAP Control System Diagram
    GTY126224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

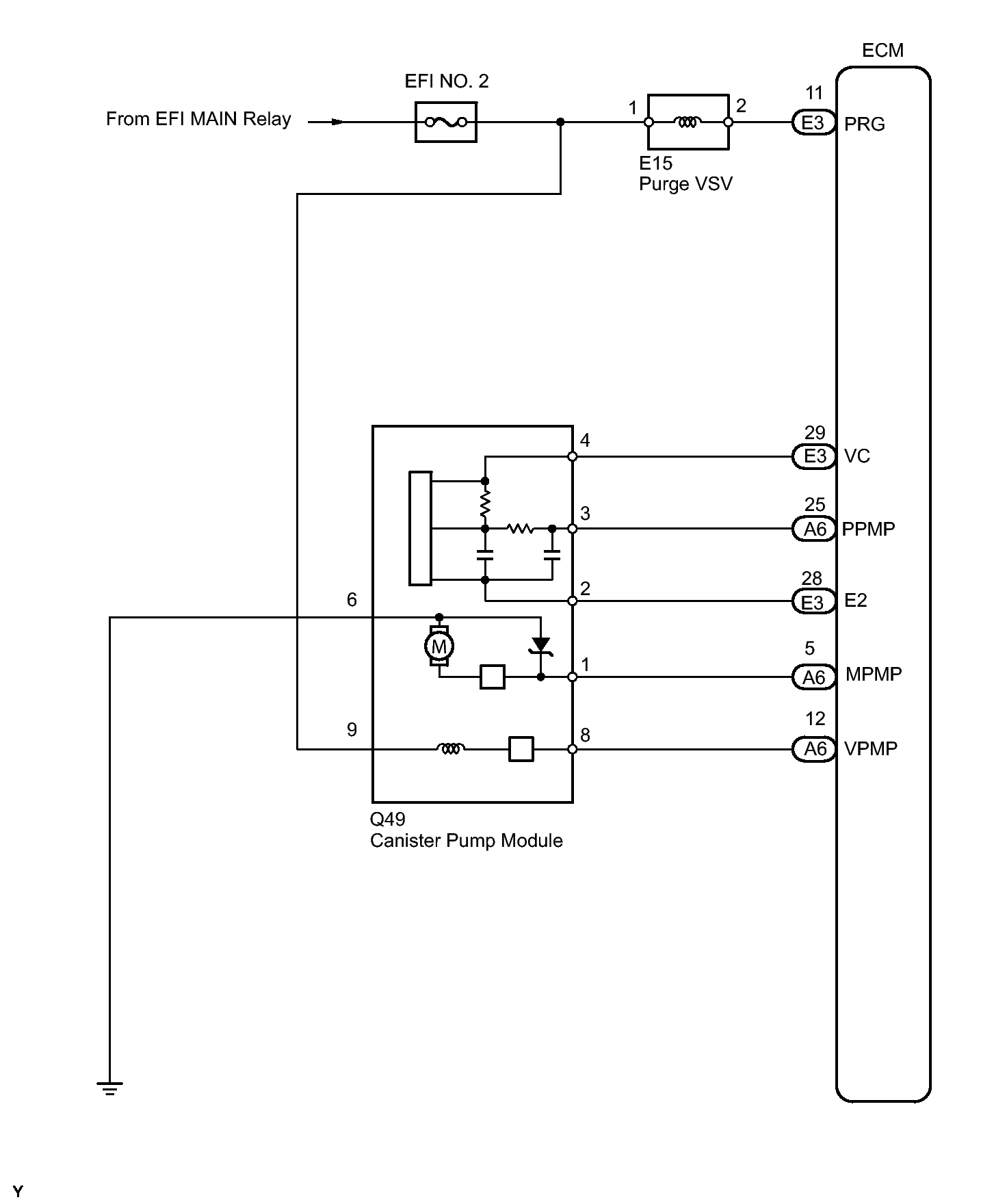

  3. EVAP SYSTEM WIRING DIAGRAM
    Fig 3: EVAP System Wiring Diagram
    GTY130804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

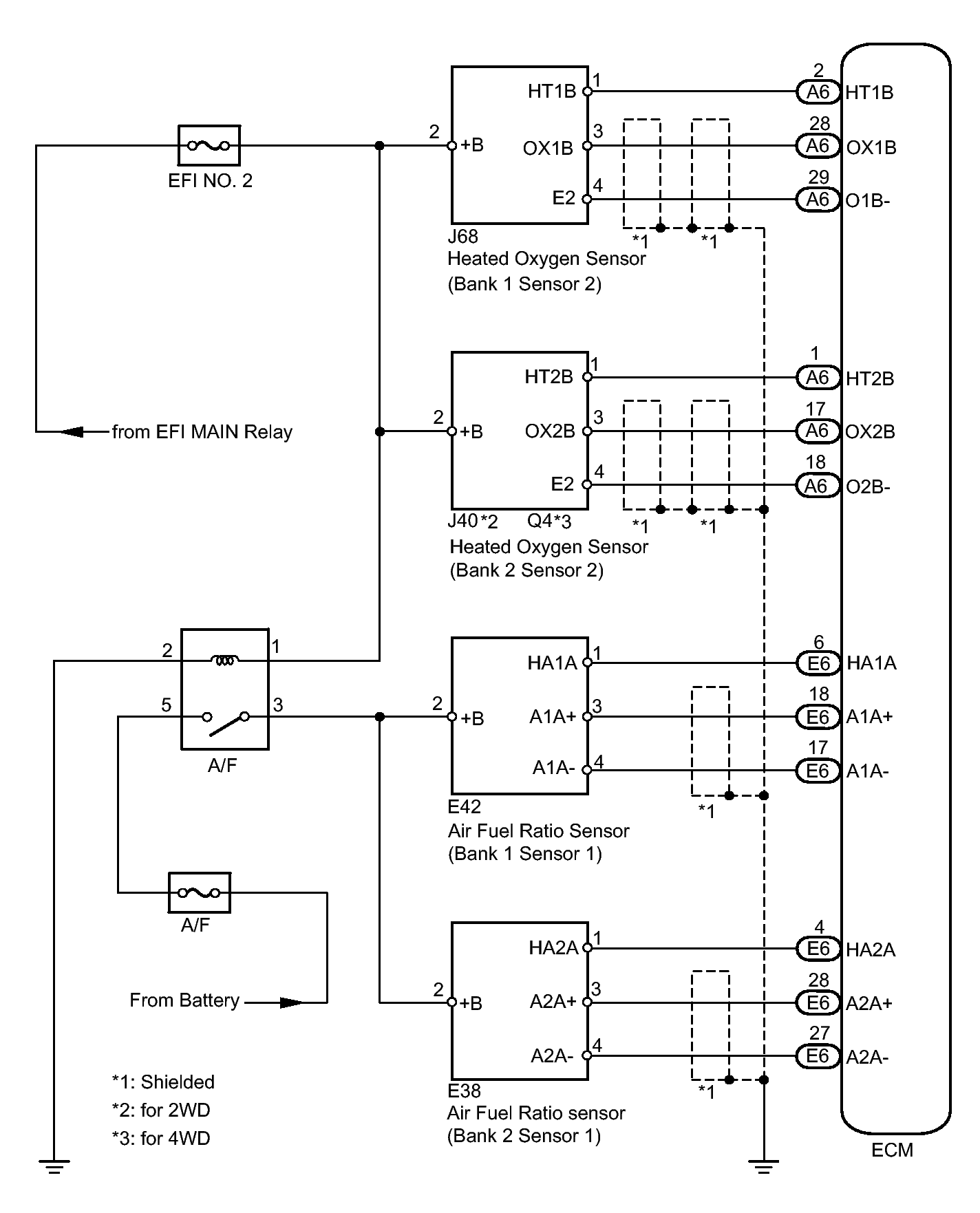

  4. EMISSION CONTROL SYSTEM WIRING DIAGRAM
    Fig 4: Emission Control System Wiring Diagram
    GTY393188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
