Fuel Sender Gauge Assembly: Inspection: Inspection
- INSPECT FUEL SENDER GAUGE ASSEMBLY
- Disconnect the fuel sender gauge connector.

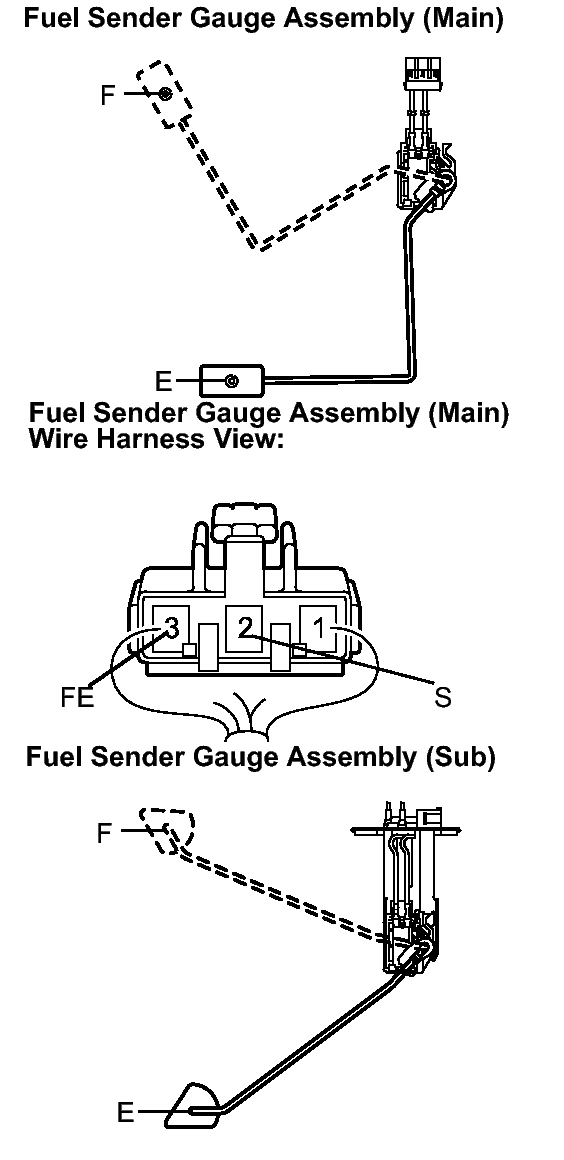

- Inspect the fuel sender gauge assembly (main).
- Remove the fuel sender gauge assembly (main).
- Check that the float moves smoothly between F and E.
- Measure the resistance between the terminals 2 (S) and 3 (FE) of connector according to the value(s) in the table below.
Standard resistance
Main
Float Level Resistance (Ω) F 6.5 to 8.5 Between E and F 6.5 to 242.6 (Gradually changes) E 237.6 to 242.6
- Inspect the fuel sender gauge assembly (sub).
- Remove the fuel sender gauge assembly (sub).
- Check that the float moves smoothly between F and E.
- Measure the resistance between the terminals 1 (FS) and 2 (E) according to the value(s) in the table below.
Standard resistance
Sub
Float Level Resistance (Ω) F 6.5 to 8.5 Between E and F 6.5 to 171.9 (Gradually changes) E 167.9 to 171.9 HINT:
If the value is not as specified, replace the fuel sender gauge assembly.
