Seat Heater (w/o Climate Control Seat): Notes

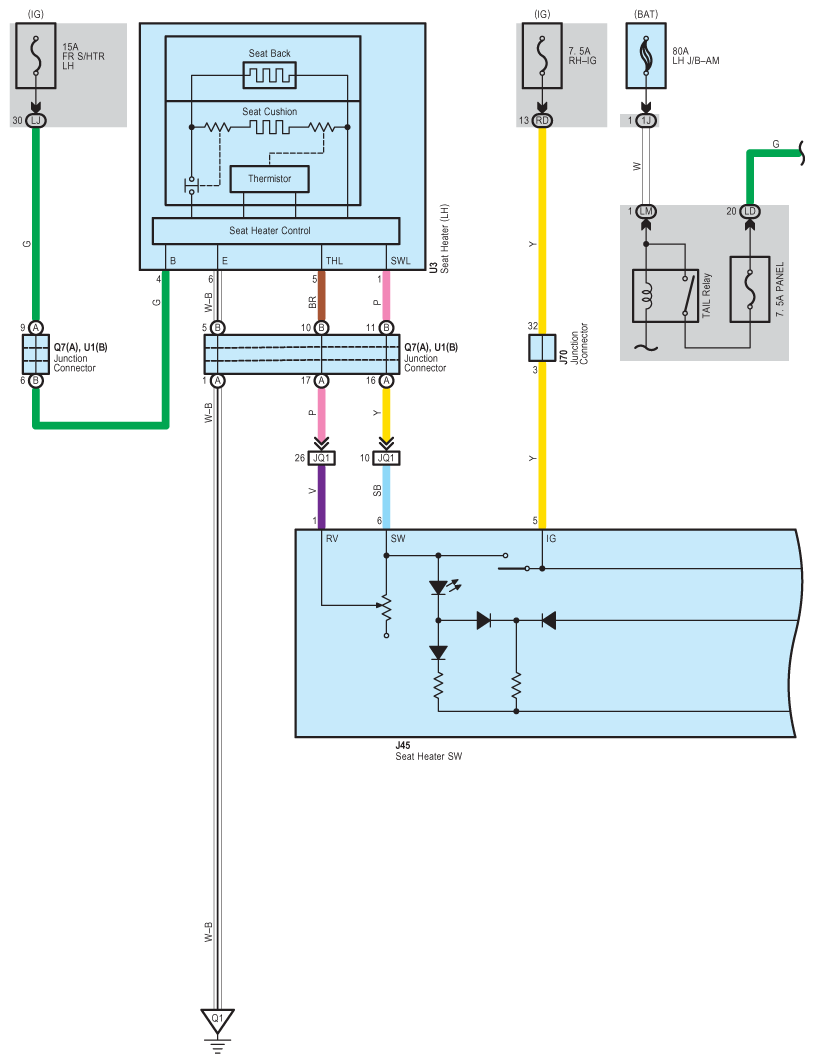

Fig 1: Seat Heater (W/O Climate Control Seat) - Wiring Diagram (1 Of 2)
G08935627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

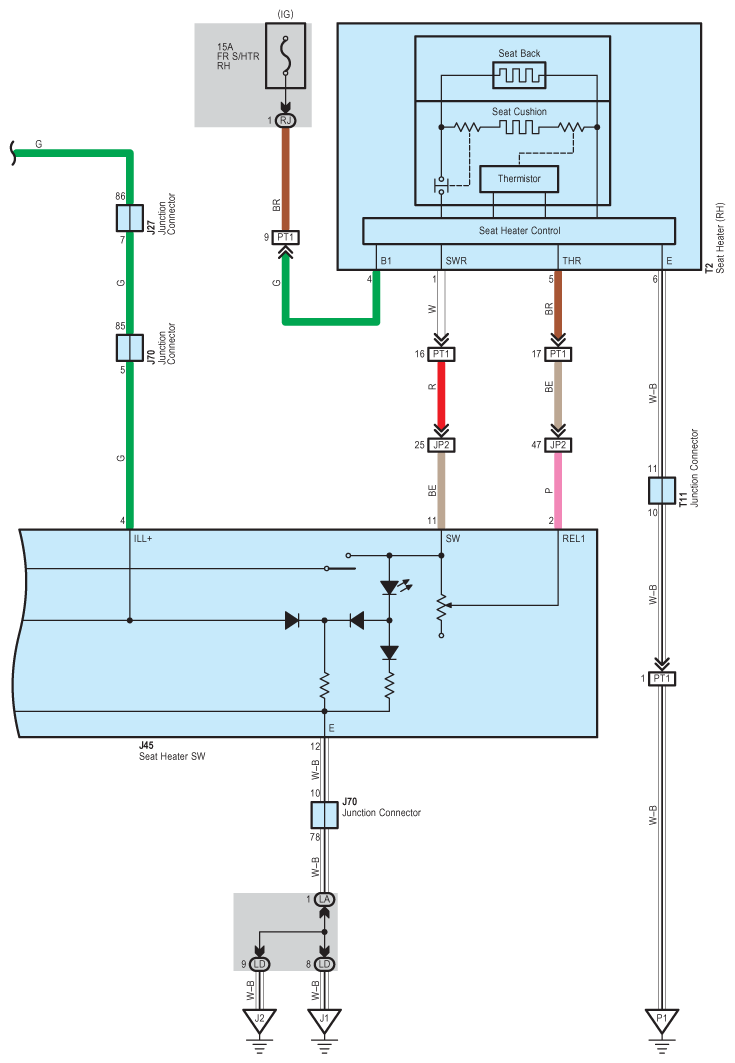

Fig 2: Seat Heater (W/O Climate Control Seat) - Wiring Diagram (2 Of 2)
G08935628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
