Outer Rear View Mirror: Reassembly: Reassembly

  1. INSTALL OUTER MIRROR ACTUATOR ASSEMBLY
    1. Connect the connector and install the outer mirror light assembly.

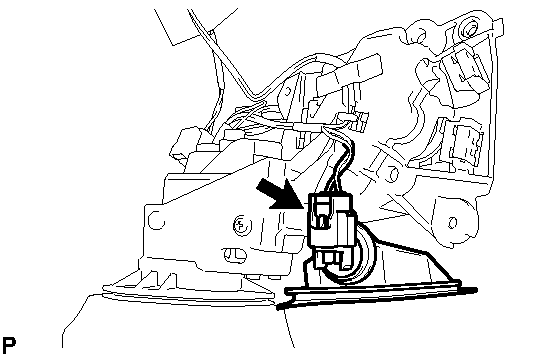

      Fig 1: Identifying Outer Mirror Light Assembly And Connector
      GTY130629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY  . Refer to INSTALLATION - Step 1
  3. INSTALL OUTER REAR VIEW MIRROR GLASS  See step  2
