Parts Location: Illustration

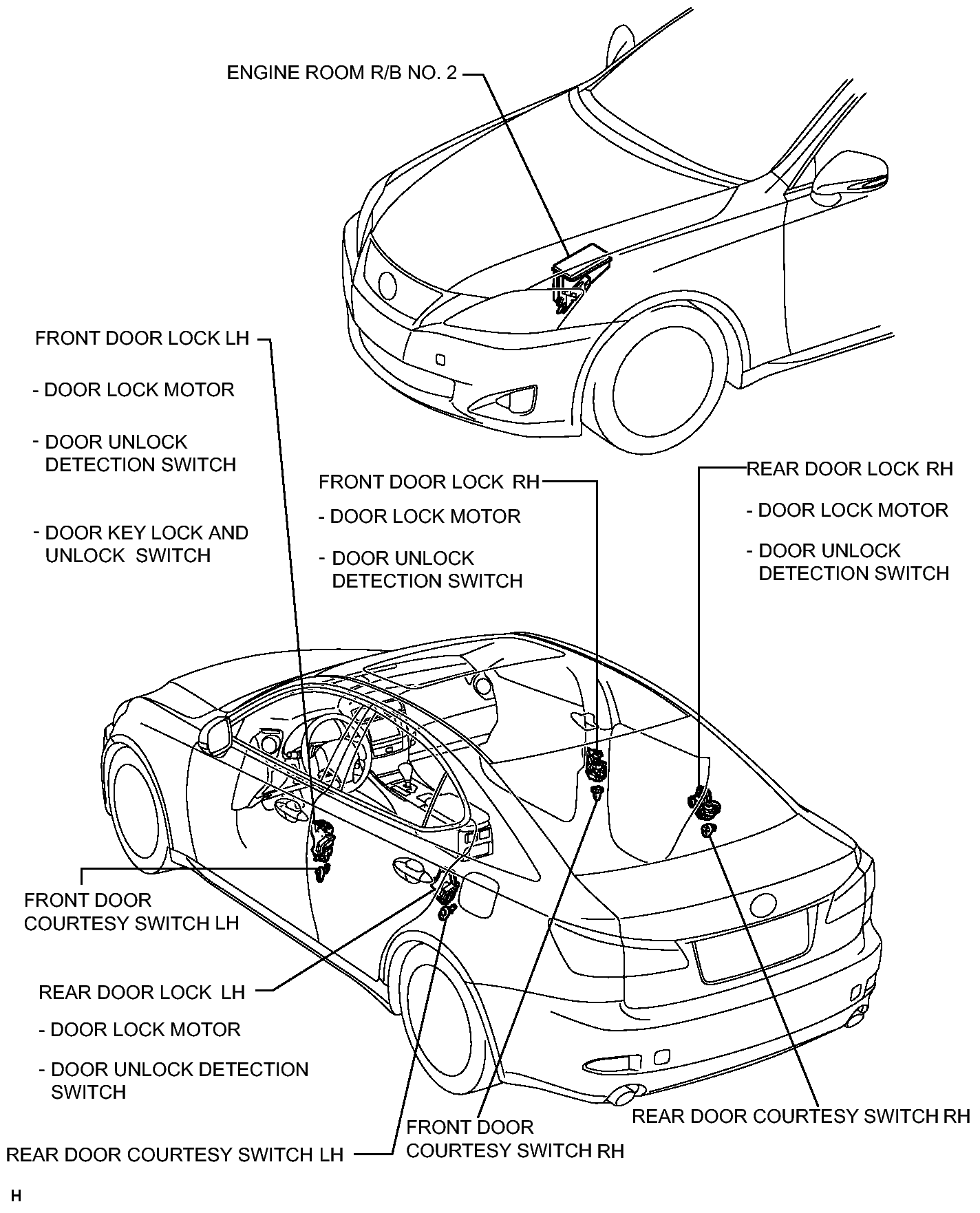

Fig 1: Identifying Power Door Lock Control System Components Location (1 Of 2)
GTY121474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

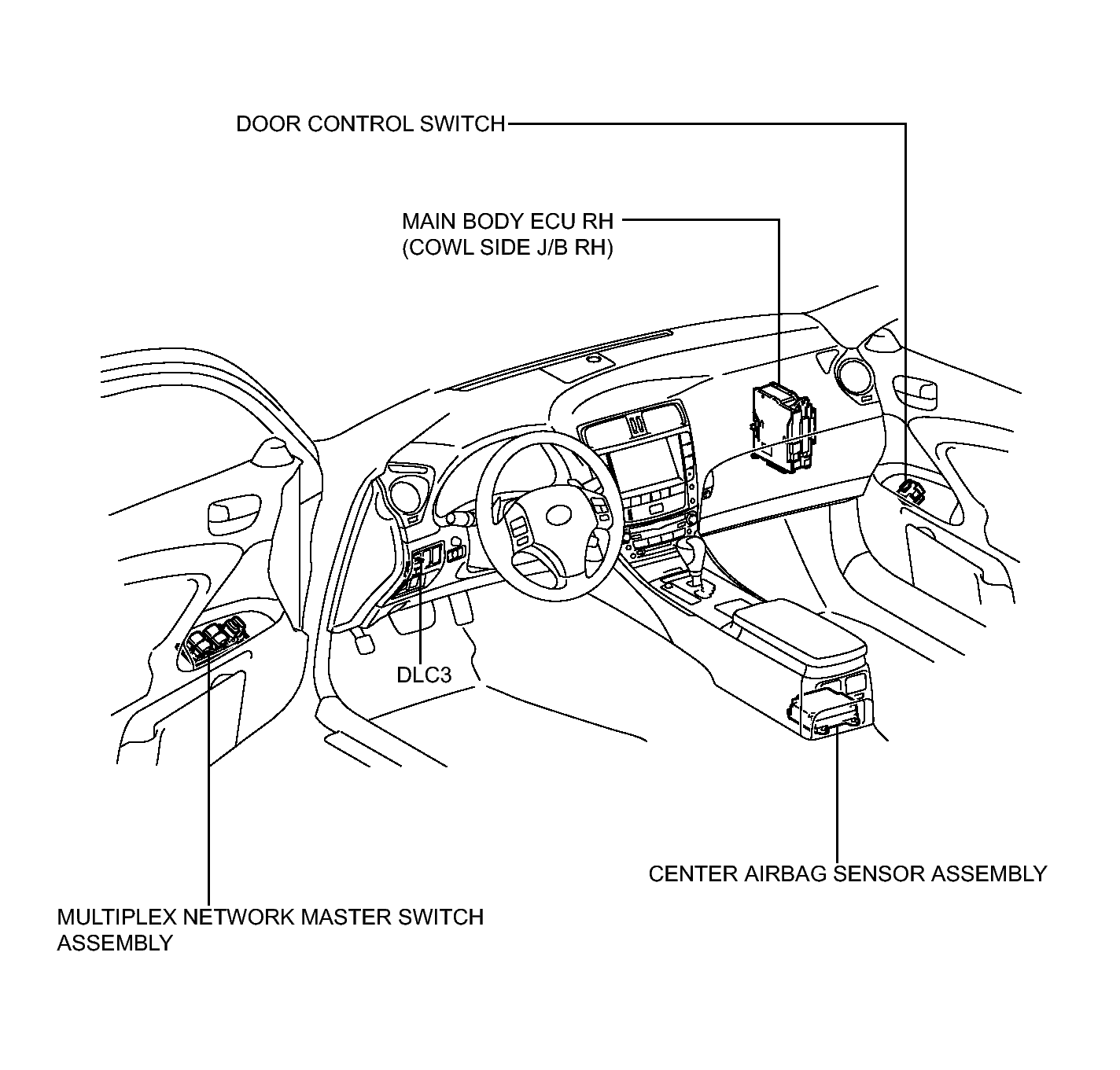

Fig 1: Locating Power Door Lock Control System Components Location (2 Of 2)
GTY142108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
