Clutch Switch: Components: Illustration

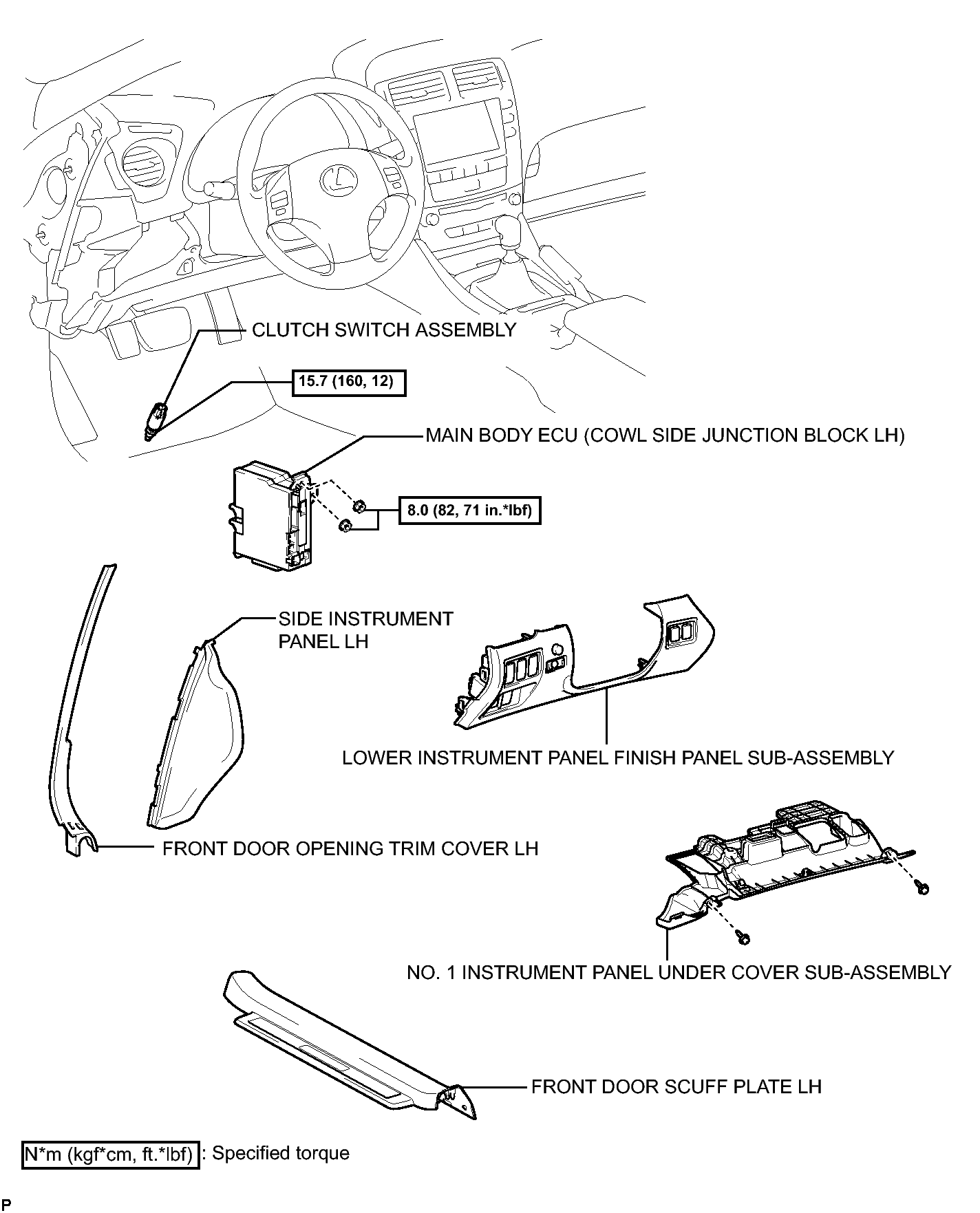

Fig 1: Identifying Clutch Switch Replacement Components With Torque Specifications

GTY150956

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
