Parts Location: Illustration

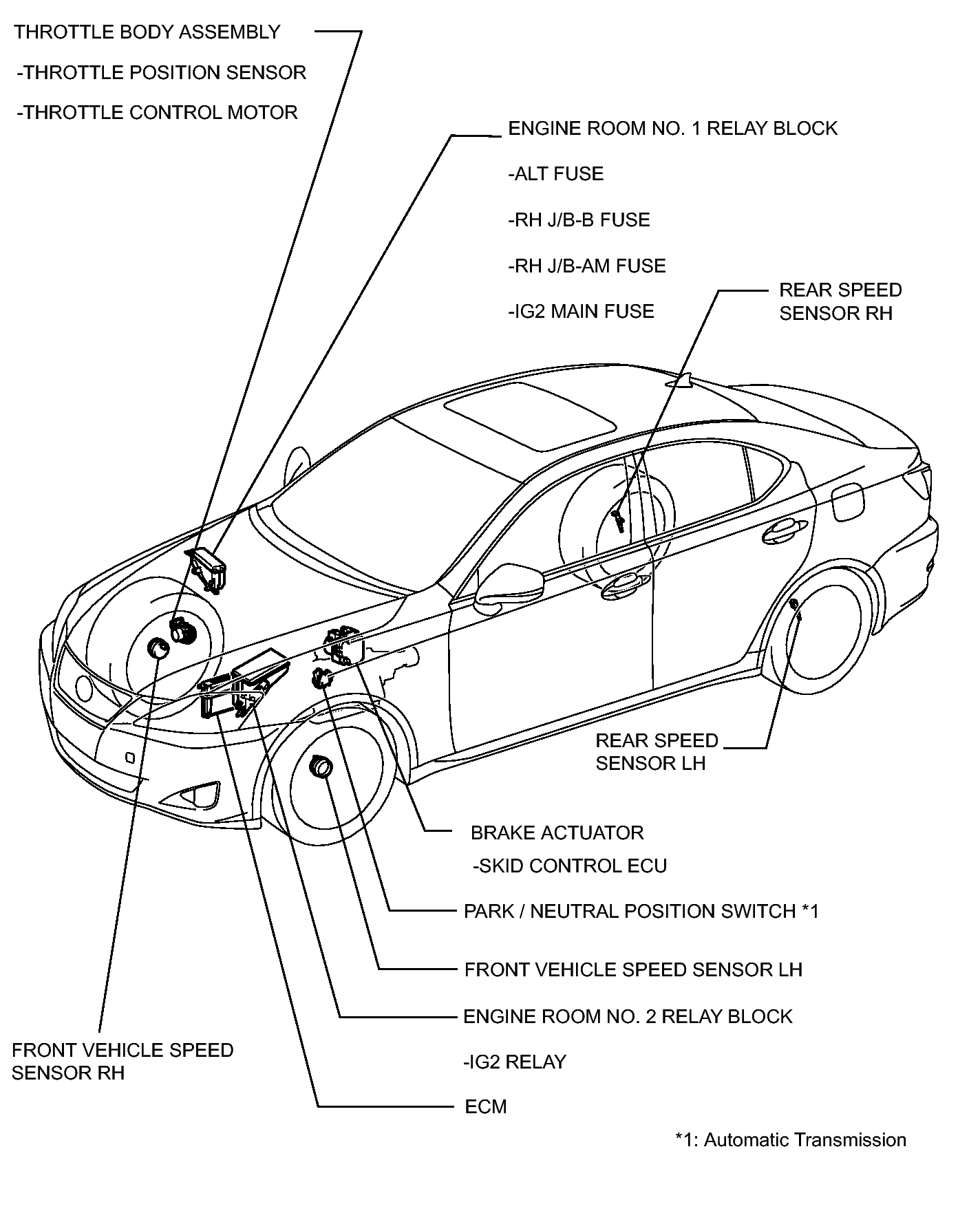

Fig 1: Identifying Cruise Control Components Location (1 Of 2)
GTY393502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

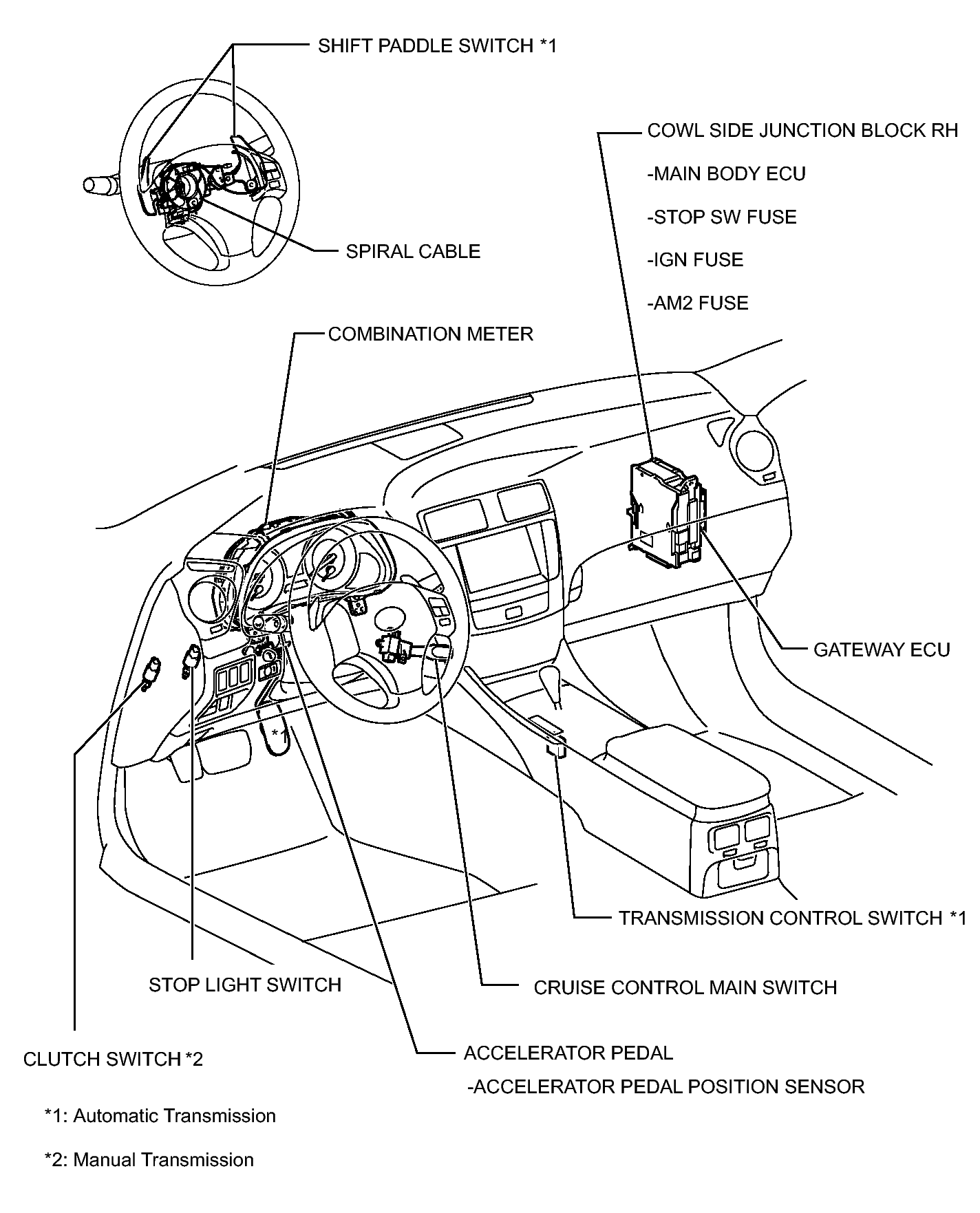

Fig 1: Identifying Cruise Control Components Location (2 Of 2)
GTY359098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
