Clutch Switch Circuit: Procedure

1. Disconnect the A5 connector from the ECM.

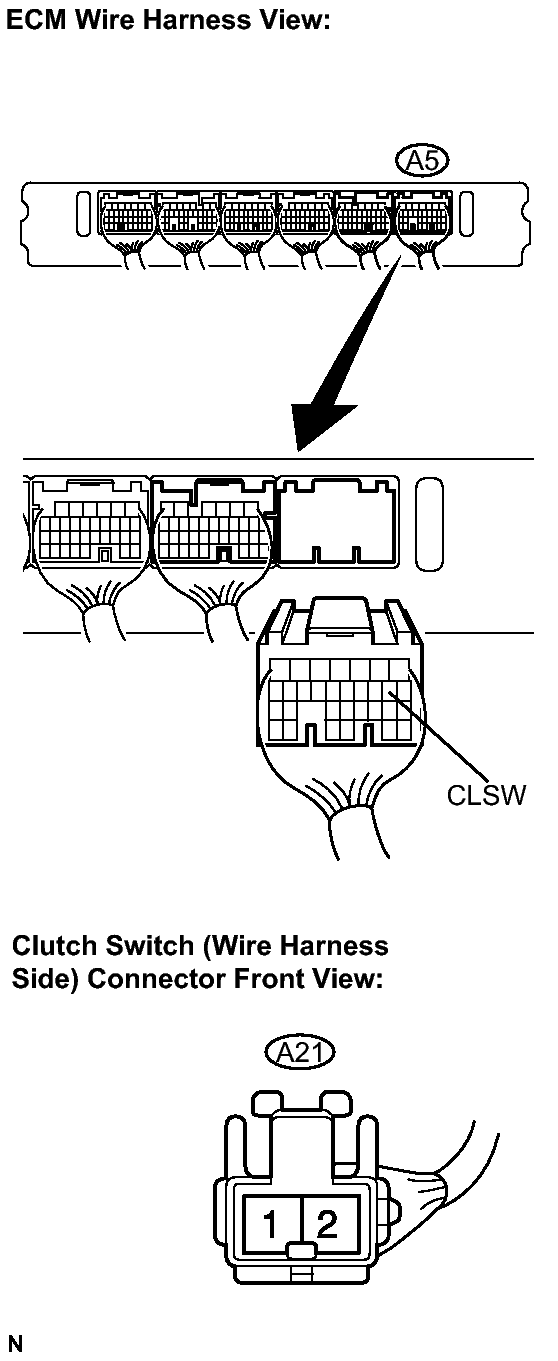

   Fig 1: Identifying A5 Connector From ECM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the engine switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   A5-9 (CLSW) - Body ground	Clutch pedal depressed	Below 1 V
   	Clutch pedal released	10 to 14 V

NG → See step   2

OK → See step   4

1. Turn the engine switch off.
   Fig 2: Inspecting Clutch Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the A21 connector from the clutch switch.
3. Remove the clutch switch.
4. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   1 - 2	Switch pin free (Clutch pedal depressed)	10 kΩ or higher
   	Switch pin pushed in (Clutch pedal released)	Below 1 Ω

NG → See step   5

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.
   Fig 3: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Condition	Specified Condition
   A5-9 (CLSW) - A21-2	Always	Below 1 Ω
   A5-9 (CLSW) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - CLUTCH SWITCH)
