Climate Control Seat and Seat Heater: Notes

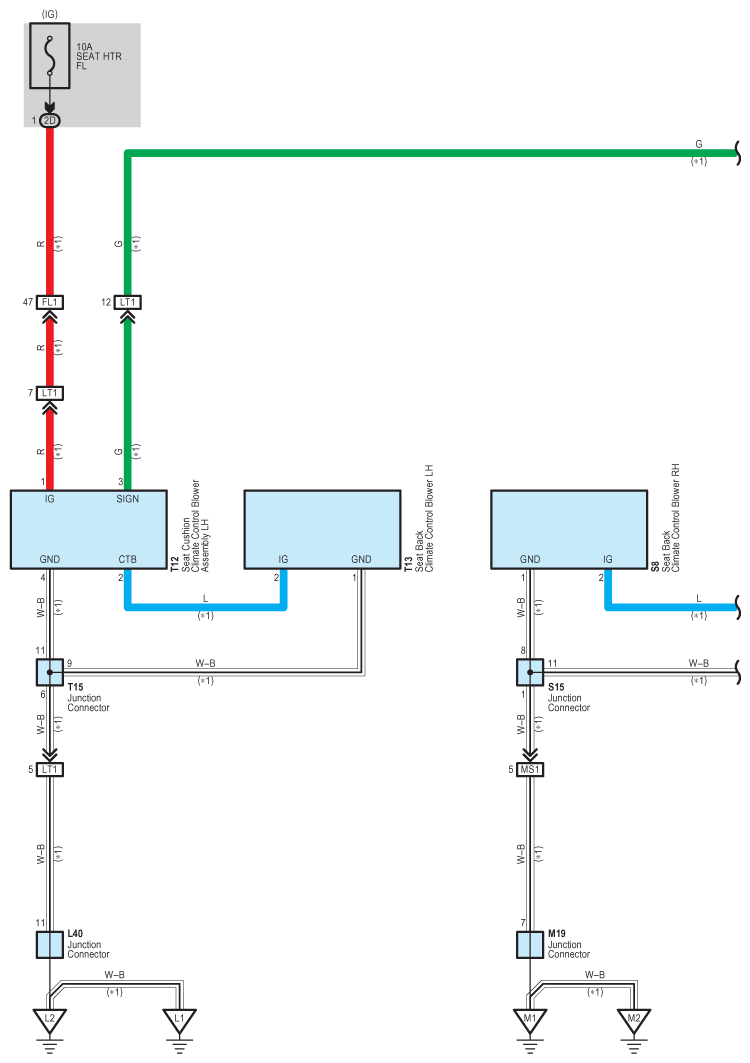

Fig 1: Climate Control Seat And Seat Heater - Wiring Diagram (1 Of 4)
G08911586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

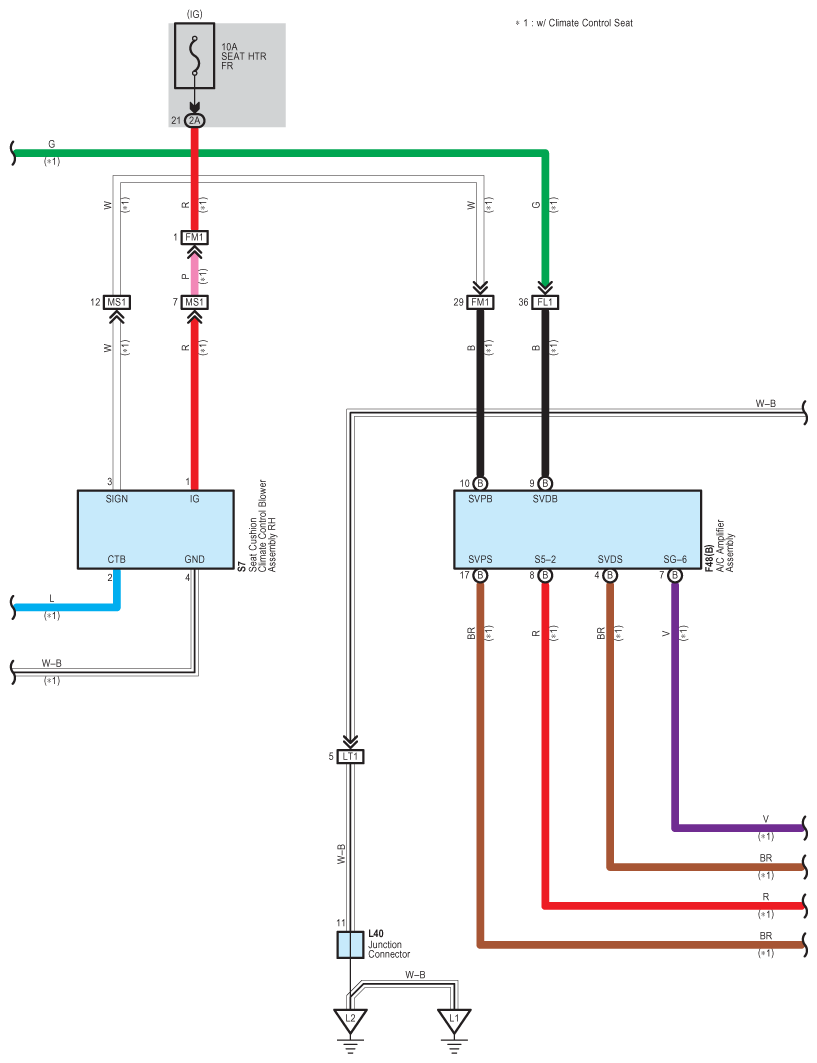

Fig 2: Climate Control Seat And Seat Heater - Wiring Diagram (2 Of 4)
G08911587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

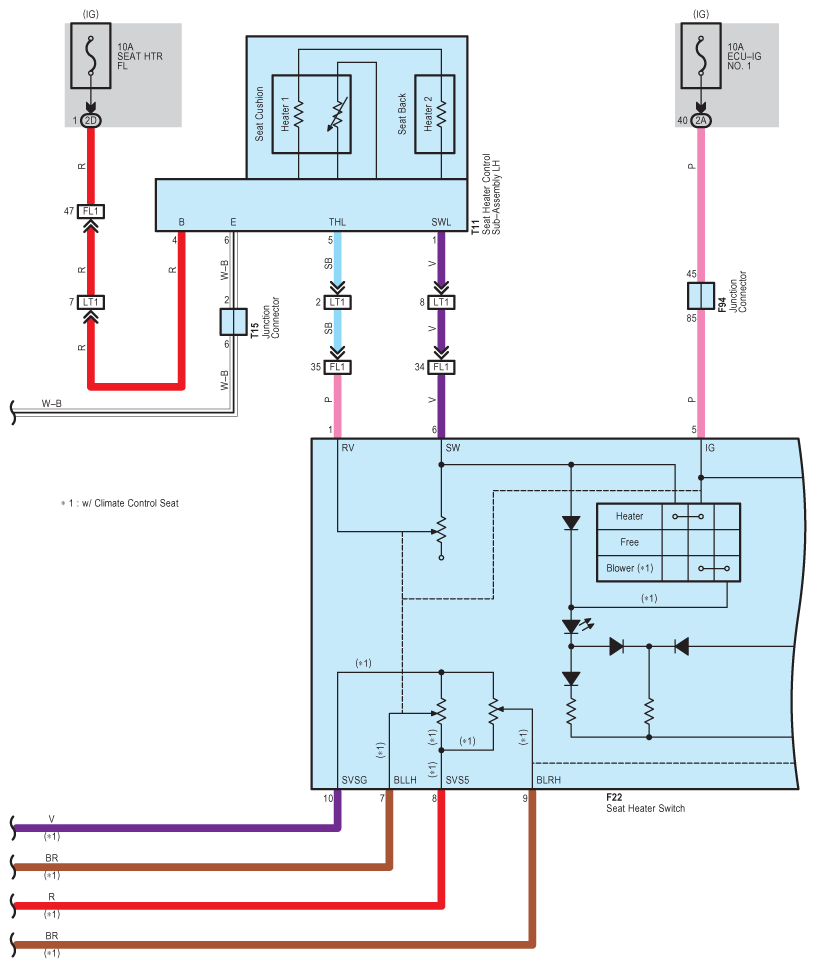

Fig 3: Climate Control Seat And Seat Heater - Wiring Diagram (3 Of 4)
G08911588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

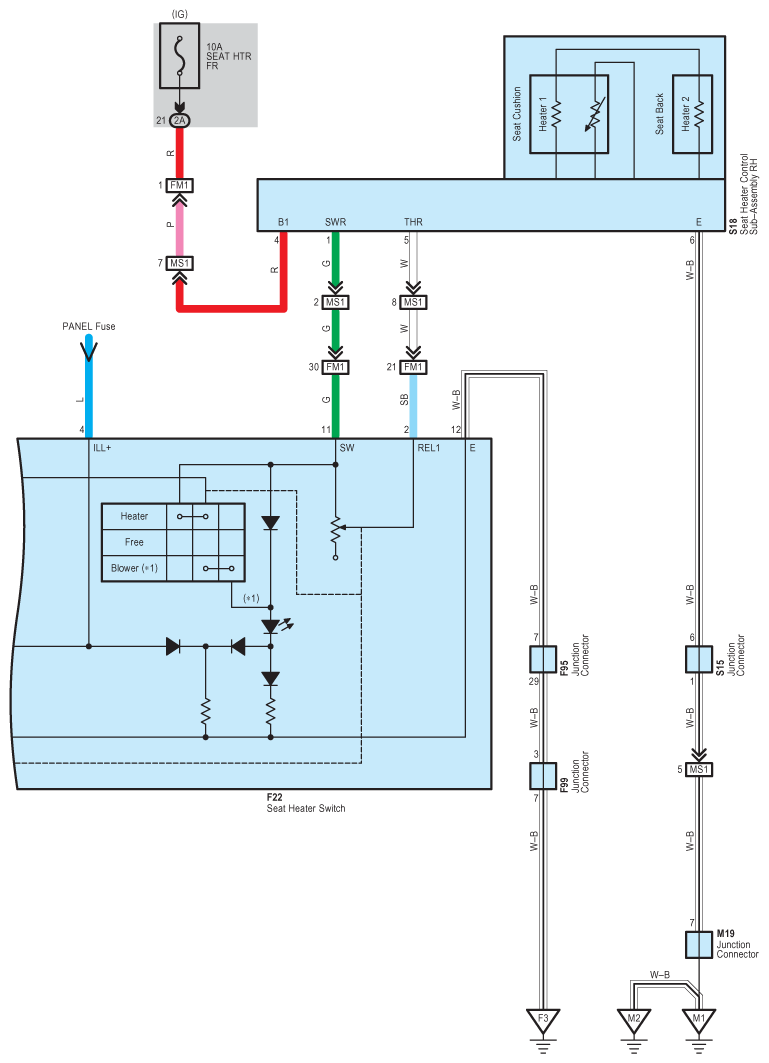

Fig 4: Climate Control Seat And Seat Heater - Wiring Diagram (4 Of 4)
G08911589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
