Parts Location: Illustration

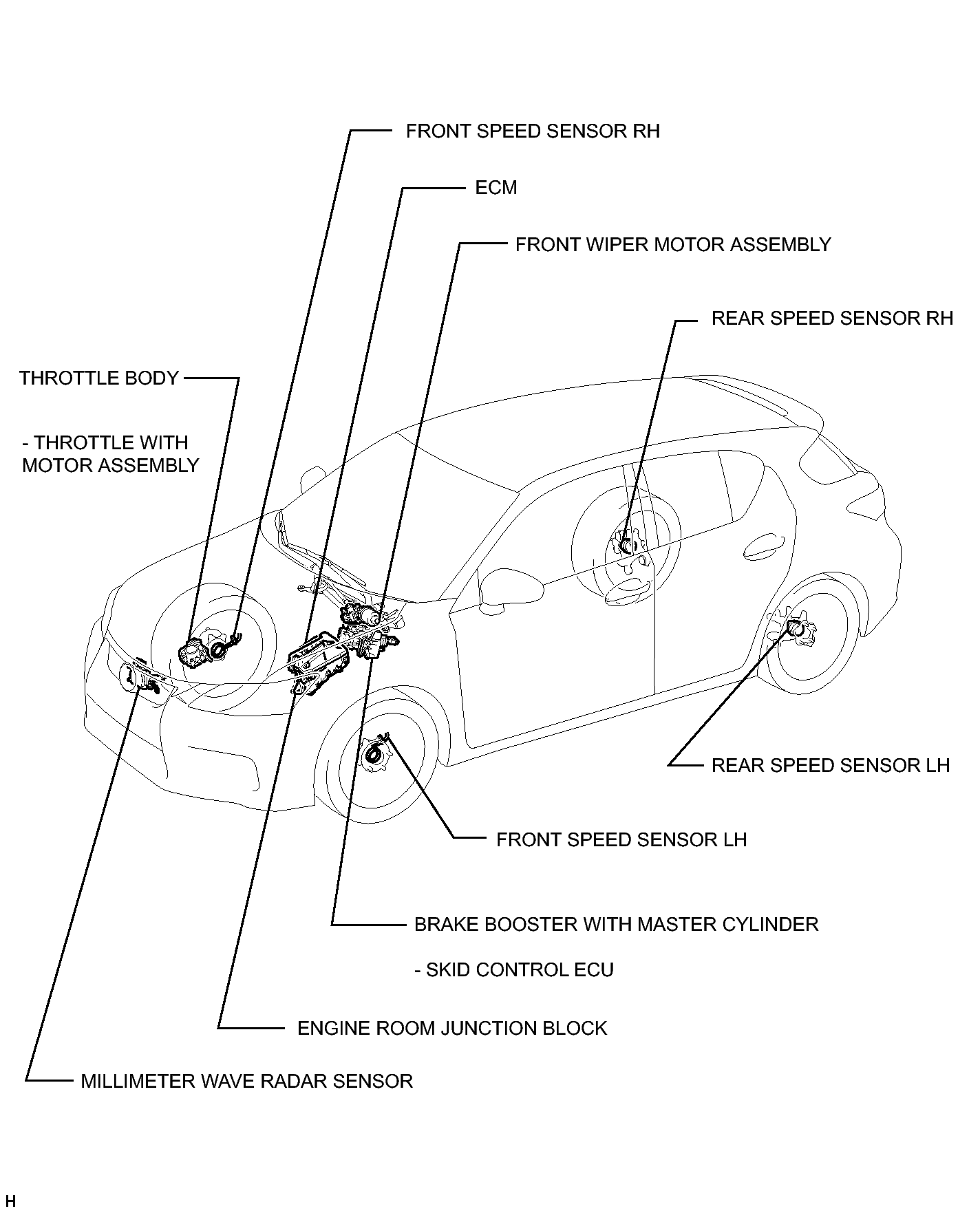

Fig 1: Identifying Dynamic Radar Cruise Control System Components Location
GTY358284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

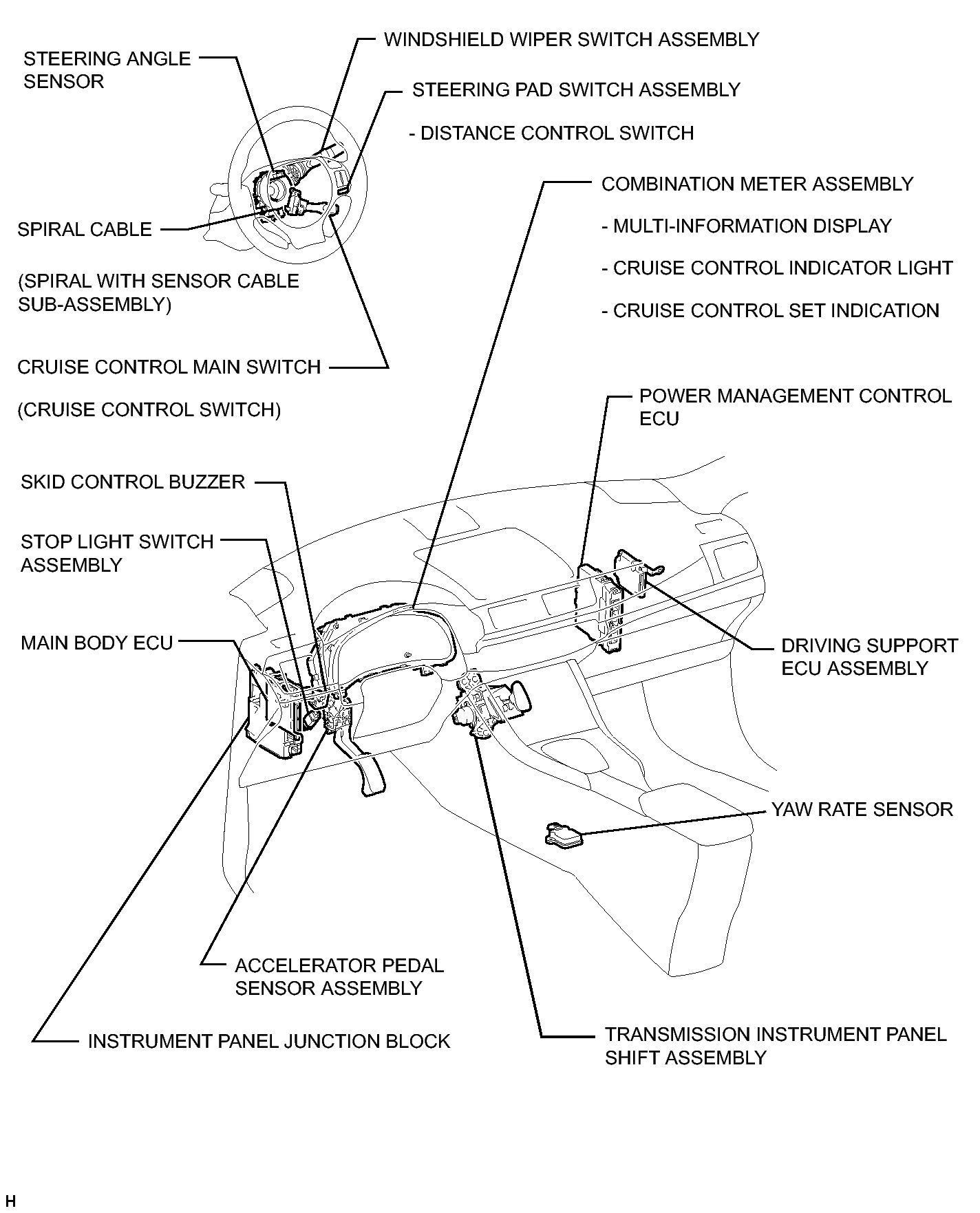

Fig 1: Identifying Dynamic Radar Cruise Control System Components Location
GTY357869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
