System Diagram

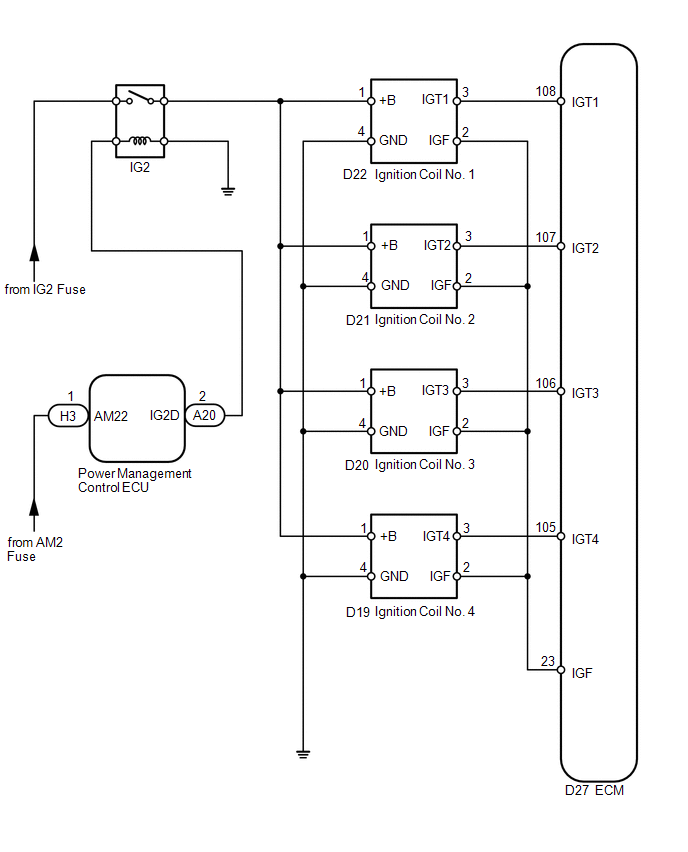

Fig 1: Identifying Ignition System Wiring Diagram

GTY353913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
