Security Indicator Light Assembly: Components: Illustration

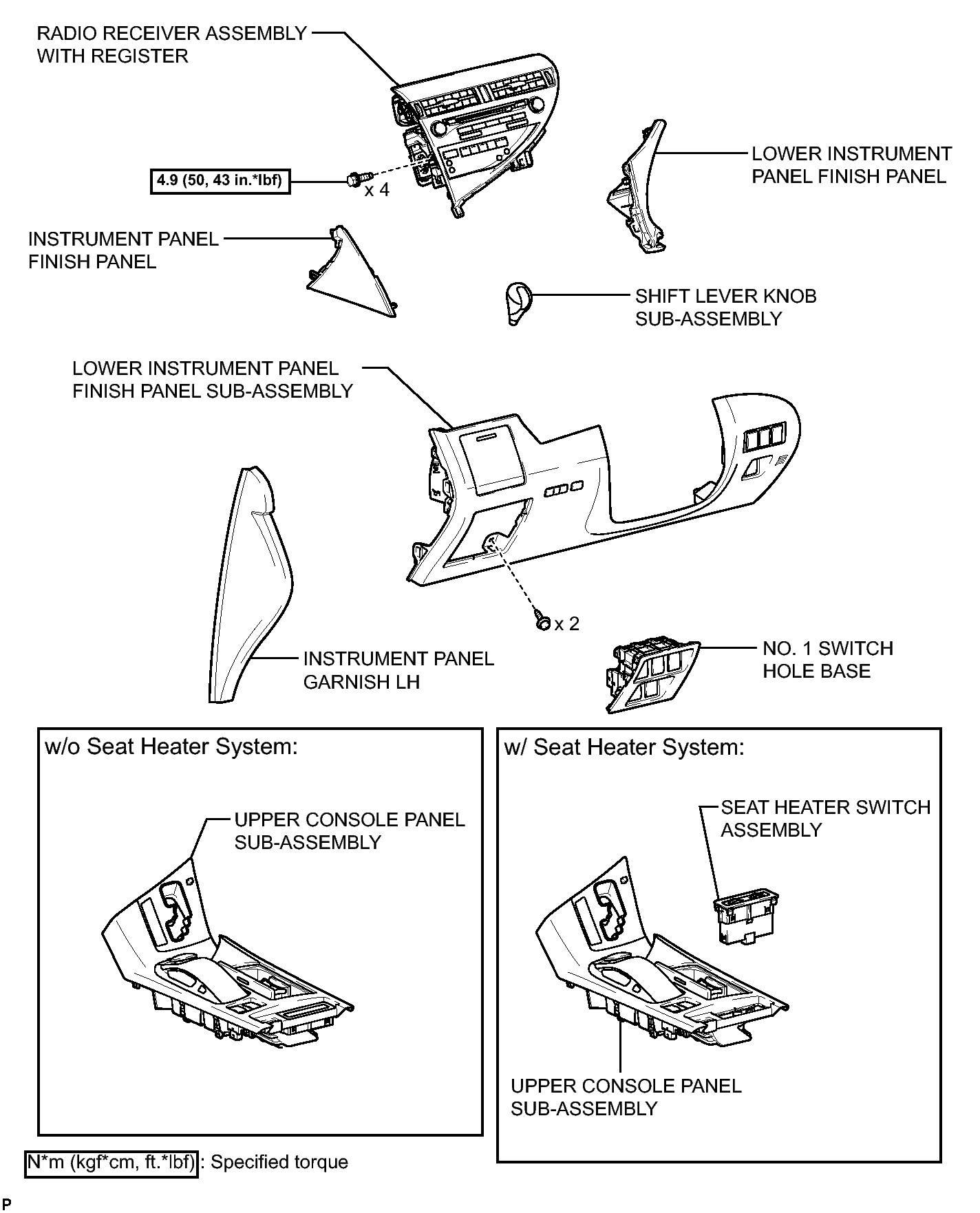

Fig 1: Identifying Security Indicator Light Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY266322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

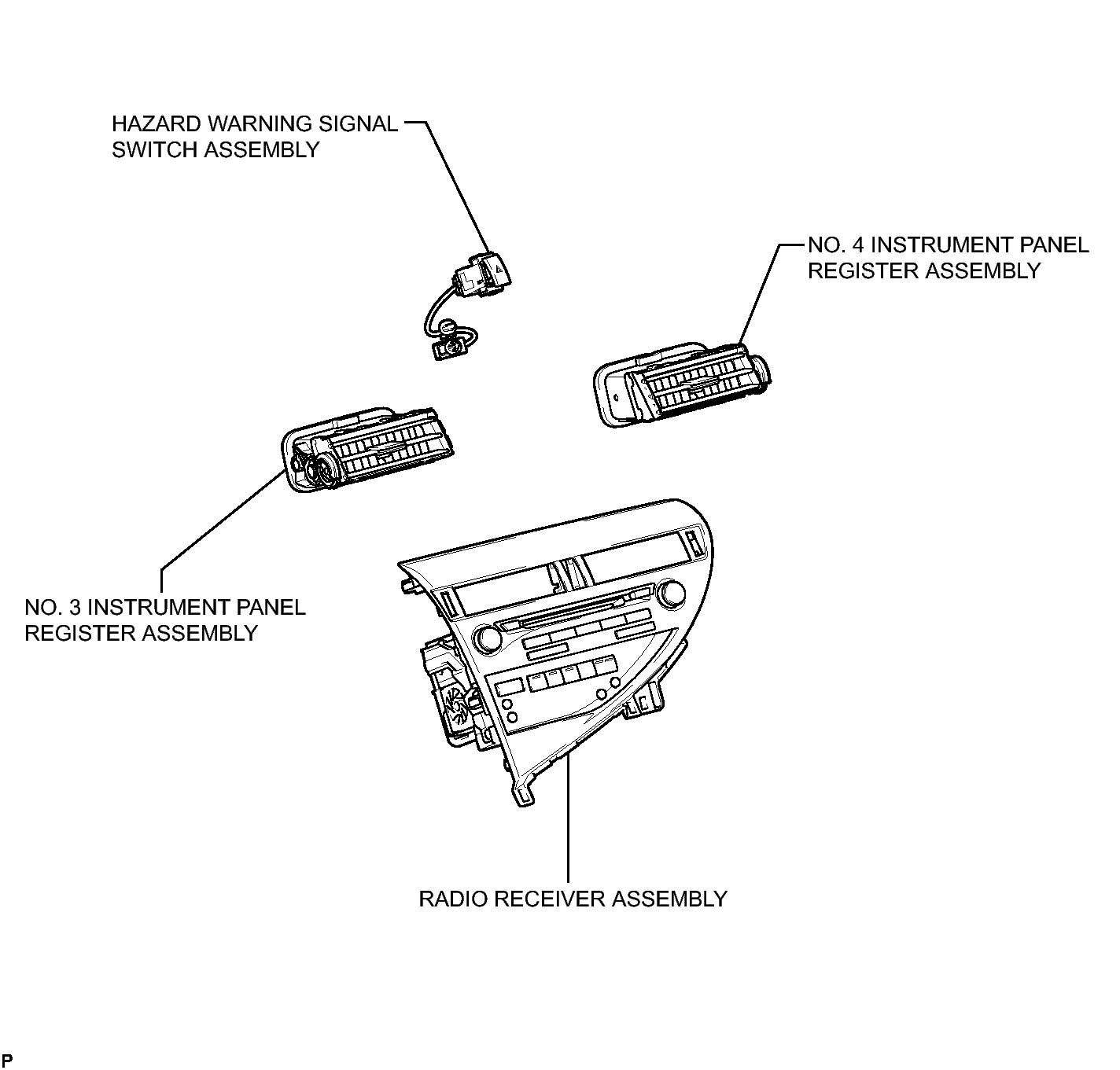

Fig 1: Identifying Security Indicator Light Assembly Replacement Components (2 Of 2)
GTY271708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
